概览

描述

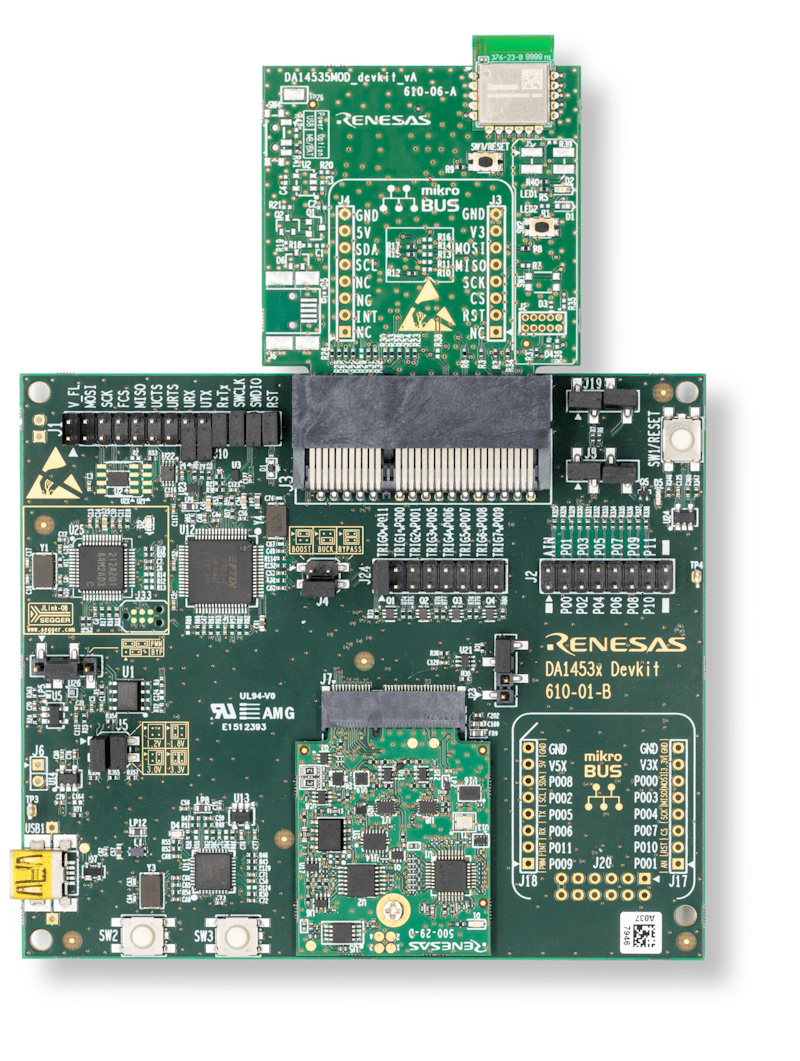

DA14535MOD-00DEVKT-P Bluetooth® Low Energy 开发套件专业版适用于 DA14535 SmartBond TINY™ 模块,包括主板、子板、3 个模块样品和电缆。 该套件主要用于软应用程序开发和功耗测量。

DA14535 子板集成了半导体 DA14535 SmartBond TINY 模块。 DA14535 SmartBond TINY 模块子板能够安装 MikroBUS™ 模块。 这款子板旨为用户提供以下功能:

  • 通过 UART 或 JTAG 访问 DA14535 SmartBond TINY 模块
  • 连接 MikroBUS 模块
  • 用户访问通用 LED
  • 用户访问通用按钮
  • 复位按钮
  • 所有输出信号的测试点
  • 独立运行

DA14535 SmartBond TINY 模块基于全球最小、功耗最低的 Bluetooth 5.3 片上系统,将 DA14535 SoC 优势引入集成式模块。 只需一个电源和一个印刷电路板即可构建 Bluetooth 应用程序。

特性

  • 主板、DA14535MOD 子板、3 个模块样品、USB 电缆和快速开始指南
  • 集成式功率测量模块
  • 嵌入式印刷天线
  • 射频端口输出(不含连接器)
  • 支持纽扣电池(不含电池支架)
  • MikroBUS 或 Pmod™ 接头
  • SEGGER J-Link 调试器
  • 全球认证模块
  • 完全符合 Bluetooth v5.3 标准

应用

  • (任何)产品均可升级为新增 Bluetooth LE(实现智能手机应用程序控制),“即插即用”,快速简单
  • 一次性用品
  • 信标
  • 感应标签和跟踪器
  • 无线传感器节点
  • 健康可穿戴设备
  • 消费者健康
  • 智能手表
  • 人机接口设备 (HID)
    • 触控笔
    • 键盘
    • 鼠标设备
    • 触控盘
  • 玩具

文档

类型 文档标题 日期
手册 - 开发工具 PDF 2.82 MB
原理图 PDF 174 KB
原理图 PDF 77 KB
