DA16200 Ultra-Low Power Wi-Fi Modules Development Kit
The DA16200 development kit is the most ideal way to quickly and easily get started developing applications and products using ultra-low power Wi-Fi.
If you are...
概览
简介
DA16200 modules are the perfect complement to the DA16200 ultra-low power Wi-Fi SoC. They deliver the same long battery life and low power consumption but in a convenient form factor. The modules are complete with all required components and are regulatory certified by the FCC, IC, CE and other regulatory bodies.
The fully integrated module consists of the DA16200 SoC, 4MB flash memory, RF components including crystal oscillator, RF lumped filter, and either a chip antenna or a connector for an external antenna.
The module has 37 pins including GPIOs, JTAG, RTC control, UART, power input, and the 32.768kHz crystal.
图像
On Board Chip Antenna
13.8mm x 22.1mm x 3.3mm
DA16200MOD-AAC4WA32
图像

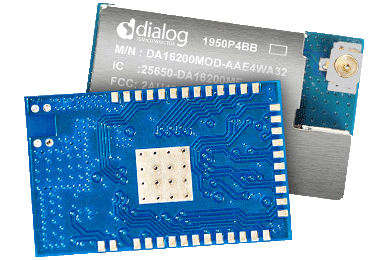

External Antenna Connector (u.FL)
13.8mm x 22.1mm x 3.3mm
DA16200MOD-AAE4WA32
Benefits
- Breakthrough VirtualZero™ technology
- Virtually no power consumption in sleep state
- Enables year-plus battery life
- Ultra-low power sensor wake-up
- Industry leading output power and Rx sensitivity for max range
- 802.11b/g/n radio PHY, BB/MAC, PA, LNA with on chip SRAM
- Up to 72Mbps, MCS0-7
- SoC runs full OS and TCP/IP stack
- Automatically find and configure new devices with smartphone app
- Comprehensive networking software stack
- Secure boot
- Secure debug
- Secure asset storage
- Hardware accelerated
- TLS
- Digital certificates
- Elliptic curve
- Enables field deployed device firmware updates
- UART, SPI, SDIO, ADC, I2C, PWM, I2S, GPIOs, JTAG and SWD
- Data logging, memory intensive applications
Wi-Fi AT Command Set
Access the industry-leading low power features of the DA16200/DA16600 family simply, quickly and without having to develop any complex software on the Wi-Fi side. To learn more, visit the DA16200 Wi-Fi AT Command Set page.
特性
- Ultra-low power
- Superior range
- Highly integrated SoC
- Full offload
- Simple setup and provisioning
- Complete software stack
- Leading security
- Over-the-Air (OTA) firmware updates
- Multiple I/Os
- eMMC/SD expanded memory
产品对比
应用
- Thermostats
- Door locks
- Security cameras
- Video door bells
- Temperature sensors
- Smoke detectors
- Other wireless sensors
- Garage door openers
- Pet trackers
- Asset trackers
- Home automation
- Commercial
- Industrial
- Residential
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| DA16200 Wi-Fi AT Command Set Simple and fast Wi-Fi implementation using a comprehensive suite of AT-Commands for the DA16200 Wi-Fi and DA16600 Wi-Fi/Bluetooth LE combo products.
|
IDE and Coding Tool | 瑞萨电子 |
1 item
|
||
样例程序
开发板与套件
DA16200 超低功耗 Wi-Fi 模块开发套件 Pro
使用 DA16200 低功耗 Wi-Fi 开发套件加速物联网开发。 基于 VirtualZero™ 的 DA16200 开发套件使开发物联网应用程序变得简单快捷。
如果您想要开发电池供电的物联网应用，DA16200 Wi-Fi 开发者套件能让您在几分钟内入门。 这款 Wi-Fi 开发套件非常完备，可让您全面了解和评估超低功耗...
可在云上实验室使用
使用我们基于 PC 的 GUI，无需物理板即可在虚拟实验室中立即开始配置和测试设计
Ultra Low Power Wi-Fi Pmod™ Board (Renesas QuickConnect IoT)
The US159-DA16200EVZ Ultra Low Power Wi-Fi Pmod™ module enables the user to add Wi-Fi capability to any evaluation kit or microcontroller board equipped with a Pmod...
SparkFun Thing Plus - DA16200 Features a Highly Integrated Low Power Wi-Fi SoC for Developing Wi-Fi and IoT Solutions
The SparkFun DA16200 Thing Plus utilizes a highly integrated ultra-low power Wi-Fi system-on-chip (SoC) from Renesas that allows users to develop Wi-Fi and IoT...
SparkFun Qwiic Wi-Fi Shield Featuring the Ultra-Low Power DA16200 Wi-Fi Module
SparkFun has teamed up with Arm and Renesas to provide you with this Qwiic WiFi Shield based around the DA16200 module. The DA16200 is a fully integrated Wi-Fi module...
SparkFun MicroMod WiFi Function Board Featuring the Ultra-Low Power DA16200 Wi-Fi Module
The SparkFun MicroMod DA16200 Function Board adds a fully integrated Wi-Fi module with a 40MHz crystal oscillator, 32.768KHz RTC, Lumped RF filter, 4MB flash memory,...
无线通信单元参考设计
该参考设计集成了各种无线模块，包括低功耗蓝牙® （LE）、Wi-Fi 和 LTE+GPS，为网联汽车提供强大的解决方案。 随着汽车行业朝着更大的连接性发展，该远程信息处理单元使用户能够轻松升级现有的电子控制单元（ECU），以实现丝滑的云连接。 除了汽车，我们还可以增强 IoT 应用的工业系统。
可在云上实验室使用
使用我们基于 PC 的 GUI，无需物理板即可在虚拟实验室中立即开始配置和测试设计
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
