封装信息
| CAD 模型: | View CAD Model |

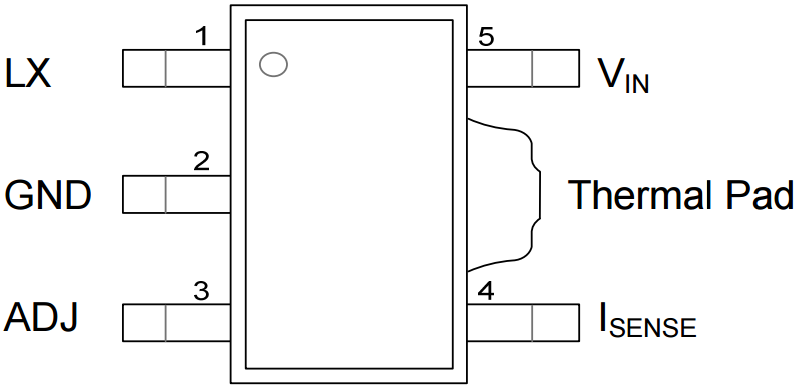

| Pkg. Type: | SOT |
| Pkg. Code: | DZG5 |
| Lead Count (#): | 5 |
| Pkg. Dimensions (mm): | 4.5 x 2.45 x 1.0 |
| Pitch (mm): | 0.6 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
产品属性
| Pkg. Type | SOT |
| Lead Count (#) | 5 |
| Carrier Type | Reel |
| Advanced Features | PWM Dimming, DC Dimming |
| Architecture | Buck |
| Channels (#) | 1 |
| Input Voltage Range (V) | 6 - 40 |
| Length (mm) | 4.5 |
| MOQ | 2500 |
| Moisture Sensitivity Level (MSL) | 3 |
| Output Current Max (A) | 0.75 |
| Package Area (mm²) | 11 |
| Pb (Lead) Free | Yes |
| Pb Free Category | e3 Sn |
| Pitch (mm) | 0.6 |
| Pkg. Dimensions (mm) | 4.5 x 2.45 x 1.0 |
| Qty. per Carrier (#) | 0 |
| Qty. per Reel (#) | 2500 |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Tape & Reel | Yes |
| Thickness (mm) | 1 |
| Width (mm) | 2.45 |
| 已发布 | No |
有关 ZLED7000 的资源
描述

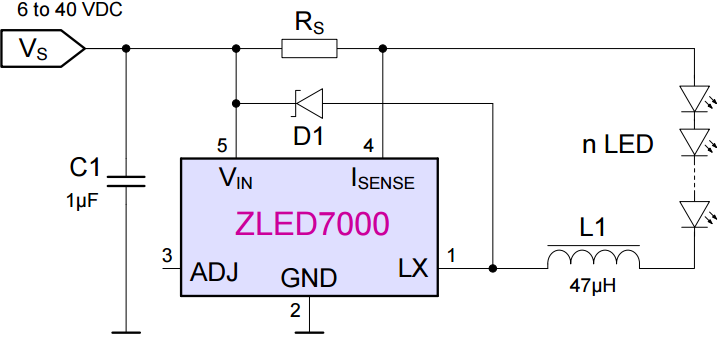

The ZLED7000, one of our ZLED Family of LED control ICs, is an inductive step-down converter that is optimal for driving a single LED or multiple LEDs (connected in series) from a voltage source greater than the voltage rating of the LED. The ZLED7000 operates in continuous mode. Capable of operating efficiently with voltage supplies ranging from 6 VDC to 40 VDC, it is ideal for low-voltage lighting applications. The ZLED7000 minimizes current consumption by remaining in a low-current standby mode (output is off) until a voltage of ≥0.3V is applied to the ADJ pin.
In operating mode, the ZLED7000 can source LEDs with an output current of ≤750mA (≤30 watts of output power) that is externally adjustable (see data sheet). The ZLED7000's integrated output switch and high-side current sensing circuit use an external resistor to adjust the average output current. Linearity is achieved via an external control signal at the ZLED7000's ADJ pin, implemented either as a pulse-width modulation (PWM) waveform for a gated output current or a DC voltage for a continuous current.
