概览
描述
Topics
- Supports 2nd OTA
Firmware update for Secondary MCU connected to Primary MCU via UART is supported.
- Support for firmware updates for RX Family and RL78 Family that do not use the cloud.
This development assistance tool helps you easily try firmware update on your device.
This product is a plug-in which extends the Renesas IDE "e² studio".
This product is available free of charge.
特性
- Enables easy introduction of RTOS projects
- Automates various cloud settings such as creating those for IoT devices
- Creating initial firmware required for OTA updates and support for the debugging and programming of devices
- Creating firmware updates, uploading the firmware to the cloud, and making settings required for OTA updates
发布信息
| Product Name | Latest Ver. | Released | Taget Device (Note1) | Details | Download(Note2) | Operating Environment |
|---|---|---|---|---|---|---|
| QE for OTA | V2.2.0 | Jul 04, 2025 | RX Family RL78 Family RA Family | See Release Note | Download | Operating Environment |
Notes
- For detailed support devices, refer to Target Devices
- Installing this Product >>
目标设备
设计和开发
相关评估板和套件
评估
RL78/G23-128p 快速原型开发板（RL78/G23-128p FPB）
RL78/G23-128p 快速原型开发板采用 RL78/G23 微控制器，是各种原型开发的理想选择。 它通过示例代码支持通过 Wi-Fi DA16600模块的 AWS 云连接、OTA 固件更新、LoRa 和基于 LoRaWAN 的无线通信等功能。 内置的仿真器电路相当于 E2 仿真器 Lite，无需额外工具即可进行编程和调试。 此外，它还具有 Arduino Mega、Pmod™ 和 Grove 接口，可连接所有微控制器引脚，并且具有高可扩展性。 它包括两个触摸按钮，使用 RL78/G23 独有的电容式传感器单元。 瑞萨电子还提供了一个 Arduino 库，支持在 Arduino...
开发
CK-RX65N
有效
Cloud Kit Based on RX65N MCU Group
The CK-RX65N cloud kit enables users to securely connect to the cloud and explore the features of the Renesas RXv2 core based RX65N MCU Group and cloud services.
With multiple network connectivity options, the kit provides a seamless cloud connectivity experience to most of the global cloud...
入门
Renesas Starter Kit+ for RX65N-2MB
The Renesas Starter Kit+ for RX65N-2MB is the perfect starter kit for developers who are new to the RX65N (Code Flash 2MB, Pin Count 176-pin). The kit includes an LCD display module, on-chip debugging emulator, and integrated development environment so you can start evaluating the RX65N...
评估
Renesas RX65N Cloud Kit
The Renesas RX65N Cloud Kit is an RX65N microcontroller-based cloud communications evaluation kit which is an ideal evaluation environment for IoT device developers. You can easily provide Wi-Fi connectivity to Amazon Web Services (AWS) and Microsoft Azure (Azure) to help start developing IoT...
开发
CK-RA6M5
有效
基于 RA6M5 MCU 系列的云套件
CK-RA6M5 云套件让用户安全地连接到云并且了解基于 Cortex-M33® 的 RA6M5 MCU 组 和云服务的功能。 该套件具有多种网络连接选项，可为大多数全球云服务提供商提供流畅的云连接体验。 该套件配备了用于以太网连接的板载以太网物理层器件（PHY），并包括用于无线连接的 DA16600 Wi-Fi-BLE combo Pmod 。 借助瑞萨电子可扩展性强的软件包（FSP），利用 FreeRTOS、Azure RTOS 等其他中间件堆栈，该套件拥有完整的软件堆栈支持，因此，它可极为高效地开发云，并可大大缩短上市时间。
查看瑞萨电子云解决方案 ，获取完整的云解决方案包。
评估
EK-RA6M5
有效
RA6M5 MCU 群组评估套件
EK-RA6M5 评估套件可通过灵活配置软件包 (FSP) 和 e2 studio IDE，帮助用户对RA6M5 MCU 群组的特性进行无缝评估，并对嵌入系统应用程序进行开发。用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实。
入门
运行快速入门示例项目
- EK-RA6M5 已经预先烧录了快速入门示例项目。 (在 EK-RA6M5 示例项目包中提供源代码)
- 用户可使用连接至 5V 电源的 micro USB 设备电缆，通过调试 USB 端口 (J10) 启动 EK-RA6M5 板。白色电源 LED 指示灯将会亮起...
评估
EK-RA6M4
有效
RA6M4 MCU 群组评估套件
EK-RA6M4 评估套件可通过灵活配置软件包 (FSP) 和 e2 studio IDE，帮助用户对RA6M4 MCU 群组的特性进行无缝评估，并对嵌入系统应用程序进行开发。用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实。
入门
运行快速入门示例项目
- EK-RA6M4 已经预先烧录了快速入门示例项目。 (在 EK-RA6M4 Example Project Bundle (ZIP)中提供源代码)
- 用户可使用连接至 5V 电源的 micro USB 设备电缆，通过调试 USB 端口 (J10) 启动 EK-RA6M4 板。白色电源 LED 指示灯将会亮起...
评估
FPB-RX140
有效
Fast Prototyping Board for RX140 MCU Group
The Fast Prototyping Board for RX140 MCU Group comes equipped with an RX140 MCU (R5F51406BGFN). The board is inexpensive for RX140 evaluation and prototype development of various applications. It has an emulator circuit so you can write/debug programs just by connecting it to a PC with a USB...
入门
瑞萨电子 RX23E-B 解决方案入门套件
瑞萨电子 RX23E-B 解决方案入门套件是一款评估工具，专为使用 RX23E-B 32 位微控制器 (MCU) 进行传感器测量而设计。 该套件包括一个 RX23E-B MCU 评估板，配备了用于传感器测量的外设和软件（可在网站下载）。 购买套件后，即可立即开始模拟特性的测定。 该套件使开发人员能够缩短开发时间，从而更快地将产品推向市场。 RX23E-B 微控制器集成了高精度模拟前端 (AFE)，是工业传感器设备的理想选择。 此款 32 位 MCU 配备最大数据速率为 125kSPS 的高速 24 位 Delta Sigma 模/数转换器和 16...
评估
FPB-RX261
有效
RX261 MCU 产品群快速原型板
RX261 MCU 产品群的快速原型板，搭载 RX261 MCU (R5F52618BGFP)。 该原型板适用于 RX261 评估和各种应用原型的开发。 它板载仿真调试电路，通过 USB 线缆将其连接至电脑即可编写/调试程序。 此外还具有很强的扩展性，标配 Arduino 和两个 Pmod™ 连接器，并借助通孔可访问微控制器的所有引脚。
瑞萨电子提供的 QuickConnect 平台，可轻松地将 FPB-RX261 连接至各种无线模块和传感器模块，并支持快速原型设计和开发。
入门
瑞萨电子 RX66T 入门套件
瑞萨电子 RX66T 入门套件是刚开始接触 RX66T（代码闪存 512KB，引脚数 100）的开发人员的完美入门套件。
这一套件包括 LCD 显示器模块和片上调试仿真器。 集成开发环境由瑞萨电子网站提供，您打开包装盒后可以立即开始评估 RX66T。 请使用本产品体验 RX66T 的性能和功能。
评估
RX660 目标板
RX660 目标板为 RX660 MCU 的评估、原型制作和开发提供一个切入点。 此外，由于此目标板集成了调试器，您可以将其用于自己的应用设计，而无需进一步投资开发工具。 这款产品提供通孔形式的引脚接头，可连接所有 MCU 的信号引脚，从而可以使用面包板轻松地进行原型设计。 此外，此板还具有 Pmod 接口，可通过连接 Wi-Fi 模块、传感器模块等来增强功能。
视频和培训
QE for OTA Tutorial: Firmware Update Using MCUboot on RA6M5
This tutorial walks you through the steps to create a bootloader using MCUboot and update the firmware with the new version.
Chapter's Title
00:00 Opening
00:18 Preparing the projects
01:01 Configuring the MCUboot settings
02:31 Creating initial firmware
03:06 Creating updated firmware
03:15 Performing a firmware Update
Related Resources
Video List
Additional Details
Features

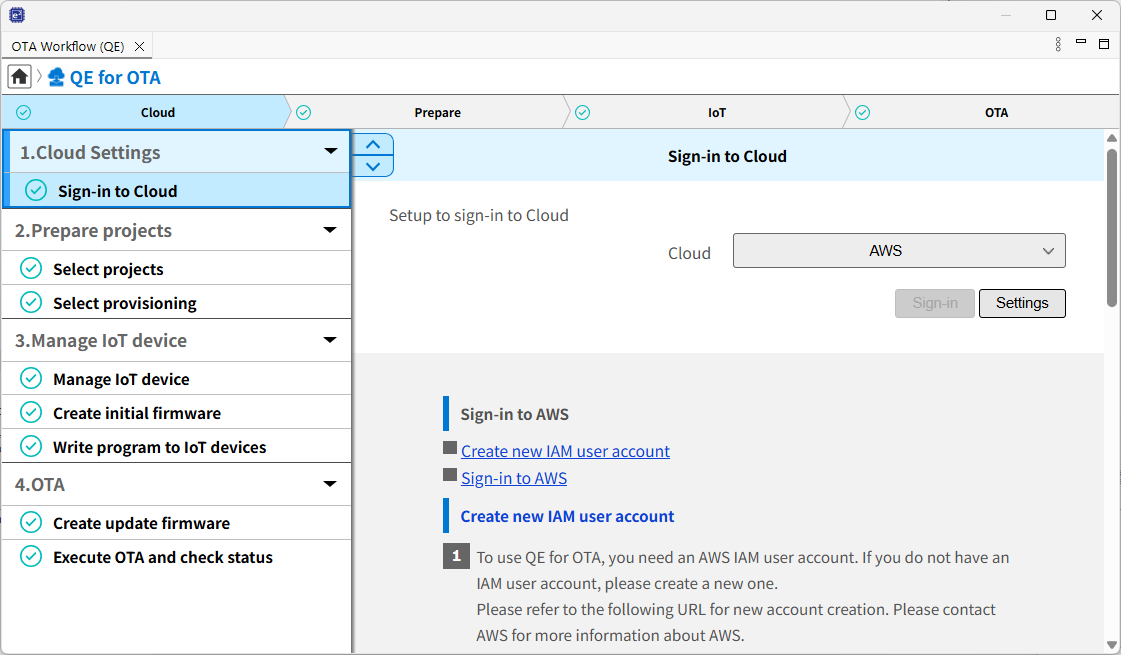

Simply proceed through the workflow to realize over-the-air (OTA) firmware updates via the AWS cloud.
QE for OTA provides a graphical user interface that allows you to set up the cloud, import sample projects, manage IoT devices, create firmware, and start OTA updates.
图像

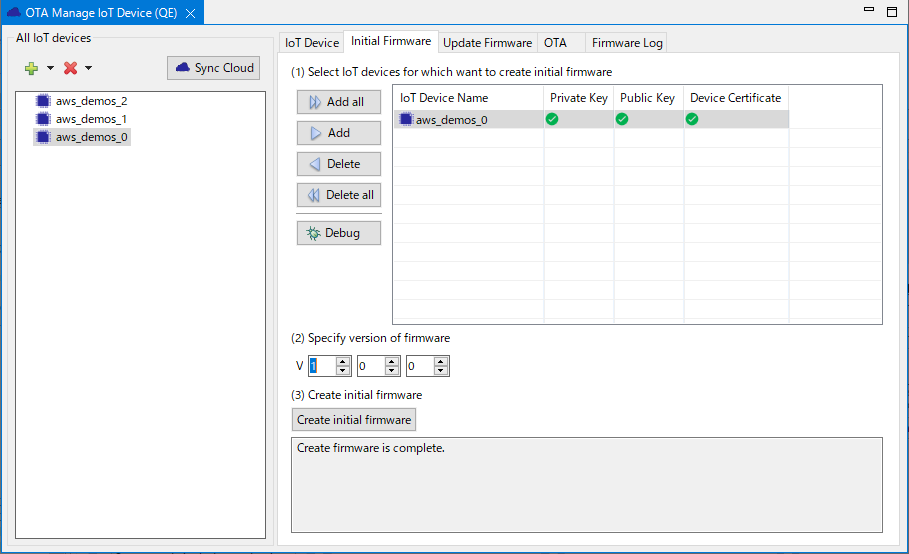

View for creating firmware for individual IoT devices and starting OTA updates
The [OTA Manage IoT Device (QE)] view, which is used to manage IoT devices, has the following features.
- Creating and downloading a device certificate and security key for each IoT device
- Creating an initial version of firmware (with the source code including IoT-device specific information)
- Support for programming boards with the initial firmware
- Creating firmware updates (with the source code including IoT-device specific information
- Uploading firmware updates to the cloud and starting OTA updates
图像
Supported Driver and Middleware
Releases - renesas/iot-reference-rx - GitHub
202210.01-LTS-rx-1.1.3, 202210.01-LTS-rx-1.2.1, FreeRTOS v202210.01-LTS-rx-1.3.1
Releases - renesas/amazon-freertos - GitHub
202107.00-rx-1.0.0, 202107.00-rx-1.0.1
Releases - renesas/azure-rtos - GitHub
6.2.1_rel-rx-1.0.0, 6.2.1_rel-rx-1.0.1, 6.4.0_rel-rx-1.0.0
Releases - renesas/iot-reference-rl78 - GitHub
v202210.01-LTS-rl78-1.0.0, v202210.01-LTS-rl78-1.1.0 (Supported LTE only, not Wi-Fi)
The combinations of the confirmed board and OTA sample program (including RTOS)
| Board or Kit | OTA sample projects(including RTOS) |
|---|---|
| CK-RX65N v1 | FreeRTOS v202107.00-rx-1.0.1, FreeRTOS v202210.01-LTS-rx-1.1.3(LTS #2), FreeRTOS v202210.01-LTS-rx-1.2.1 (LTS #2), FreeRTOS v202210.01-LTS-rx-1.3.1 (LTS #2) |
| AzureRTOS 6.2.1_rel-rx-1.0.0, AzureRTOS 6.2.1_rel-rx-1.0.1, AzureRTOS 6.4.0_rel-rx-1.0.0 | |
| CK-RX65N v2 (Wi-Fi) (Recommended) | FreeRTOS v202210.01-LTS-rx-1.2.1 (LTS #2), FreeRTOS v202210.01-LTS-rx-1.3.1 (LTS #2) |
| RX65N-Cloud-Kit (Note1) | FreeRTOS v202107.00-rx-1.0.0, FreeRTOS v202107.00-rx-1.0.1 |
| RX65N-2MB-Starter-Kit-Plus (Note1) | FreeRTOS v202107.00-rx-1.0.0, FreeRTOS v202107.00-rx-1.0.1 |
| RL78/G23-128p Fast Prototyping Board | FreeRTOS v202210.01-LTS-rl78-1.0.0,FreeRTOS v202210.01-LTS-rl78-1.1.0 (Supported LTE only, not Wi-Fi) |
| CK-RA6M5 v2 | Sample project included in the application note "RA AWS CloudConnectivity and Firmware Update OTA on CK RA6M5 v2 with Ethernet (R11AN0915)” |
| EK-RA6M5 | MCUboot function only |
| EK-RA6M4 | MCUboot function only |
Note
1. Although the operation has been confirmed, it is recommended to use the CK-RX65N.
Boards that have been confirmed to work as secondary MCUs
| Board or Kit | Reference Application Note |
|---|---|
| FPB-RX140 | RX Family Firmware Updating Communications Module Using Firmware Integration Technology (R01AN7757) |
| RSSK-RX23E-B | |
| FPB-RX261 | |
| RSK-RX66T | |
| TB-RX660 | |
| RL78/G23-128p Fast Prototyping Board | RL78/G23 Firmware Updating Communications Module (R01AN7825) |
