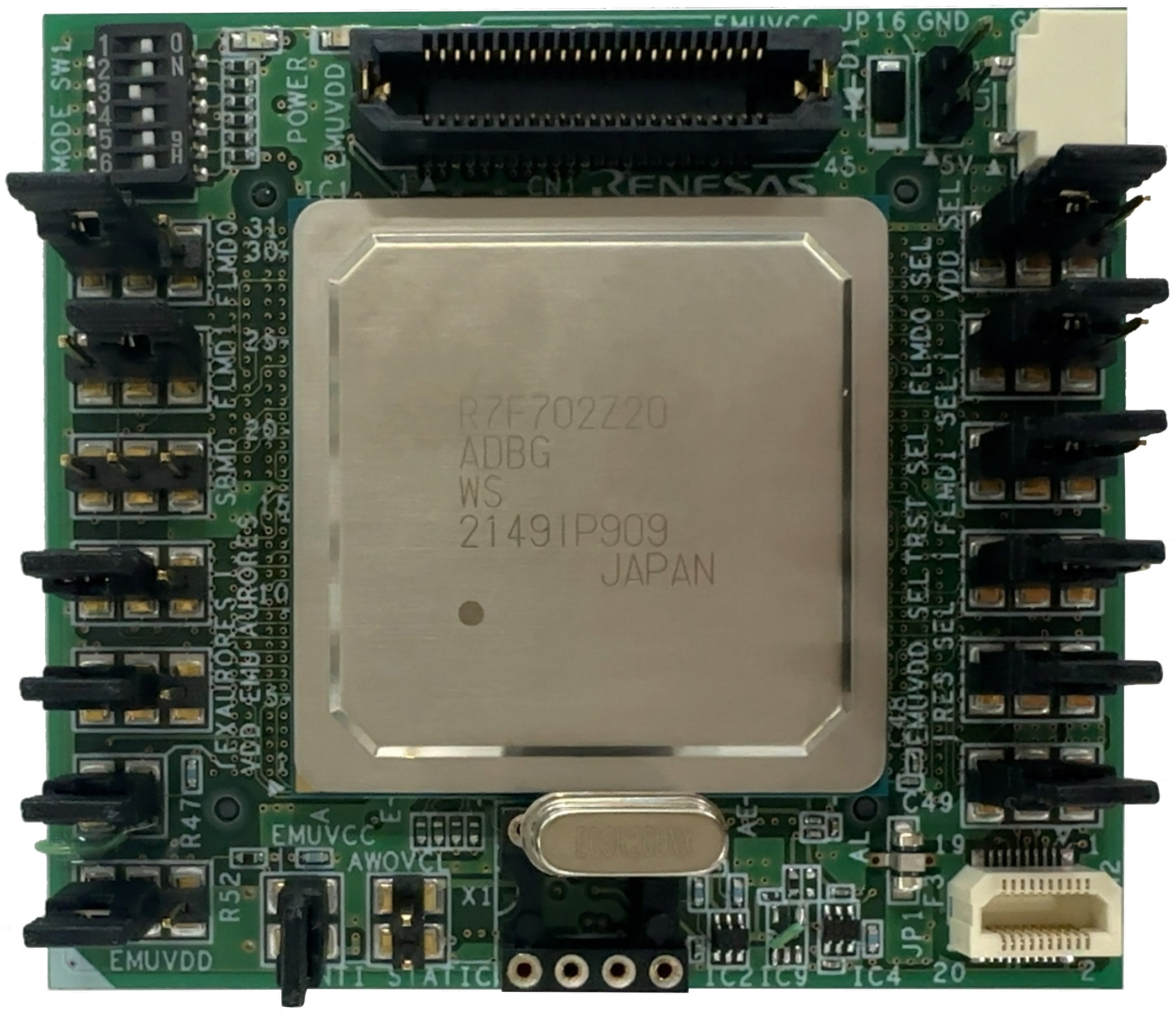

This product is an emulation adapter for RH850/U2B. By using in combination with an exchange adapter (sold separately), you can emulate the target microcomputer to be used.
Debug chip for RH850/U2B is included. The installed debug chip differs depending on the product model name. [ Learn More ]
特性
- Connecting an emulator which supports Aurora tracing Note 1, such as the IE850A emulator from Renesas, to the emulation adapter enables debugging with the use of a tracing facility.
- Using the attached 34-pin to 14-pin conversion connector enables connection of the E2 emulator from Renesas.
- The combination of the emulation adapter connected to the base board included in the package is usable as an evaluation board for the target MCU.
Note
- Aurora is a high-speed communications protocol from Xilinx Inc. but is not supported by the E2 emulator.
目标设备
支持
Additional Details
Specifications
| Item | Description | |
|---|---|---|
| Product model name | RTE7702500EAB00000J | RTE7702500EAB0K000J |
| Emulator supported | E2, IE850A, arious emulators from Renesas Partners | E2, IE850A, arious emulators from Renesas Partners |
| Target MCUs | RH850/ U2B24, RH850/U2B10, RH850/U2B6 | RH850/ U2B24, RH850/U2B10 |
| Onboard debug chip | R7F702Z20ADBG (Performance configuration) | Onboard debug chip R7F702Z2KADBG (Safety configuration) |
| User system connection | Connected to the connecter mounted on the foot pattern of the MCU via an adapter. | Connected to the connecter mounted on the foot pattern of the MCU via an adapter. |
| External dimensions | Emulation adapter：61mm×55mm Base board：110mm×120mm | Emulation adapter：61mm×55mm Base board：110mm×120mm |
| Weight | Emulation adapter：32g Base board：90g | Emulation adapter：32g Base board：90g |
| Conformance with overseas standards | EU：EN55032 Class A, EN55035 USA：FCC part 15 Class A | EU：EN55032 Class A, EN55035 USA：FCC part 15 Class A |
Components
- Emulation adapter
- Base board
- 14-Pin to 46-Pin Conversion Adapter
- 34-Pin to 46-Pin Conversion Adapter
- Power-supply cable
- Demounting lever
- Jumper blocks for pin headers
Connecting the Emulation Adapter to a User System
图像
When designing a user system refer to the following descriptions in the Emulation Adapter for the RH850/U2B User's Manual.
- The specifications of the exchange adapters
For other optional products than the emulation adapter, refer to the user’s manual.
Connecting the Emulation Adapter as an Evaluation Board
图像
