Area Where Lead is to be Eliminated
Lead will be eliminated from two general areas according to the package type: the external surface treatment of the lead, and the solder balls of BGAs.
Surface-mount type (lead type)
Surface-mount type (BGA type)
Through-hole type (lead type)
Surface-mount type (non-lead type)n
Lead-Free Specification of Package Leads
panorama_fish_eye: Lead-free specification
Surface-mount type (SMD)
| Package | Lead-free specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Name | Appearance | Sn-Bi plating | Sn plating | Sn-Cu plating | Ni/Pd/Au plating | Sn-Cu dip | Sn-Ag-Cu balls | Ni/Au plating | Au plating | |
| IC, LSI | QFP TQFP LQFP HQFP |  | panorama_fish_eye | panorama_fish_eye | panorama_fish_eye | panorama_fish_eye | ||||
| SOP TSOP (1) TSOP (2) TSSOP HSOP |  | panorama_fish_eye | panorama_fish_eye | panorama_fish_eye | panorama_fish_eye | |||||
| SOJ QFJ |  | panorama_fish_eye | panorama_fish_eye | |||||||
| QFN | — | panorama_fish_eye | panorama_fish_eye | panorama_fish_eye | panorama_fish_eye | |||||
| BGA TFBGA HBGA |  | panorama_fish_eye | ||||||||
| LGA |  | panorama_fish_eye | ||||||||
| Discrete | Mini-mold |  | panorama_fish_eye | panorama_fish_eye | ||||||
| UPAK DPAK(S) LDPAK(S) MPAK |  | panorama_fish_eye | ||||||||
| LFPAK WPAK |  | panorama_fish_eye | panorama_fish_eye | |||||||
| URP UFP |  | panorama_fish_eye | ||||||||
| Module type (MCM) Ceramic type package |   | panorama_fish_eye | ||||||||
| Hollow plastic mold |  | panorama_fish_eye | ||||||||
Through-hole type (THD)
| Package | Lead-free specification | |||||||
|---|---|---|---|---|---|---|---|---|
| Name | Appearance | Sn-Bi plating | Sn plating | Sn-Cu plating | Ni/Pd/Au plating | Sn-Cu dip | Sn-Ag-Cu dip | |
| IC, LSI | DIP SDIP |  | panorama_fish_eye | panorama_fish_eye | panorama_fish_eye | panorama_fish_eye | panorama_fish_eye | |
| ZIP |  | panorama_fish_eye | panorama_fish_eye | |||||
| Discrete | Radial type (transistors) |  | panorama_fish_eye | panorama_fish_eye | panorama_fish_eye | |||
| TO-92 TO-220 TO-3P |  | panorama_fish_eye | panorama_fish_eye | |||||
| TO-251 TO-262 |  | panorama_fish_eye | panorama_fish_eye | |||||
| TO-3PFM DPAK(L) LDPAK(L) |  | panorama_fish_eye | ||||||
| DO-35 MHD |  | panorama_fish_eye | ||||||
Related Information
EU RoHS Identification on Packaging Label (subject to variations based on the shipment site)
Products compliant with lead-free RoHS Directive can be identified on packaging labels.

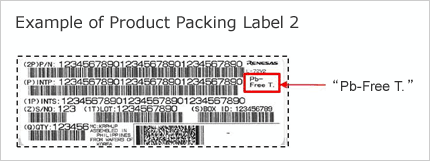

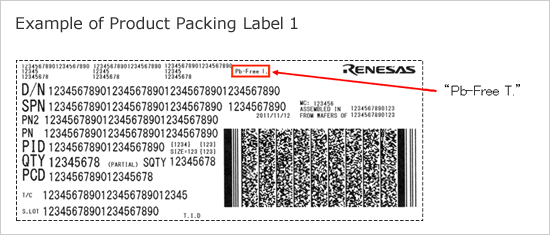

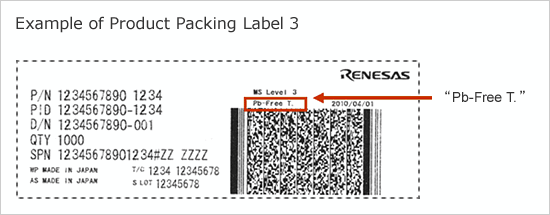

"Pb-Free T." is shown on the label inside the box.
"Pb-Free T." is JEITA Standard Marking and stands for Pb-Free Terminals.
Legacy Intersil products comply with JEDEC J-STD-609 standard for RoHS compliance labeling.
