储存器和逻辑器件

瑞萨电子为系统设计人员提供了更多的数据和代码存储选择，以满足功耗敏感型环境对功耗、处理能力和带宽的需求。 除了专为系统启动等任务而设计的标准级闪存外，我们的系统增强型闪存可以减少MCU开销，并节省高达85%的能源。

下载产品选择指南，查看所有闪存解决方案。

file_download 产品选择指南

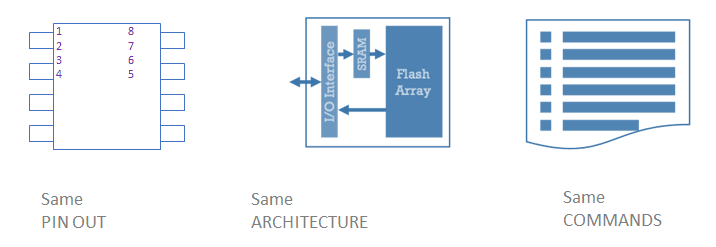

标准闪存

基本功能和通用兼容性

Standard Flash



采用系统增强型闪存，节省系统功耗和能源

节省高达 85% 的能源，降低 MCU 的开销

System-Enhancing Flash

产品选型表

    Processing table
    Memory Class
    Memory Density
    Operating Voltage Range (V)
    Speed
    Interface
    Temp. Range
    Deep Power Down (µA)
    Read Current (mA)
    Key Benefit
    器件号
    AT25DF011
    1 Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory with Dual Read Support    		 System Enhancing 1 Mbit 1.7 - 3.6, 1.65 - 3.6 104 MHz SPI (Dual) -40C to 85C, -40C to 125C 0.2 4.5 Save Energy and Power for Data Logging
    AT25DF021A
    2 Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory with Dual I/O Support    		 System Enhancing 2 Mbit 1.7 - 3.6, 1.65 - 3.6 85 MHz, 104 MHz SPI (Dual) -40C to 85C, -40C to 125C 0.2 4.5 Save Energy and Power for Data Logging
    AT25DF041B
    4 Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory with Dual I/O Support    		 System Enhancing 4 Mbit 1.7 - 3.6, 1.65 - 3.6 85 MHz SPI (Dual) -40C to 85C, -40C to 125C 0.2 4.5 Save Energy and Power for Data Logging
    AT25DF081A
    8Mbit 2.7V Minimum SPI Serial Flash Memory    		 Standard 8 Mbit 2.7 - 3.6 100 MHz SPI (Dual) -40C to 85C 5 12
    AT25DF256
    256 Kbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory with Dual Read Support    		 System Enhancing 256 Kbit 1.65 - 3.6 104 MHz SPI (Dual) -40C to 85C 0.2 4.5 Save Energy and Power for Data Logging
    AT25DF321A
    32Mbit, 2.7V to 3.6V Range SPI Serial Flash Memory with Dual Read Support    		 Standard 32 Mbit 2.7 - 3.6 100 MHz SPI (Dual) -40C to 85C 5 12
    AT25DF512C
    512 Kbit, 1.65V to 3.6V Range SPI Serial Flash Memory with Dual Read Support    		 System Enhancing 512 Kbit 1.65 - 3.6 104 MHz SPI (Dual) -40C to 85C 0.2 4.5 Save Energy and Power for Data Logging
    AT25DF641A
    64Mbit, 2.7V to 3.6V Range SPI Serial Flash Memory with Dual I/O Support    		 Standard 64 Mbit 2.7 - 3.6 100 MHz SPI (Dual) -40C to 85C 5 25
    AT25DL081
    8Mbit, 1.65V Minimum SPI Serial Flash Memory with Dual I/O Support    		 Standard 8 Mbit 1.65 - 1.95 100 MHz SPI (Dual) -40C to 85C 8 10
    AT25DL161
    16Mbit, 1.65V Minimum SPI Serial Flash Memory with Dual I/O Support    		 Standard 16 Mbit 1.65 - 1.95 100 MHz SPI (Dual) -40C to 85C 8 10
    AT25DN011
    1Mbit, 2.3V to 3.6V Range SPI Serial Flash Memory with Dual-Read Support    		 System Enhancing 1 Mbit 2.3 - 3.6 104 MHz SPI (Dual) -40C to 85C 0.35 6 Save Energy and Power for Data Logging
    AT25DN256
    256Kbit, 2.3V to 3.6V Range SPI Serial Flash Memory with Dual-Read Support    		 System Enhancing 256 Kbit 2.3 - 3.6 104 MHz SPI (Dual) -40C to 85C 0.35 6 Save Energy and Power for Data Logging
    AT25DN512C
    512-Kbit, 2.3V to 3.6V Range SPI Serial Flash Memory with Dual-Read Support    		 System Enhancing 512 Kbit 2.3 - 3.6 104 MHz SPI (Dual) -40C to 85C 0.35 6 Save Energy and Power for Data Logging
    AT25EU0011A
    1 Mbit Ultra-low Energy Serial Flash Memory    		 System Enhancing 1 Mbit 1.65 - 3.6 85 MHz SPI (Dual & Quad) -40C to 85C 0.1 1.2 Ultra low Energy, save more than 70% energy
    AT25EU0021A
    2Mbit Ultra-low Energy Serial Flash Memory    		 System Enhancing 2 Mbit 1.65 - 3.6 85 MHz SPI (Dual & Quad) -40C to 85C 0.1 1.2 Ultra low Energy, save more than 70% energy
    AT25EU0041A
    4 Mbit Ultra-low Energy Serial Flash Memory    		 System Enhancing 4 Mbit 1.65 - 3.6 85 MHz SPI (Dual & Quad) -40C to 85C 0.1 1.2 Ultra low Energy, save more than 70% energy
    AT25FF041A
    4Mbit, 1.65 V to 3.6 V SPI Serial Flash Memory with Multi-I/O Support    		 Standard 4 Mbit 1.65 - 3.6 133 MHz SPI (Dual & Quad) -40C to 85C 0.007 8.5
    AT25FF081A
    8Mbit, 1.65 V to 3.6 V SPI Serial Flash Memory with Multi-I/O Support    		 Standard 8 Mbit 1.65 - 3.6 133 MHz SPI (Dual & Quad) -40C to 85C 0.007 8.5
    AT25FF161A
    16Mbit, 1.65 V to 3.6 V SPI Serial Flash Memory with Multi-I/O Support    		 Standard 16 Mbit 1.65 - 3.6 133 MHz SPI (Dual & Quad) -40C to 85C, -40C to 105C 0.007 8.5
    AT25FF321A
    32Mbit, 1.65 V to 3.6 V SPI Serial Flash Memory with Multi-I/O Support    		 Standard 32 Mbit 1.65 - 3.6 133 MHz SPI (Dual & Quad) -40C to 85C 0.007 8.5
    AT25PE16
    16Mbit, 2.3 V to 3.6 V Range SPI Serial Flash Memory    		 System Enhancing 16 Mbit 2.3 - 3.6 85 MHz SPI -40C to 85C 0.3 6 Micron Replacement
    AT25PE20
    2Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory    		 System Enhancing 2 Mbit 1.65 - 3.6 85 MHz SPI -40C to 85C 0.3 4.5 Micron Replacement
    AT25PE40
    4Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory    		 System Enhancing 4 Mbit 1.65 - 3.6 85 MHz SPI -40C to 85C 0.3 6 Micron Replacement
    AT25PE80
    8Mbit, 1.7 V to 3.6 V Range SPI Serial Flash Memory    		 System Enhancing 8 Mbit 1.7 - 3.6 85 MHz SPI -40C to 85C 0.3 6 Micron Replacement
    AT25QF128A
    128Mbit, 3V SPI Serial Flash Memory with Dual I/O and Quad I/O Support    		 Standard 128 Mbit 2.7 - 3.6 133 MHz SPI (Dual & Quad-[default]) -40C to 85C, -40C to 105C 2 12
    AT25QF641B
    64Mbit, 3V SPI Serial Flash Memory with Dual I/O and Quad I/O Support    		 Standard 64 Mbit 2.7 - 3.6 104 MHz SPI (Dual & Quad-[default]) -40C to 85C 1 3.3
    AT25QL128A
    128Mbit, 1.7V Minimum SPI Serial Flash Memory with Dual I/O, Quad I/O and QPI Support    		 Standard 128 Mbit 1.7 - 2 133 MHz SPI (Dual & Quad-[default]) -40C to 85C 2 7
    AT25QL321
    32Mbit, 1.7V Minimum SPI Serial Flash Memory with Dual I/O, Quad I/O and QPI Support    		 Standard 32 Mbit 1.7 - 2 104 MHz SPI (Dual & Quad-[default]) -40C to 85C 2 5
    AT25SF041B
    4Mbit, 2.7V Minimum SPI Serial Flash Memory with Dual I/O Support    		 Standard 4 Mbit 2.5 - 3.6 108 MHz SPI (Dual & Quad) -40C to 85C 1.2 3.3
    AT25SF081B
    8Mbit, 2.7V Minimum SPI Serial Flash Memory with Dual I/O Support    		 Standard 8 Mbit 2.5 - 3.6 108 MHz SPI (Dual & Quad) -40C to 85C 1.2 3.3
    AT25SF128A
    128Mbit, 2.7V Minimum SPI Serial Flash Memory with Dual I/O Support    		 Standard 128 Mbit 2.7 - 3.6 133 MHz SPI (Dual & Quad) -40C to 85C, -40C to 105C 2 12
    AT25SF161B
    16Mbit, 2.7V Minimum SPI Serial Flash Memory with Dual I/O Support    		 Standard 16 Mbit 2.5 - 3.6 108 MHz SPI (Dual & Quad) -40C to 85C 1.5 3.3
    AT25SF321B
    32Mbit, 2.7V Minimum SPI Serial Flash Memory with Dual I/O Support    		 Standard 32 Mbit 2.7 - 3.6 108 MHz SPI (Dual & Quad) -40C to 85C 1 3.3
    AT25SF641B
    64Mbit, 2.7V Minimum SPI Serial Flash Memory with Dual I/O Support    		 Standard 64 Mbit 2.7 - 3.6 104 MHz SPI (Dual & Quad) -40C to 85C 1 3.3
    AT25SL128A
    128Mbit, 1.7V Minimum SPI Serial Flash Memory with Dual I/O, Quad I/O and QPI Support    		 Standard 128 Mbit 1.7 - 2 133 MHz SPI (Dual & Quad) -40C to 85C 2 7
    AT25SL321
    32Mbit, 1.7V Minimum SPI Serial Flash Memory with Dual I/O, Quad I/O and QPI Support    		 Standard 32 Mbit 1.7 - 2 104 MHz SPI (Dual & Quad) -40C to 85C 2 5
    AT25SL641
    64Mbit, 1.7V Minimum SPI Serial Flash Memory with Dual I/O, Quad I/O and QPI Support    		 Standard 64 Mbit 1.7 - 2 133 MHz SPI (Dual & Quad) -40C to 85C 2 5
    AT25XE011
    1Mbit, 1.65V to 3.6V Range SPI Serial Flash Memory with Dual Read Support and Low Read Current    		 System Enhancing 1 Mbit 1.65 - 3.6 104 MHz SPI (Dual) -40C to 85C 0.2 3.5 Low Power, Low Read Current
    AT25XE021A
    2Mbit, 1.65V to 3.6V Range SPI Serial Flash Memory with Dual Read Support and low Read current    		 System Enhancing 2 Mbit 1.65 - 3.6 70 MHz SPI (Dual) -40C to 85C 0.2 3.5 Low Power, Low Read Current
    AT25XE041B
    4Mbit, 1.65V to 3.6V Range SPI Serial Flash Memory with Dual Read Support and Low Read Current    		 System Enhancing 4 Mbit 1.65 - 3.6, 1.7 - 3.6 85 MHz SPI (Dual) -40C to 85C, -40C to 125C 0.2 3.5 Low Power, Low Read Current
    AT25XE041D
    4Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory with Multi-I/O Support    		 System Enhancing 4 Mbit 1.65 - 3.6 133 MHz SPI (Dual & Quad) -40C to 85C 0.007 5.6 5x faster, 70% Energy Savings
    AT25XE081D
    8Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory with Multi-I/O Support    		 System Enhancing 8 Mbit 1.65 - 3.6 133 MHz SPI (Dual & Quad) -40C to 85C 0.007 5.6 5x faster, 70% Energy Savings
    AT25XE161D
    16Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory with Multi-I/O Support    		 System Enhancing 16 Mbit 1.65 - 3.6 133 MHz SPI (Dual & Quad) -40C to 85C 0.007 5.5 5x faster, 70% Energy Savings
    AT25XE321D
    32Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory with Multi-I/O Support    		 System Enhancing 32 Mbit 1.65 - 3.6 133 MHz SPI (Dual & Quad) -40C to 85C 0.007 5.5 5x faster, 70% Energy Savings
    AT25XE512C
    512Kbit, 1.65V to 3.6V Range SPI Serial Flash Memory with Dual Read Support and low Read Current    		 System Enhancing 512 Kbit 1.65 - 3.6 104 MHz SPI (Dual) -40C to 85C 0.2 4.5 Low Power, Low Read Current
    AT25XV021A
    2Mbit, 1.65 V to 4.4 V Range SPI Serial Flash Memory with Dual I/O Support    		 System Enhancing 2 Mbit 1.65 - 3.6 85 MHz SPI (Dual & Quad) -40C to 85C 0.1 1.2 Ultra low Energy, save more than 70% energy
    AT25XV041B
    4Mbit, 1.65 V to 4.4 V Range SPI Serial Flash Memory with Dual I/O Support    		 System Enhancing 4 Mbit 1.65 - 4.4 85 MHz SPI (Dual) -40C to 85C 0.2 3.5 Extended Range to 4.4 Volts
    AT45DB021E
    2Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory    		 System Enhancing 2 Mbit 1.65 - 3.6 85 MHz SPI -40C to 85C 0.2 4.5 Robust and Most Efficient Data Logging Memory
    AT45DB041E
    4Mbit, 1.65 V to 3.6 V Range SPI Serial Flash Memory    		 System Enhancing 4 Mbit 1.65 - 3.6 70 MHz, 85 MHz SPI -40C to 85C, -40C to 125C 0.4 6 Robust and Most Efficient Data Logging Memory
    AT45DB081E
    8Mbit, 1.7 V to 3.6 V Range SPI Serial Flash Memory    		 System Enhancing 8 Mbit 1.7 - 3.6 85 MHz SPI -40C to 85C 0.4 6 Robust and Most Efficient Data Logging Memory
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    文档

    文档标题
    类型     		日期
    One-Renesas Memory Solutions Brochure
    PDF 4.06 MB 日文     		手册
    AN402: Renesas 8Mbit Products Overview
    PDF 408 KB     		应用文档
    SPI NOR FLASH Guide - Standard and System Enhancing Memory
    PDF 790 KB     		指南
    AN401: Renesas 4-Mbit Products Overview
    PDF 367 KB     		应用文档
    AN406: AT25EU Ultra-Low Energy NOR Flash Family
    PDF 227 KB     		应用文档
    How System Level Noise in Digital Interfaces can Lead to Spurious Errors in Serial Flash Memory
    PDF 1.00 MB     		其他
    AN502: FAQs: NOR Flash Application Note
    PDF 355 KB     		应用文档
    AN115 Flash Protection Schemes and Methods
    PDF 794 KB     		应用文档
    AN501: Power-Up/Down Considerations in NOR Flash
    PDF 663 KB     		应用文档
    AN500:NOR Flash Memory Erase Operation
    PDF 956 KB     		应用文档
    AN404-A1: Dialog 1Mbit Products Overview
    PDF 354 KB     		应用文档
    AN405-A1: Dialog 2Mbit Products Overview
    PDF 357 KB     		应用文档
    Saving Data During a Power Failure Using the DataFlash® E-Series Family
    PDF 576 KB     		应用文档
    AN005 Rev A Active Interrupt Proven to Lower Power Consumption
    PDF 1.10 MB     		应用文档
    AN111: Implementing Ultra Deep Power Down Mode in AT25xx Series and AT45xx Series
    PDF 504 KB     		应用文档
    AN201: Adesto 32Mbit Products Overview
    PDF 718 KB     		应用文档
    AN400: Adesto 64Mbit Product Overview
    PDF 770 KB     		应用文档
    AN403: Adesto 16Mbit Products Overview
    PDF 513 KB     		应用文档
    Adesto Serial Flash Power Saving Features and Concepts
    PDF 1.21 MB     		其他
    PCB Design and Layout Considerations for Adesto Memory Devices
    PDF 313 KB     		其他
    Tech Note TN-111, Effect of Excessive Number of CS Toggle Operations on AT25SF641 and AT25QF641
    PDF 399 KB     		白皮书
    AN105 PCB Design and Layout Considerations
    PDF 313 KB     		应用文档
    VCC Power Off, Brownout, and Power On with the DataFlash Family
    PDF 229 KB     		应用文档
