电源管理

来自瑞萨电子的非隔离式 AC/DC 降压转换器系列是一系列通用输入 AC/DC 开关降压稳压器，其具备 700V 集成 MOSFET，能够提供高达 8W 的输出功率，输出电压低至 3.3V，具有可变封装选项。 它具有独特的恒分时间控制方法，有助于实现超低待机功率、可忽略的 EMI 和无可听噪声。 该产品系列还支持次级侧反馈隔离式反激拓扑。

产品选型表

    Processing table
    Output Power Max (W)
    Topology
    AC Input Voltage (Min) (V)
    AC Input Voltage (Max) (V)
    DC Output Voltage (Min) (V)
    DC Output Voltage (Max) (V)
    Switching Frequency (KHz)
    Control Type
    RDS (ON) (Ohms)
    ISW (Typical) (mA)
    Pkg. Type
    Lead Count (#)
    Temp. Range
    器件号
    RAA223010
    700V AC/DC Regulator with Ultra-Low Standby Power and up to 10W Output Power    		 10 Non-isolated buck | Isolated Flyback 20 305 3.3 54 45 Constant off-time PFM 6.8 810 SOICN 7 -40 to 125°C
    RAA223011
    700V AC/DC 稳压器，备用功率超低，输出功率高达 5W    		 5 Non-isolated buck | Isolated Flyback 20 305 3.3 54 30 Constant off-time PFM 14.5 520 SOICN, TSOT 8, 7, 5 -40 to 125°C

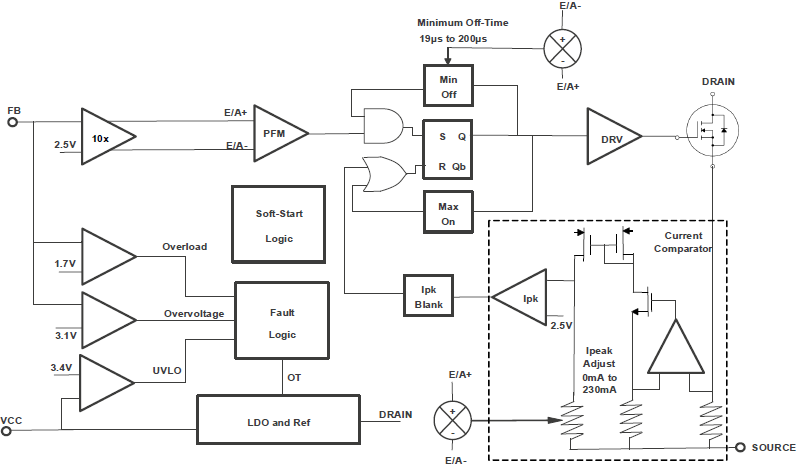

    RAA223012
    具有超低备用功率的 700V AC/DC 稳压器，输出功率高达 2.5W    		 2.5 Non-isolated buck | Isolated Flyback 20 305 3.3 54 50 Constant off-time PFM 14.5 335 SOICN, TSOT 8, 5 -40 to 125°C
    RAA223021
    700V AC/DC 稳压器，具有超低备用功率，输出功率高达 12W    		 12 Non-isolated buck | Isolated Flyback 20 305 3.3 54 43 Constant off-time PFM 4 1100 SOICN 7 -40 to 125°C
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
    RAA2230xx Non-Isolated AC/DC 700V Buck Regulator Family

    The innovative RAA2230xx family of 700V non-isolated AC/DC buck regulators delivers ultra-low-power consumption, excellent noise and EMI suppression, as well as reduced overall system cost for a wide range of applications, including home appliances, sensing systems, white goods, power meters and industrial controls.
