Renesas provides a comprehensive lineup of battery front-ends to cover all battery management system protection, monitoring and balancing requirements. Our battery front-end ICs meet the reliability and performance requirements of battery-powered applications including power tools, UPS systems, home appliances, and e-bikes. Our automotive-grade Li-ion BMS portfolio is designed to meet the performance requirements of next-generation hybrid electric vehicle (HEV), plug-in hybrid electric vehicle (PHEV) and electric vehicle (EV) applications.

电源管理

产品选型表

    Processing table
    器件号
    Cells Supported (#)
    Pack Voltage (Op)
    Cell Balancing FETs
    Integrated Current Sense/Detection
    Charge/Discharge FET Control
    Charge/Discharge FET Arrangement
    Charge/Discharge FET Location
    IS (mA)
    Sleep Mode Current (µA)
    Stand Alone Capable
    Internal ADC (bits)
    Daisy Chain
    GPI+GPIOs (#)
    Qualification Level
    Lead Count (#)
    Pkg. Type
    ISL94202
    Standalone 3 to 8 Cell Li-Ion Battery Pack Monitor    		 3 - 8 4 - 36 External (Built-in Drivers) High Side Yes Both High Side 0.348 13 State Machine 14 否 2 Standard 48 TQFN
    ISL94208
    4- to 6-Cell Li-ion Battery Management Analog Front-End    		 4 - 6 8 - 26.4 Both Low Side Yes Both Low Side 0.85 2 No None 否 1 Standard 32 QFN
    ISL94212
    Multi-Cell Li-Ion Battery Manager    		 6 - 12 6 - 60 External (Built-in Drivers) None No N/A N/A 3.31 12 No 14 是的 4 Standard 64 TQFP

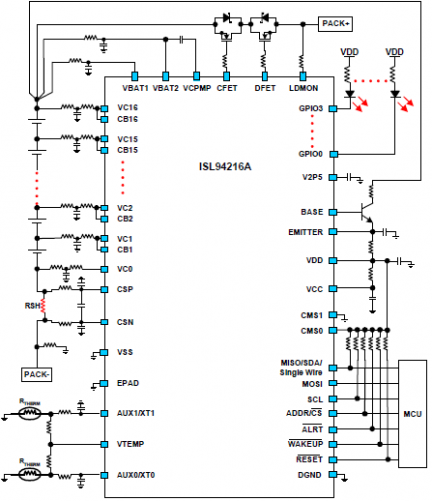

    ISL94216A
    16-Cell Battery Front End    		 4 - 16 12 - 55 Both Low Side Yes Both Both 0.2, .2 10 No 16 否 6 Standard 64 QFN
    RAA489204
    Multi-Cell Daisy-Chainable Li-Ion Battery Manager    		 6 - 14 10 - 65 External (Built-in Drivers), Internal (Built-in Drivers) None No N/A N/A 5.6 19 No 14 是的 6 Standard 64 TQFP
    RAA489206
    Multi-Cell Li-Ion Battery Manager    		 4 - 16 12 - 55 External (Built-in Drivers), Internal (Built-in Drivers) Low Side Yes Both Both 0.2 10 No 16 否 6 Standard 64 QFN

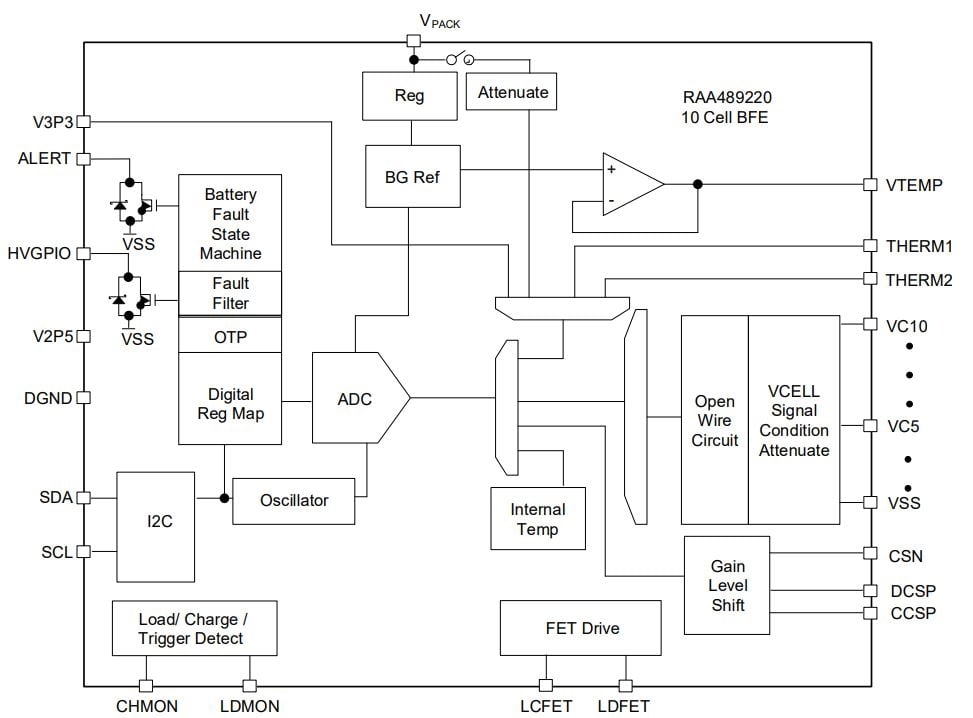

    RAA489220
    4S to 10S Li-ion Battery Manager    		 4 - 10 5 - 44 None Low Side Yes Both Low Side 0.11 3 State Machine 16 否 1 Standard 32 QFN
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    文档

    文档标题 类型 日期
    Industrial Power Management Brochure
    PDF5.58 MB
    手册
    BFE Family Functional Safety Manual
    PDF615 KB
    指南
    Industrial Battery Front End API Software Manual
    PDF465 KB
    手册 - 软件
    电池管理 - 使用由GPIO控制的低压侧FET保护电池
    PDF396 KBEnglish
    白皮书
    提升锂离子电池组的安全性
    PDF576 KBEnglish
    白皮书
    揭开电池管理系统的神秘面纱
    PDF411 KBEnglish
    白皮书
    Implementing Inter-Module Communications in EV Battery Systems
    PDF354 KB
    白皮书
    Optimizing Battery Accuracy for EVs and HEVs
    PDF400 KB
    白皮书
    RAA48920x Multi-Cell Battery Front End Family

    An overview of how the Renesas multi-cell battery front devices streamline development for high-cell count, high-voltage systems with flexible cell balancing and lower system costs. Visit renesas.com/bfe for more details.

    Video List
    RAA48920x Multi-Cell Battery Front End Family
    ISL94203 3-to-8 Cell Li-ion Battery Pack Monitor Webinar
    ISL94203/02 Battery Pack Monitor Protects Li-ion Batteries
    ISL78610 Battery Pack Monitor Webinar
    Improving Li-Ion Battery Safety
    12-Cell Battery Pack Monitor Evaluation Board Overview

    新闻和博客

    How Daisy-Chained Battery ICs Efficiently Monitor and Protect High Voltage Batteries 博客 2021年11月11日
    瑞萨电子推出适用于高电压系统的新型多电芯电池前端产品 新闻 2021年11月11日
