The HS-303CEH is an analog switch and a monolithic device that is fabricated using the Renesas dielectrically isolated Radiation Hardened Silicon Gate (RSG) process technology to ensure latch-up free operation. The HS-303CEH is pinout compatible and functionally equivalent to the HS-303RH. The HS-303CEH offers low-resistance switching performance for analog voltages up to the supply rails. ON-resistance is low and stays reasonably constant across the full range of operating voltage and current. ON-resistance also stays reasonably constant when exposed to radiation. Break-before-make switching is controlled by 5V digital inputs. The HS-303CEH can operate with ±15V rails. Specifications See SMD 5962-95813 for detailed electrical specifications.

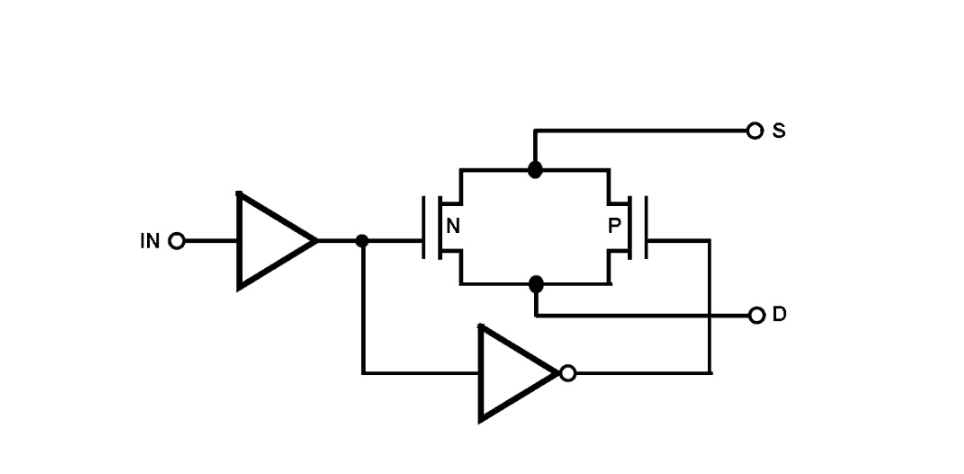

HS-303CEH Functional Diagram
HS-303CEH Functional Diagram
  • Electrically screened to DLA SMD# 5962-95813
  • QML, per MIL-PRF-38535
  • No latch-up, dielectrically isolated device islands
  • Pinout and functionally compatible with the HS-303RH series of analog switches
  • Analog signal range equal to the supply voltage range
  • Low leakage : 150nA (max, post-rad)
  • Low rON : 60Ω (max, post-rad)
  • Low standby supply current : ±150µA (max, post-rad)
  • Radiation assurance
    • High dose rate (50 to 300rad(Si)/s) : 100krad(Si)
    • Low dose rate (0.01rad(Si)/s) : 50krad(Si) (Note 1)
  • Single event effects
    • For LET = 60MeV·cm2/mg at 60° incident angle, <150pC charge transferred to the output of an off switch (based on SOI design calculations)

文档

设计和开发

ECAD 模块

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

扩展 ECAD 模块

产品选择

    Processing table
    器件号
    Pkg. Type
    Carrier Type
    MOQ
    DLA SMD
    购买 / 样片
    HS0-303CEH-Q
    play_circleActive
    memory
    view_in_ar
    		100 5962R9581308V9A
    HS9-303CEH/PROTO
    play_circleActive
    memory
    view_in_ar
    		CFP Tray 1
    HS9-303CEH-Q
    play_circleActive
    memory
    view_in_ar
    		CFP Tray 25 5962R9581308VXC
    HS0-303CEH/SAMPLE
    play_circleActive
    memory
    view_in_ar
    		DIE 5
