概述
描述

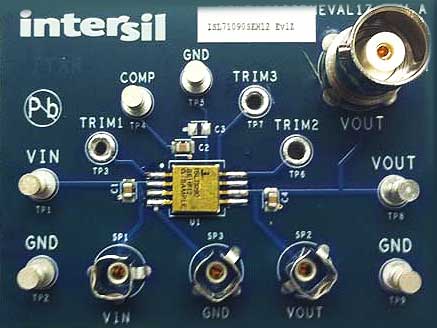

The ISL71090SEH12EV1Z evaluation board is designed to measure the performance of the radiation hardened, ultra-low noise, high-precision ISL71090SEH12 voltage reference. The reference has a wide input voltage range from 4V to 30V and an initial accuracy of 0.05%. Its ultra-low voltage noise (1μVP-P in the 0.1Hz to 10Hz range), a maximum output voltage temperature coefficient of 10ppm/°C, and excellent radiation performance make the ISL71090SEH ideal for space applications.
特性
- Reference output voltage: 1.25V ± 0.05%
- Accuracy over temperature and radiation: ± 0.15%
- Output voltage noise: 1µVP-P Typ. (0.1Hz to 10Hz)
- Supply current: 930µA (Typ.)
- Temperature coefficient (box method): 10ppm/°C Max
- Output current capability: 20mA
- Line regulation: 8ppm/V
- Operating temperature range: -55°C to +125°C
- Radiation environment
- High dose rate: (50-300rad(Si)/s): 100krad(Si)
- Low dose rate: (0.01rad(Si)/s): 100krad(Si)
- Product capability established by initial characterization. The "EH" version is acceptance tested on a wafer-by-wafer basis to 50krad(Si) at low dose rate
- SET/SEL/SEB: 86MeV•cm2/mg
应用
产品选项
| Part Number | Status | Stock | Sampleable | Pb (Lead) Free | ECCN (US) | HTS (US) |
|---|---|---|---|---|---|---|
| ISL71090SEH12EV1Z | Active | In Stock | Available | Yes | 9A515.e.1 | 8473.30.1180 |
视频和培训
The low dose rate ionizing dose response of semiconductors has become a key issue in space applications. We are addressing this changed market by introducing wafer by wafer low dose rate acceptance testing as a complement to current high dose rate acceptance testing.
