ISL85412DEMO1Z

有效

Synchronous Buck Demo Board with 3.6V to 40V Input Range, 3.3V 150mA Output

立即订购
ISL85413DEMO1Z, ISL85412DEMO1Z User Guide

概览

The ISL85412DEMO1Z demonstration kit is intended for use in point-of-load (POL) applications sourcing from 3.5V to 40V. The kit is used to demonstrate the performance of the ISL85412 wide VIN, low quiescent current, high-efficiency, synchronous buck regulators with 150mA of output current.

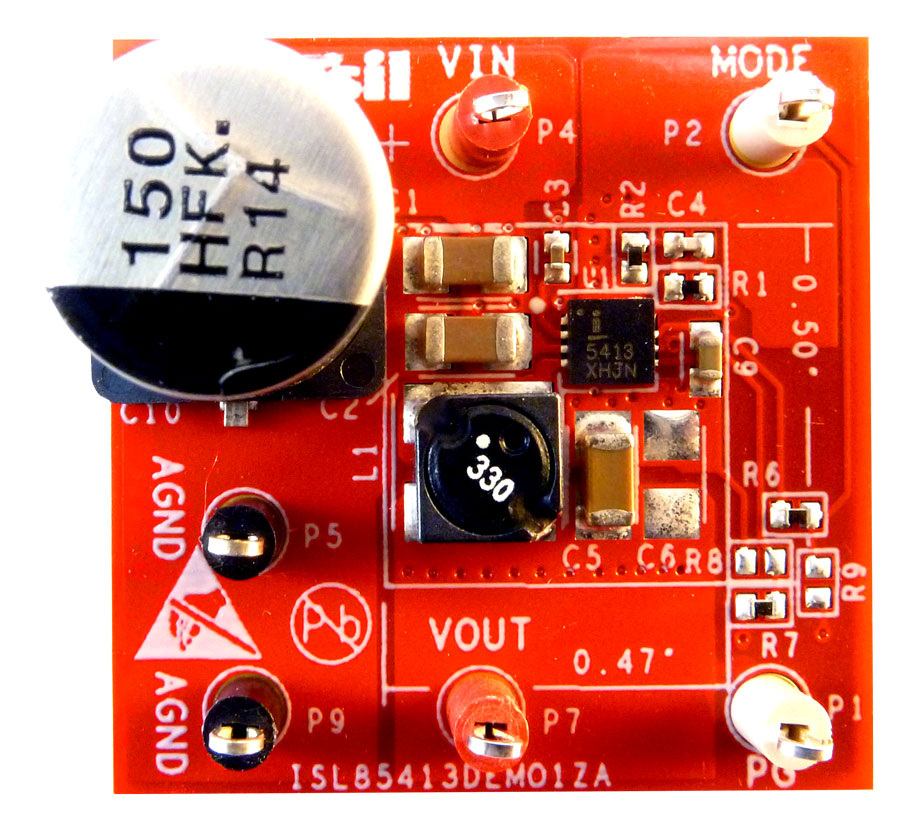

ISL85413DEMO1Z Buck Regulator Demo Board
  • Small, compact design
  • Switch selectable EN (enable/disabled)
  • Switch selectable mode (auto PFM/forced PWM)
  • Connectors, test points and jumpers for easy probing
