RTKA2P4200S00000BE 电感式位置传感器评估套件是一款非接触式位置感测套件，用于评估旋转或线性传感器的性能。 该套件包含用于产品配置的软件，其图形用户界面 (GUI) 可轻松安装。 通信板可无缝连接至 PC 端，实现快速设置与评估。
RTKA2P4200S00000BE 套件采用 RAA2P4200 无磁电感式位置传感器 IC，专为工业场景中的绝对旋转、线性或弧形位置感测而设计。

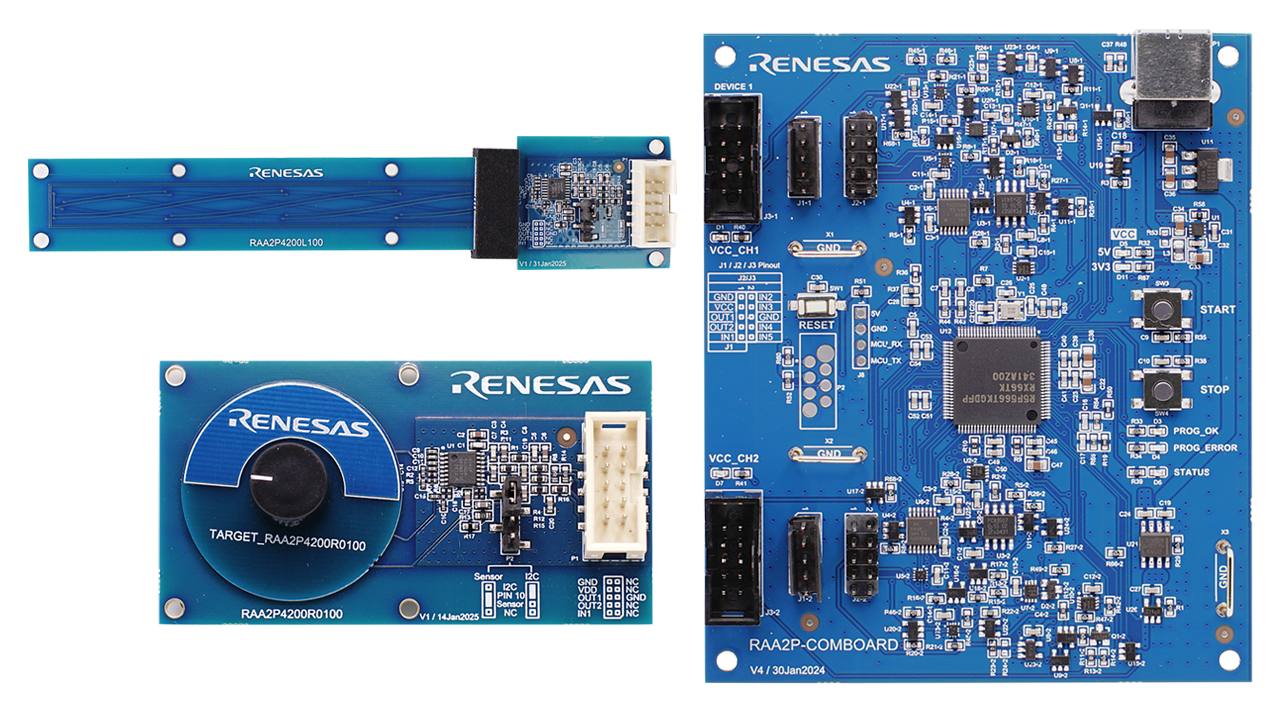

RTKA2P4200S00000BE评估套件包括 RAA2P-COMBOARD 通信板、RAA2P4200R0100（直径 32mm，360 度旋转模块）、RAA2P4200L100（100mm 线性传感模块）、USB-B 电缆和两根接口电缆。
特性
- 适用于工业场景的坚固型非接触式位置感测套件
- 支持 I2C、模拟和 PWM 接口的可配置 IC
- 适用于 3.3V 或 5.0V 场景
应用
- 工业自动化
- 家用电器
- 电动工具
- 打印机
- 低速应用场景
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 快速入门指南 |
PDF
656 KB
The RTKA2P4200S00000BE is a Renesas evaluation kit designed to help users quickly evaluate and familiarize themselves with the RAA2P4200 inductive position sensor. It includes a communication board and two sensor modules designed to detect both rotary and linear motion. This quick start guide outlines essential steps to set up and operate the hardware efficiently.
|
|
| 手册 - 软件 | RAA2P4200 Programming Manual
The RAA2P4200 is a single-channel, industrial-grade inductive position sensor designed for rotary, linear, and arc motion detection in automation and robotics. This document outlines the necessary steps to set up, program, and calibrate the sensor.
|
|
| 快速入门指南 | IPS RAA2Pxxxx Evaluation Software Quick Start Guide
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This document outlines the procedures for configuring and operating the RAA2Pxxxx Evaluation Software (GUI), which is fully compatible with all evaluation kits in the RAA2Pxxxx series.
|
|
| PCB 设计文件 | RAA2P4200L100 Design Files
The RAA2P4200L100 is a compact linear reference design from Renesas, based on the RAA2P4200 inductive position sensor. This package contains the Gerber design files, which can be imported into your PCB layout.
|
|
| PCB 设计文件 | RAA2P4200R0100 Design Files
The RAA2P4200R0100 is a rotary reference design from Renesas, based on the RAA2P4200 inductive position sensor. This package contains the Gerber design files, which can be imported into your PCB layout.
|
|
| 报告 |
PDF
754 KB
The RAA2P4200L100 is a compact Renesas linear reference design based on the RAA2P4200 inductive position sensor. It is capable of performing absolute linear position sensing for strokes up to 10cm. The RAA2P4200L100 achieves 14-bit resolution and ±0.08mm accuracy. This measurement report outlines the sensor coil design's performance and presents the corresponding measurement results.
|
|
| 报告 |
PDF
614 KB
The RAA2P4200R0100 Renesas rotary reference design is based on the RAA2P4200 inductive position sensor. It features 14-bit resolution and is equipped with I²C, analog, and PWM interfaces. This measurement report outlines the sensor coil design's performance and presents the corresponding measurement results.
|
|
7 项目
|
||
设计和开发
软件与工具
软件下载
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 软件和工具 - 软件 | RAA2Pxxxx IPS Evaluation Software (GUI)
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package contains the necessary files to install and operate the RAA2Pxxxx Evaluation Software (GUI), which is fully compatible with all evaluation kits in the RAA2Pxxxx series.
|
|
| 软件和工具 - 软件 | RAA2P3xxx/4xxx Python Code Example
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package provides Python code for communicating with the sensor and performing compensation and calibration using the Renesas RAA2P-COMBOARD, making it suitable for quick testbench setup and automated calibration.
|
|
| 软件和工具 - 软件 | Linearization Demo
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package includes sample code for calculating linearization points from simple measurements.
|
|
3 项目
|
||
样例程序
样例程序
筛选
|
||
|---|---|---|
| 类型 | 文档标题 | 日期 日期 |
| 示例代码 | RAA2P4xxx RH850 Interface Code Example
RAA2P4xxx is Renesas' family of high-accuracy industrial-grade inductive position sensors. This package offers ready-to-use sample code for seamless communication between Renesas RH850 32-bit automotive MCUs and inductive position sensors, tailored to the selected interface.
|
|
1 项目
|
||
产品选项
| 器件号 | 状态 | 库存 | Sampleable | Requires Terms and Conditions |
|---|---|---|---|---|
| RTKA2P4200S00000BE | Active | 有库存 | Available | Does not require acceptance of Terms and Conditions |
