特性
- Voltage supply: 3.3V±0.3V or 5.0V±0.5V
- Qualified for industrial applications operating from -40°C to +125°C
- Output Interfaces: analog 12-bit, PWM 12/14-bit, I2C 14-bit
- High-accuracy sensor with 11-bit accuracy and 14-bit resolution
- Automatic gain control (AGC) to compensate for air-gap variations
- Autocalibration and 16-point linearization for enhanced accuracy
- Overvoltage ±18V, reverse-polarity ±18V, ESD, and short-circuit protection features
- On-chip failure diagnostics
- External auxiliary sensor input

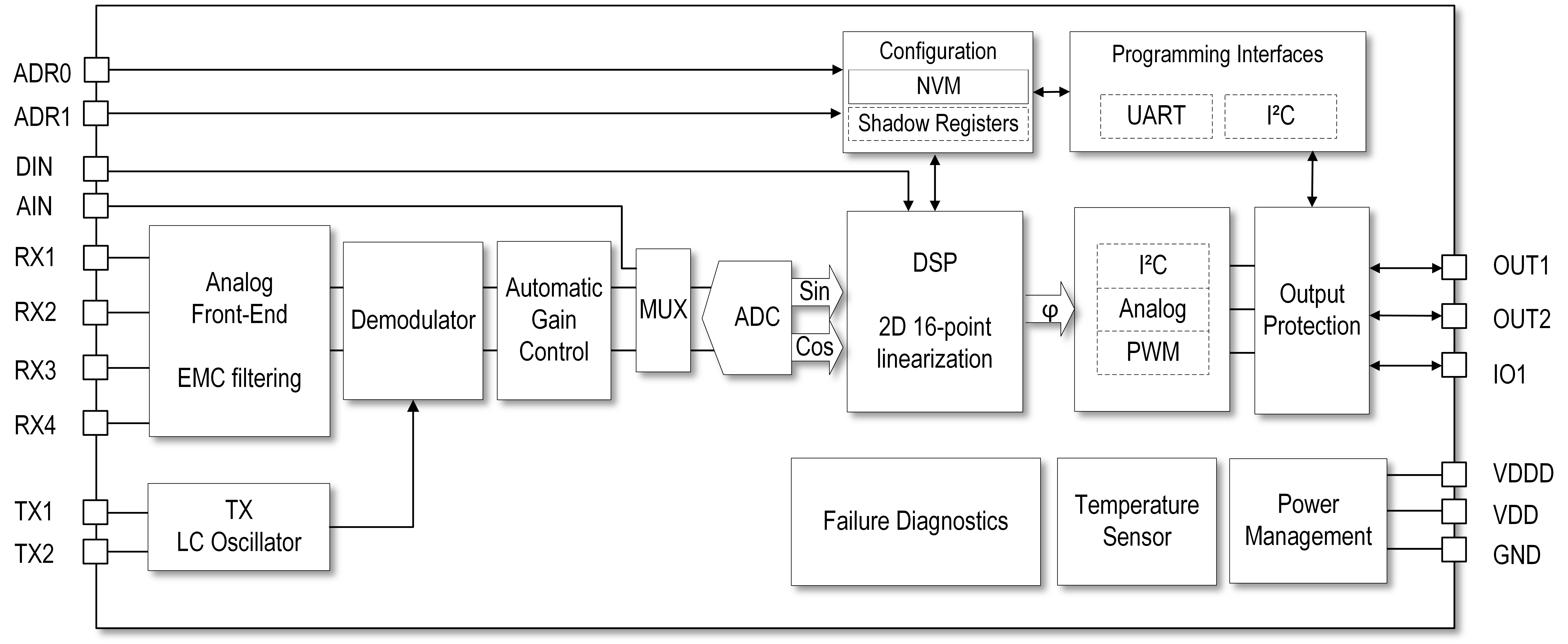

描述
The RAA2P4200 is a magnet-free, inductive position sensor IC designed for absolute rotary, linear, or arc position sensing in industrial applications. It operates on the principle of eddy currents, detecting the position of a simple metallic target that is moving above a set of coils, comprising one transmitter coil and two receiver coils.
Inductive sensing technology offers significant advantages over magnetic technology, including greater flexibility, easier system integration, and enhanced performance, reliability, and cost efficiency. As a result, it is becoming the preferred choice for a wide range of industrial applications.
产品参数
属性 | 值 |
---|---|
Function | Position Sensor |
Resolution (bits) | 14 |
Supply Voltage (V) | 4.5 - 5.5, 3.0 - 3.6 |
Interface | Analog, PWM, I2C |
Temp. Range (°C) | -40 to 125°C |
封装选项
Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
---|---|---|---|
TSSOP | 5.0 x 4.4 x 1.0 | 16 | 0.65 |
应用方框图
|
胰岛素泵
胰岛素泵集成了 CGM,可实现自动、精准的胰岛素输送,从而更好地控制血糖。
|
其他应用
- Sensing for industrial and warehouse automation
- Service robots
- Power tools
- Personal electronics
- Household appliances
- Non-road vehicles
- 3D printers
- Textile
- CNC machine
当前筛选条件
筛选
软件与工具
样例程序
模拟模型

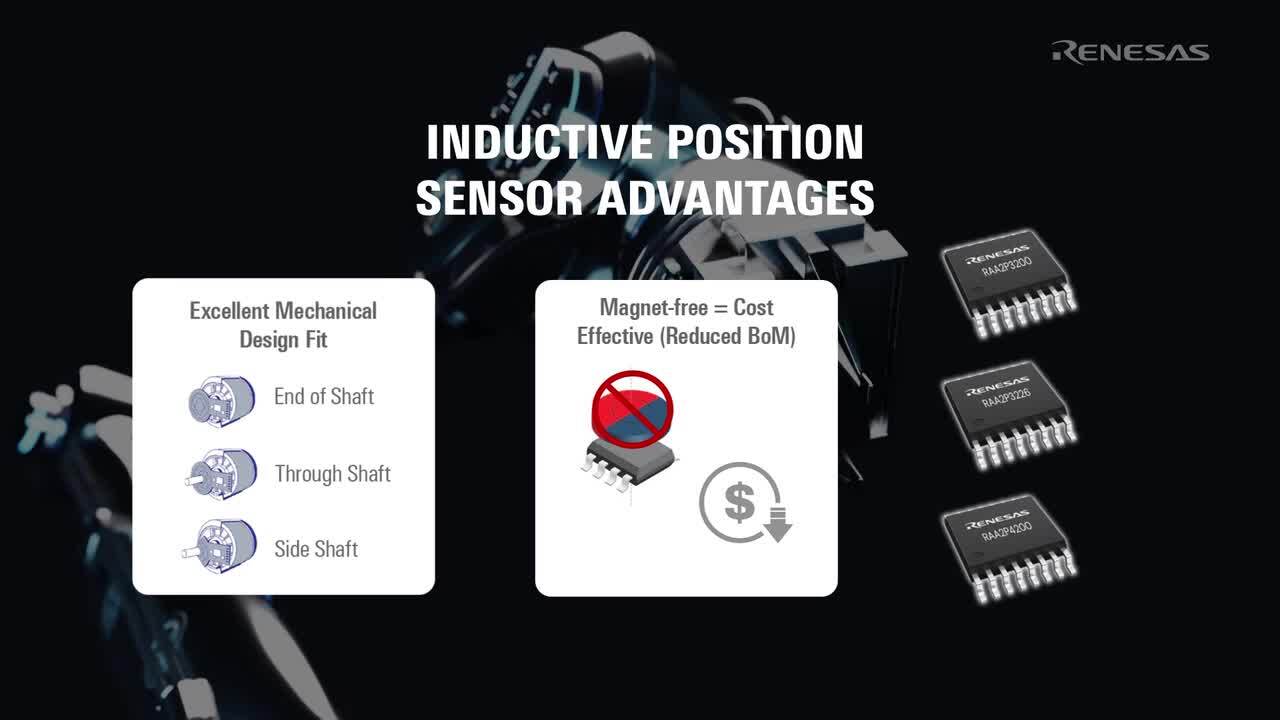

RAA2Px inductive position sensors boast high accuracy and high resolution with analog and digital interfaces. The devices offer a high-performance solution for optical and magnetic encoder replacement, effectively lowering overall bill-of-materials costs.
Visit the RAA2P3226, RAA2P3200, and RAA2P4200 position sensor pages to learn more about each device.
