概览
描述
The ZMID4201STKIT is an all-in-one starter kit, providing fully-functional evaluation of the ZMID4200 position sensor. This kit combines the linear, rotary, and arc types into a single kit, along with the communications board required to interface with the control software. This evaluation kit allows to select the wanted interface among Analog (default), PWM or SENT.
特性

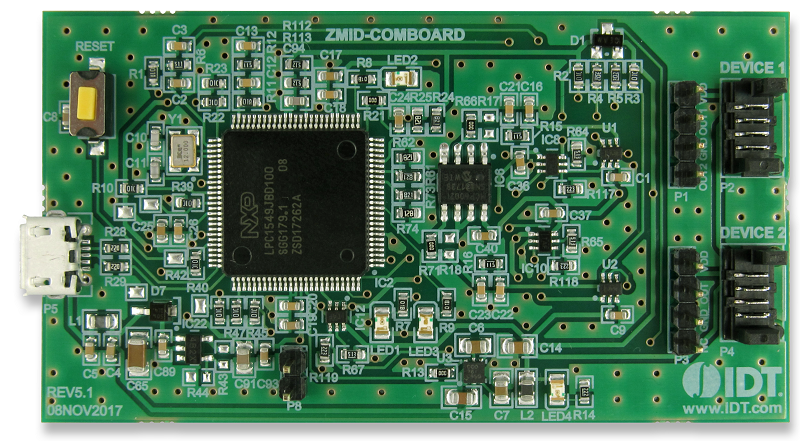

- ZMID-COMBOARD communications board
- ZMID4200 linear application module
- ZMID4200 rotary application module
- ZMID4200 arc application module
- Micro B USB Cable
- 2 x interface cables
应用
设计和开发
软件与工具
软件下载
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
