4RCD0229K

有效

DDR4 Register Clock Driver (RCD)

立即订购
注意 - 建议使用以下设备作为替代品：
4RCD0232K - DDR4 Register Clock Driver (RCD)

特性

  • JEDEC Compliant RCD
  • DDR4-1600/1866/2133/2400/2667
  • Optimized for JEDEC DDR4 2667 MT/s RDIMM, LRDIMM, and UDIMM
  • Designed to be used with the 4DB0226KB (DDR4 DB) and the TSE2004GB2 (DDR4 Temperature Sensor)
  • Supports CKE Power Down operation modes
  • Support Quad Chip Select Operation
    • Direct Dual CS Mode
    • Direct QuadCS Mode
  • Encoded QuadCS Mode
  • Pinout optimized DDR4 RDIMM, LRDIMM, and UDIMM PCB layout
  • Provides access to internal control words for configuring the device features and adapting to different RDIMM and system applications
  • Available in 253-ball Dual-Pitch (0.50mm/0.65mm), 15 x 20 Grid, Rectangular Ball Grid Array Package
查找DDR4 解决方案的其他产品

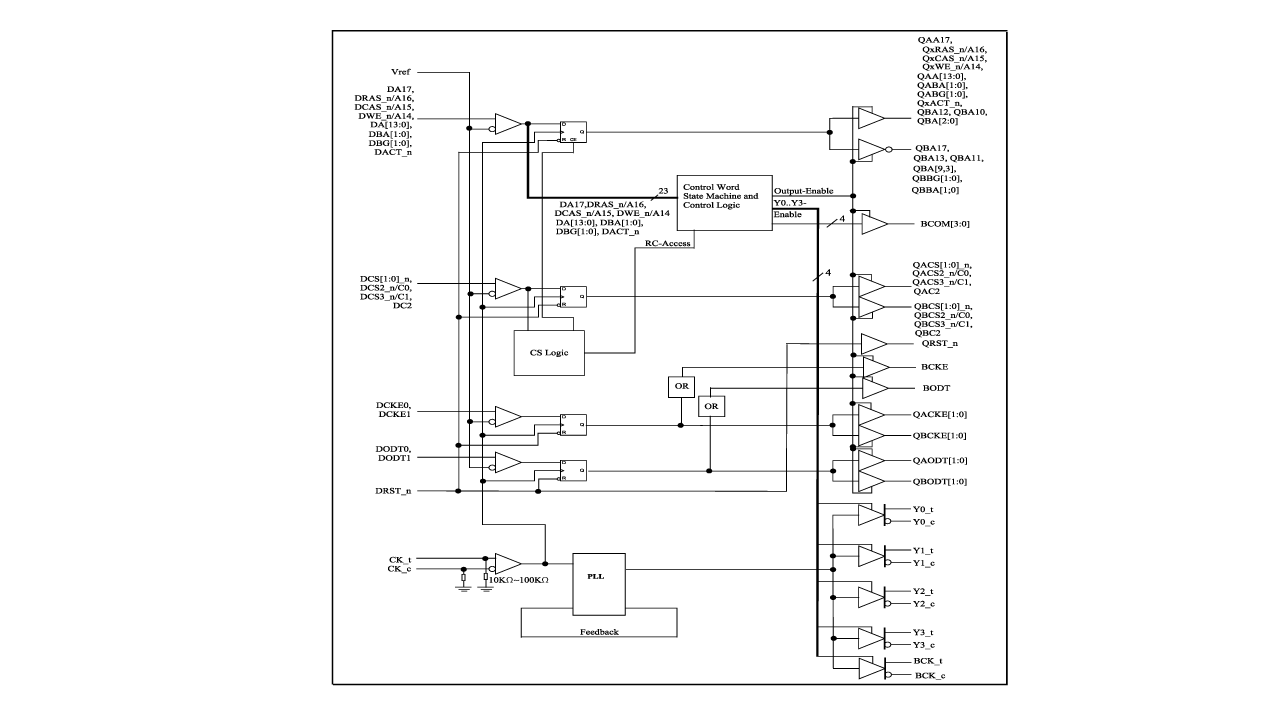

4RCD0229KB1 Block Diagram

描述

Renesas' JEDEC-compliant 4RCD0229K is a Gen 2 DDR4 registered clock driver (RCD) for Enterprise Class Server RDIMMs, LRDIMMs, and UDIMMs operating with a 1.2V VDD supply. It features a 32-bit 1:2 register command, address buffer with parity designed for 1.2V VDD operation.

产品参数

属性 值
Function Register + PLL
Supply Voltage (V) 1.2 - 1.2
SDRAM Type DDR4 up to 2667

封装选项

Pkg. Type Pkg. Dimensions (mm) Lead Count (#) Pitch (mm)
FCCSP 13.5 x 8.0 x 1.4 253 0.65

当前筛选条件

加载中
加载中

A white paper authored by IDT (acquired by Renesas) and Micron details research into memory and bandwidth for today's high-performance servers. LRDIMMS and RDIMMS traditionally have been seen as complementary, with the former targeting applications requiring deeper memory and the latter for applications requiring higher bandwidth.

The introduction of 8-gigabit DRAMS has resulted in a growing number of Internet applications benefiting from both deeper memories and higher bandwidth. This paper shows how 32 GB 2RX4 LRDIMMs transcend similar RDIMMs to meet the needs of today’s data center enterprise servers, by providing an optimal combination of deeper memory and higher data bandwidth, even at mainstream module densities.
