3.3V Programmable Skew PLL Clock Driver Turboclock™

封装信息

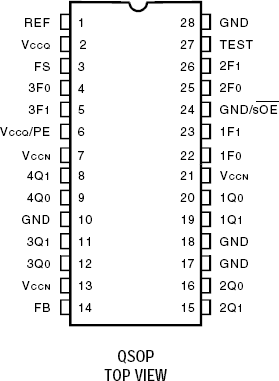

Pkg. Type: QSOP
Pkg. Code: PCG28
Lead Count (#): 28
Pkg. Dimensions (mm): 9.9 x 3.8 x 1.47
Pitch (mm): 0.64

环境和出口类别

Pb (Lead) Free Yes
ECCN (US) EAR99
HTS (US) 8542.39.0090
Moisture Sensitivity Level (MSL) 1

产品属性

Pkg. Type QSOP
Lead Count (#) 28
Pb (Lead) Free Yes
Carrier Type Tube
Advanced Features Programmable Clock, Feedback Input
C-C Jitter Max P-P (ps) 200
Core Voltage (V) 3.3
Feedback Input Yes
Input Freq (MHz) 3.75 - 85
Input Type LVCMOS
Inputs (#) 1
Length (mm) 9.9
MOQ 144
Moisture Sensitivity Level (MSL) 1
Output Banks (#) 4
Output Freq Range (MHz) 3.75 - 85
Output Skew (ps) 250
Output Type LVCMOS
Output Voltage (V) 3.3
Outputs (#) 8
Package Area (mm²) 37.6
Pb Free Category e3 Sn
Pitch (mm) 0.64
Pkg. Dimensions (mm) 9.9 x 3.8 x 1.47
Prog. Clock No
Qty. per Carrier (#) 48
Qty. per Reel (#) 0
Requires Terms and Conditions Does not require acceptance of Terms and Conditions
Tape & Reel No
Temp. Range (°C) -40 to 85°C
Thickness (mm) 1.47
Width (mm) 3.8
已发布 No

描述

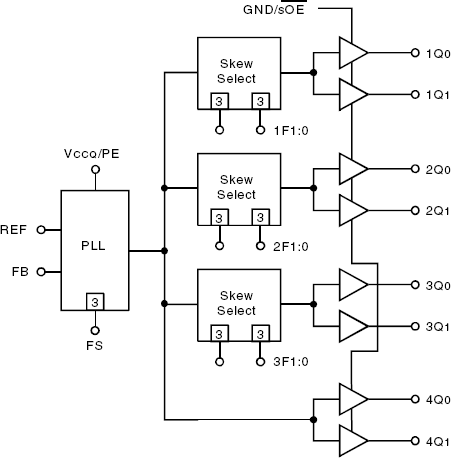

The IDT5V993A is a high fanout 3.3V PLL based clock driver intended for high performance computing and data-communications applications. A key feature of the programmable skew is the ability of outputs to lead or lag the REF input signal. The IDT5V993A has six programmable skew outputs and two zero skew outputs. Skew is controlled by 3-level input signals that may be hard-wired to appropriate HIGH-MID-LOW levels. When the GND/sOE pin is held low, all the outputs are synchronously enabled. However, if GND/sOE is held high, all the outputs except 3Q0 and 3Q1 are synchronously disabled. Furthermore, when the VCCQ/PE is held high, all the outputs are synchronized with the positive edge of the REF clock input. When VCCQ/PE is held low, all the outputs are synchronized with the negative edge of REF. Both devices have LVTTL outputs with 12mA balanced drive outputs.
