概览

The ARD-AUDIO-DA7212 is an audio shield module that can be used with a number of MCU development platforms due to its compatibility with the Arduino™ R3 pin layout. The audio shield can be used with commercially available development platforms such as Freescale "Freedom", Intel "Galileo", Microchip "chipKIT" and Arduino. The ARD-AUDIO-DA7212 shield features the DA7212 audio codec.

DA7212 is an ultra-low power audio codec ideal for standalone audio/video digital processors, IC recorders and many other portable applications. The audio front-end simultaneously supports stereo FM line input with four analog (or two analog and two digital) microphones with two independent microphone biases. Comprehensive analog mixing and bypass paths to the output drivers are available. The headphone output is true-ground Class G with an integrated charge pump. There is also a differential Class AB speaker driver that can serve as a mono lineout.

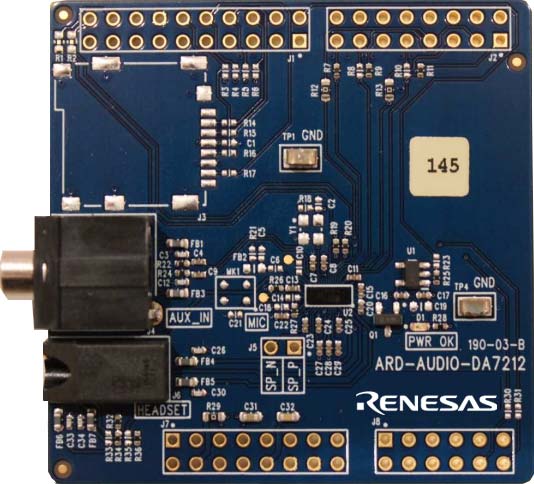

ARD-AUDIO-DA7212 Evaluation Board
ARD-AUDIO-DA7212 Evaluation Board
  • DA7212 two-channel audio codec with capless headphone driver for portable media players
  • 3.5mm stereo AUX input jack socket
  • Smartphone-compatible headset connection on a 4-pole, 3.5mm jack socket
  • Interchangeable GND and MIC routing to the smartphone jack allows multiple headsets to be supported
  • Compatible with MCU development platforms based on the Arduino™ R3 pin layout

应用

  • Personal media players
  • Audio headphone/headsets
  • Embedded applications
  • Arduino compatible development systems
  • Wearables

文档

= 相关文档
类型 文档标题 日期
手册 - 开发工具
ARD-AUDIO-DA7212 Audio Shield User Guide
PDF 8.34 MB
原理图
ARD Audio DA7212 BOM
PDF 46 KB
原理图
ARD Audio DA7212 PCB Layout
PDF 1.88 MB
原理图
ARD Audio DA7212 Reference Design Schematic
PDF 147 KB
数据手册
DA7212 Datasheet
PDF 1.44 MB
其他
DA7212 Gerber file
ZIP 489 KB
其他
Open Source Drivers
ZIP 652 KB
7 items

设计和开发

软件与工具
快速连接平台
快速连接平台通过提供兼容的硬件和软件构建模块，实现快速原型设计。
 Software and Hardware Development Tools 瑞萨电子
1 item

产品选择

    Processing table
    购买 / 样片
    器件号
    ARD-AUDIO-DA7212
    circle有效
