概览

描述

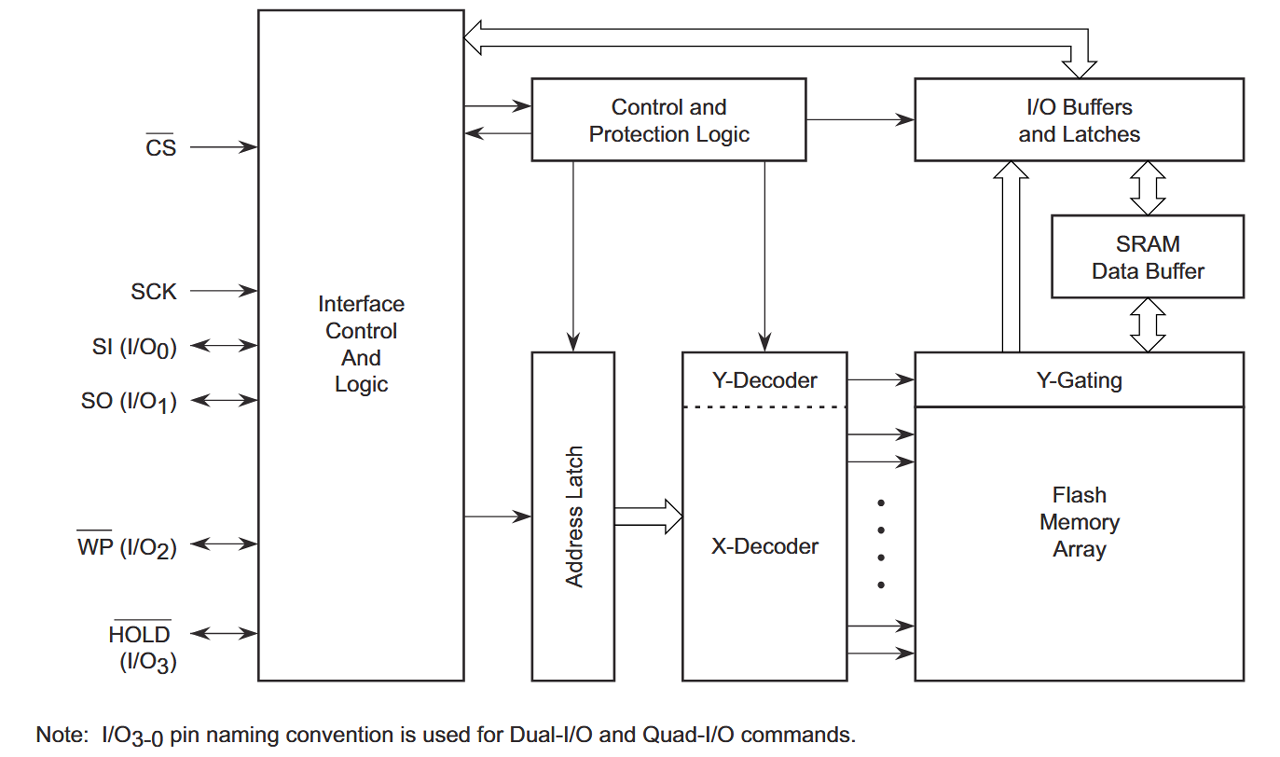

The AT25QL128A is a member of our standard class code and data storage solutions designed for low-voltage systems in which program code is shadowed from Flash memory into embedded or external RAM for execution.

The architecture includes standard erase block sizes and a security register for unique device serialization, system-level Electronic Serial Number (ESN) storage, locked key storage, etc.

The AT25QL128A is Quad enabled at the factory and offers a universally compatible pinout and command set, standard block architecture, and continuous read, wrap, and burst modes for XiP.

特性

  • Single 1.7V - 2.0V Supply
  • 128Mbit (16 x 8 Mbit physical block) Flash Memory
  • Serial Peripheral Interface (SPI) and Quad Peripheral Interface (QPI) Compatible
    • Supports SPI Modes 0 and 3
    • Supports Dual Output Read and Quad I/O Program and Read
    • Supports QPI Program and Read
    • 133MHz Maximum Operating Frequency
    • Clock-to-Output (tV1 ) of 6ns
    • Up to 65Mbytes/s Continuous Data Transfer Rate
  • Quad Enabled
  • Full Chip Erase
  • Flexible, Optimized Erase Architecture for Code and Data Storage Applications
    • 0.6ms Typical Page Program (256 bytes) Time
    • 60ms Typical 4kB Block Erase Time
    • 200ms Typical 32kB Block Erase Time
    • 350ms Typical 64kB Block Erase Time
  • Hardware Controlled Locking of Status Registers via WP Pin
  • 4kbit Secured One-Time Programmable Security Register
  • Hardware Write Protection
  • Serial Flash Discoverable Parameters (SFDP) Register
  • Flexible Programming
    • Byte/Page Program (1 to 256 bytes)
    • Dual or Quad Input Byte/Page Program (1 to 256 bytes)
  • Erase/Program Suspend and Resume
  • JEDEC Standard Manufacturer and Device ID Read Methodology
  • Low Power Dissipation
    • 2μA Deep Power-Down Current (Typical)
    • 10μA Standby Current (Typical)
    • 5mA Active Read Current (Typical)
  • Endurance: 100,000 program/erase cycles (4kbyte, 32kbyte, or 64kbyte blocks)
  • Data Retention: 20 Years
  • Industrial Temperature Range: -40°C to +85°C
  • Industry Standard Green (Pb/Halide-free/RoHS-Compliant) Package Options
    • 8-Pad DFN (6mm x 5mm x 0.6mm)
    • 8-Lead SOIC (208mil)
    • 21-Ball WLCSP
    • 21-Ball Low-Profile WLCSP
