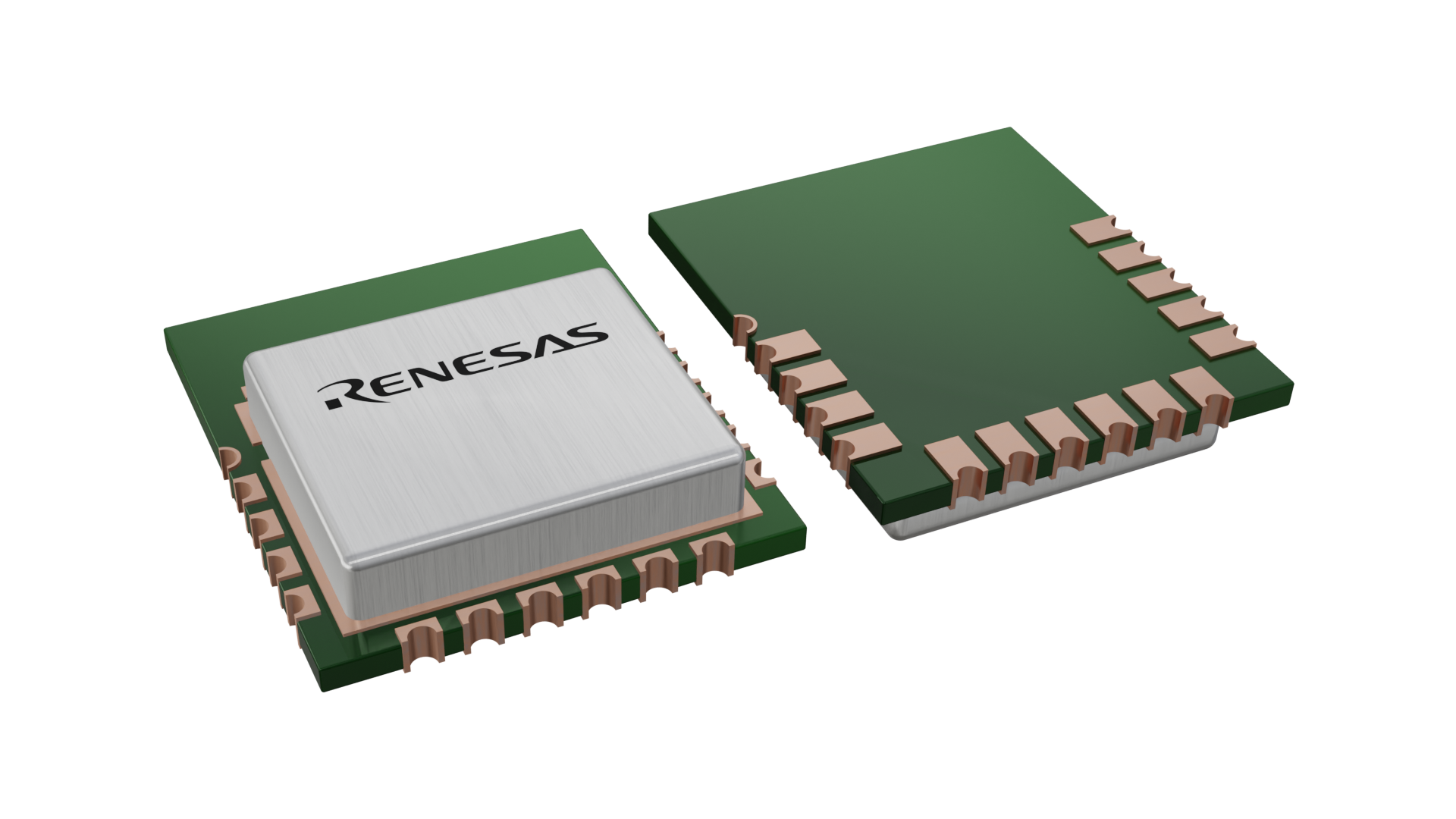

封装信息
| Lead Count (#) | 16 |
| Pitch (mm) | 1.5 |
| Pkg. Type | MODULE |
| Pkg. Dimensions (mm) | 12.5 x 14.5 x 2.8 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.90 |
产品属性
| Lead Count (#) | 16 |
| Carrier Type | Tape & Reel |
| Moisture Sensitivity Level (MSL) | 3 |
| Qty. per Reel (#) | 1000 |
| Pb (Lead) Free | Yes |
| Temp. Range | -40 to +85°C |
| Country of Assembly | Thailand |
| Country of Wafer Fabrication | Taiwan |
| Price (USD) | 1ku | 3.30639 |
| 2Mbps | Not Supported |
| ADC | 10-bit x 4-ch |
| AoA | Not Supported |
| AoD | Not Supported |
| Application | Asset tracking, Beacons, Connected health, Disposables, RCU, ATLASlite, HID, IoT, Medical, Proximity tags & trackers, Data pipes |
| Bluetooth® Mesh | Not Supported |
| CPU | M0+ |
| Clock Rate (MHz) | 16 |
| Execute from FLASH | No |
| Extended Advertising | Not Supported |
| External Rails and Load Capacity | None |
| Flash Memory (KB) | 0, 0 |
| Flexible System Clock | Yes |
| GATT Caching | Not Supported |
| GPIOs (#) | 9 |
| Hardware Crypto Engine | Yes |
| I2C (#) | 1 |
| Integrated Battery Charger | No |
| Integrated DCDC | Integrated Buck DC-DC converter |
| LE Coded PHY (Long Range) | Not Supported |
| LE Data Length Extensions | Supported |
| Longevity | 2400 7月 |
| MCU/MPU | M0 + |
| MOQ | 1000 |
| Memory Size (OTP) (KB) | 32 |
| Operating Freq (Max) (MHz) | 16 |
| Output Power Range (dBm) | -19.5 - 2.5 |
| Periodic Advertising | Not Supported |
| Pitch (mm) | 1.5 |
| Pkg. Dimensions (mm) | 12.5 x 14.5 x 2.8 |
| Pkg. Type | MODULE |
| Proprietary 2G4 protocol | No |
| QSPI Interface (#) | 0 |
| RAM (KB) | 48 |
| ROM (KB) | 144 |
| Recommended for new Designs | Yes |
| Rx current (mA) | 2.2 |
| SPI (#) | 1 |
| Sensitivity (dBm) (dBm) | -94 |
| Supply Voltage Vcc Range | 1.8-3.6 |
| Tx Current (mA) | 3.5 |
| UART (#) | 2 |
| USB Ports (#) | 0 |
| Wireless Standard | BLE 5.1 Core specification |
描述
DA14531 SmartBond TINY™ 模块是低功耗蓝牙®（LE）解决方案，简单易用，将为未来 10 亿台物联网设备供电。
DA14531 SmartBond TINY™ 模块基于世界上最小、最低功耗的蓝牙 5.1 片上系统（SoC），将 SoC DA14531优势融入集成模块。 只需一个电源和一个印刷电路板即可构建蓝牙应用程序。 该模块市场应用广泛，并通过了跨地区的认证，可显著节省开发成本、缩短上市时间。 搭配集成天线和易上手的软件，低功耗蓝牙开发变得无比轻松。 该组合将移动连接带入全新的应用领域，使以 SmartBond TINY™ 为核心的十亿物联网设备成为可能。
需要自定义代码的预编程 DA14531 TINY 模块？
Digi-Key® 和 EPS Global 是提供小批样品到大批量编程服务的精选第三方分销商。
图像
| Digi-Key 是全球发展最快的电子元器件分销商之一。 有关 Digi-Key 编程服务的更多信息，请联系 [email protected]。 |
图像
| EPS Global 是全球最大的编程服务提供商之一。 有关 EPS Global 编程服务的更多信息，请访问 www.epsprogramming.com 或联系 Munteanu Florentin。 |
