封装信息
| CAD 模型: | View CAD Model |
| Pkg. Type: | TQFN |
| Pkg. Code: | LHX |
| Lead Count (#): | 32 |
| Pkg. Dimensions (mm): | 5.00 x 5.00 x 0.75 |
| Pitch (mm): | 0.5 |
环境和出口类别
| RoHS (ISL24016IRTZ) | 英语日文 |
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
产品属性
| Pkg. Type | TQFN |
| Carrier Type | Tube |
| MOQ | 576 |
| Capacitive Load Driving (pF) | 5000 |
| Channels (#) | 7 |
| Continuous Output Current (mA) | 50 |
| Fall Time | 0.06 |
| IS (mA) | 9 |
| Lead Compliant | No |
| Lead Count (#) | 32 |
| Length (mm) | 5 |
| Moisture Sensitivity Level (MSL) | 1 |
| Output Voltage (Max) (V) | 18 |
| Output Voltage (Min) (V) | 18 |
| Output Voltage Range (V) | 18 - 18 |
| Pb (Lead) Free | Yes |
| Pb Free Category | Pb-Free 100% Matte Tin Plate w/Anneal-e3 |
| Peak Output Current IPK (A) | 200 |
| Pitch (mm) | 0.5 |
| Pkg. Dimensions (mm) | 5.0 x 5.0 x 0.75 |
| Propagation Delay | 90/100 |
| Qualification Level | Standard |
| Rise Time (μs) | 60 |
| Tape & Reel | No |
| Temp. Range (°C) | -40 to +85°C |
| Thickness (mm) | 0.75 |
| Width (mm) | 5 |
有关 ISL24016 的资源

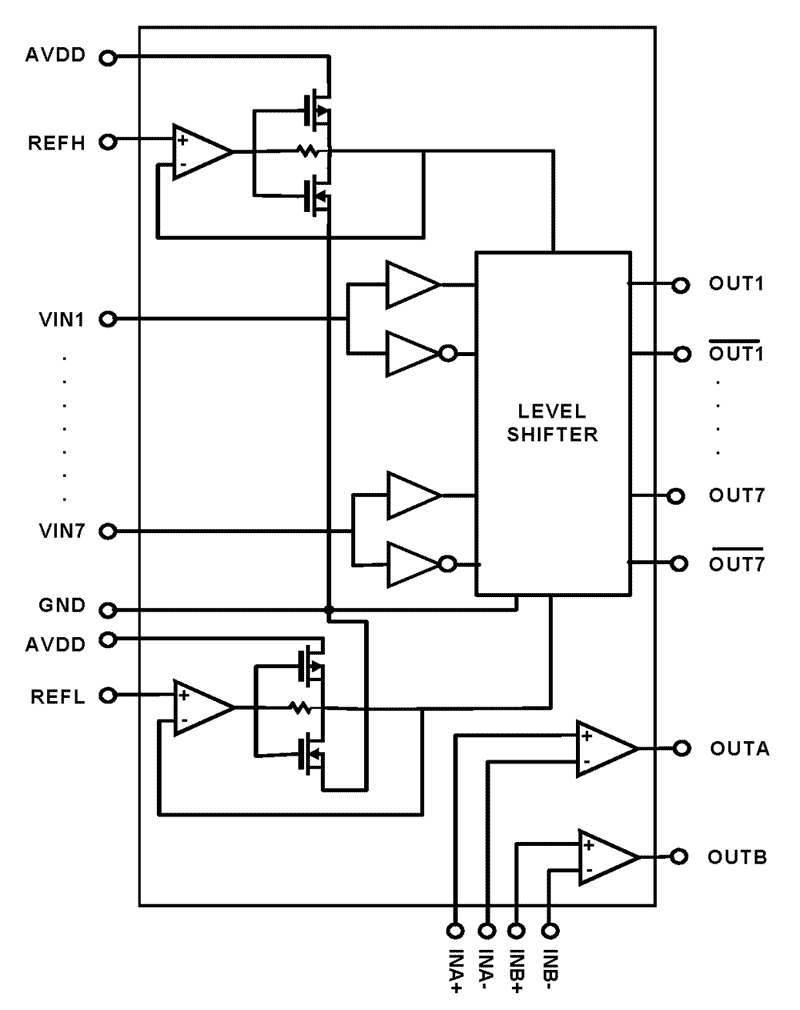

描述
