概览
描述
The ISL71010B50 is an ultra low noise, high DC accuracy precision voltage reference, with a wide input voltage range from 7. 0V to 30V. The ISL71010B50 uses the dielectrically isolated PR40 process to achieve 4. 2μVP-P noise at 0. 1Hz to 10Hz with an initial voltage accuracy of ±0. 05%. The ISL71010B50 offers a 5. 0V output voltage with 10ppm/°C temperature coefficient and also provides excellent line and load regulation. The device is offered in an 8 Ld SOIC package. The ISL71010B50 is ideal for high-end instrumentation, data acquisition, and processing applications requiring high DC precision where low noise performance is critical.
特性
- Reference output voltage: 5.0V ±0.05%
- Accuracy over temperature/radiation: ±0.15%
- Output voltage noise: 4.2μVP-P typical (0.1Hz to 10Hz)
- Supply current: 930μA (typical)
- Temperature coefficient: 10ppm/°C (maximum)
- Output current capability: 20mA
- Line regulation: 20ppm/V (maximum)
- Load regulation: 17ppm/mA (maximum)
- NiPdAu-Ag lead finish (Sn Free)
- Dielectrically isolated PR40 process
- Operating temperature range: -55°C to +125°C
- Passes NASA Low Outgassing Specifications
- Characterized radiation level
- Low dose rate (10mrad(Si): 30krad(Si)
- Single event burnout LET: 43MeV•cm2/mg
产品对比

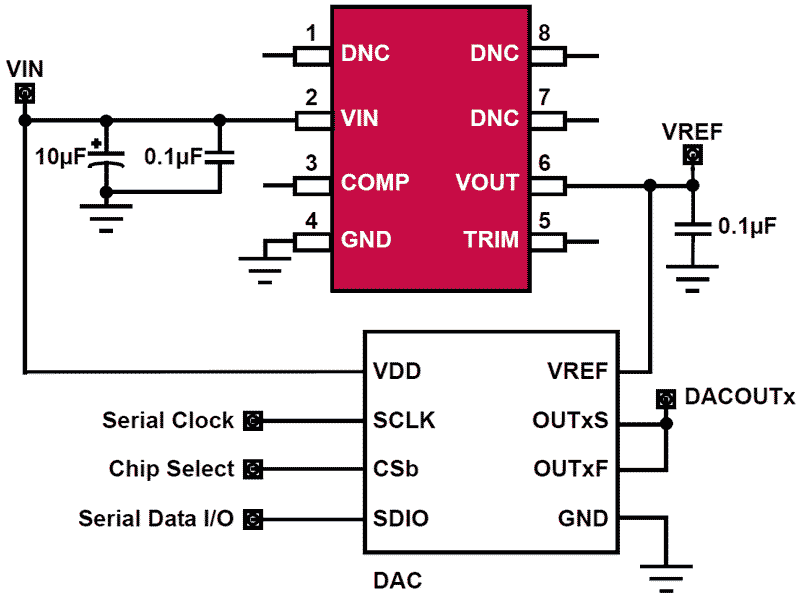

应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 1012 KB | |
| 宣传手册 | PDF 5.41 MB 日本語 | |
| 宣传手册 | PDF 467 KB | |
| 产品咨询 | PDF 414 KB | |
| 白皮书 | PDF 252 KB | |
| 手册 - 开发工具 | PDF 402 KB | |
| 应用说明 | PDF 338 KB | |
| 应用说明 | PDF 224 KB | |
8 items
|
||
设计和开发
软件与工具
开发板与套件
评估
Ultra-Low Noise, 5V Radiation Tolerant Precision Voltage Reference Evaluation Board
The ISL71010BM50EV1Z evaluation board measures the performance of the high precision 5.0V ISL71010B50 radiation tolerant voltage reference. The reference has a wide input voltage range from 7V to 30V and an initial accuracy of ±0.05%. The voltage noise of 4.2μVP-P in the 0.1Hz to 10Hz range and...
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
