特性
- Qualified for Renesas Radiation Hardened Screening and QCI Flow (R34TB0001EU)
- Ultra-low RMS noise: 3.9μVRMS from 10Hz - 100kHz
- Ultra-low spot noise: 11.5nV/√Hz at 10kHz
- Ultra-high PSRR
- 104dB at 120Hz, 71dB at 10kHz, 39dB at 100kHz, 28dB at 1MHz, and 27dB at 10MHz
- Maximum output current: 1A
- Input voltage range
- 2.7V to 30V
- 2.7V to 27V (LET = 86MeV•cm2/mg)
- Output voltage range (VOUT): 0.5V to VIN - VDO
- Low-dropout voltage (VDO): 387mV with IOUT = 1A
- Output voltage adjustability using a single resistor
- Programmable and internal ILIM with foldback
- TID rad hard assurance (RHA) Testing
- LDR: ≤10mrad(Si)/s: 75krad(Si)for
- SEE Characterization
- No DSEE for VIN = 27V at 86MeV•cm2/mg
- SEFI <2.5μm2 at 86MeV•cm2/mg
- VOUT SET <2% at 86MeV•cm2/mg

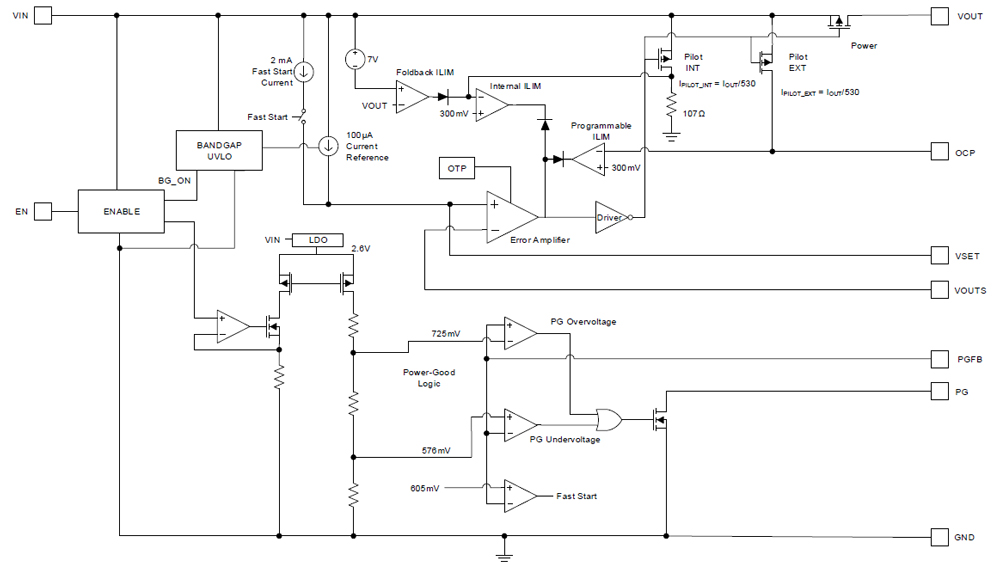

描述
The ISL75054SLH is a radiation hardened low-dropout linear regulator with ultra-low noise and high PSRR used as a power supply for ADC and RF applications. It has an operating supply voltage range of 2.7V to 30V and an output voltage range of 0.5V to VIN - VDO. The device supplies up to 1.0A of current at a typical 387mV dropout voltage. Built-in protection includes foldback, internal and externally programmable current limit, and over-temperature protection. The ISL75054SLH features excellent noise performance and PSRR for radiation hardened LDOs, with an ultra-low RMS noise of 3.9μVRMS from 10Hz to 100kHz and an ultra-high PSRR of 104dB at 120Hz.
The ISL75054M is offered in a 10-lead ceramic flatpack (CFP) package and die form, and operates across the full military temperature range of -55°C to +125°C.
产品参数
| 属性 | 值 |
|---|---|
| Rating | Space |
| IOUT (A) | 1 |
| Supply Voltage (min) (V) | 2.7 - 2.7 |
| Supply Voltage (max) (V) | 30 - 30 |
| VDO @ IOUTMAX (Typ) (mV) | 387 |
| VOUT (min) (V) | 0.5 |
| VOUT (max) (V) | 29.5 |
| Temp. Range (°C) | -55 to +125°C |
| TID LDR (krad(Si)) | 75 |
| DSEE (MeV·cm2/mg) | 86 |
| Flow | RH Hermetic |
| Qualification Level | Class V, EM |
| Die Sale Availability? | Yes |
| PROTO Availability? | Yes |
产品对比
| ISL75054SLH | ISL75051ASEH | ISL75052SEH | ISL75054M | |
| Flow | RH Hermetic | RH Hermetic | RH Hermetic | RT Plastic |
| Supply Voltage (min) | 2.7 - 2.7 | 2.2 - 2.2 | 4 - 4 | 2.7 - 2.7 |
| Supply Voltage (max) | 30 - 30 | 6 - 6 | 13.2 - 13.2 | 30 - 30 |
| VOUT (min) (V) | 0.5 | 0.8 | 0.6 | 0.5 |
| VOUT (max) (V) | 29.5 | 5 | 12.7 | 29.5 |
| VDO @ IOUTMAX (Typ) (mV) | 387 | 225 | 225 | 387 |
| Pkg. Type | CFP, DIE | CFP, DIE | CFP, DIE | TSSOP-EP |
| Lead Count (#) | 10 | 18 | 16 | 16 |
应用
- Power supplies for ADC/DAC reference, high-speed/precision data converters
- Power supply for RF PLLs, VCOs, mixers, LNAs, and PAs
- Power supply for low-noise instrumentation amplifiers
