MCK-RA8T1 瑞萨适用于RA8T1 MCU群组的灵活电机控制套件
MCK-RA8T1 是一款便于评估使用永磁同步电机（无刷直流电机）的电机控制的开发套件。 通过使用本产品以及可从网站下载的样例程序和QE for Motor，即刻开始使用 RA8T1 进行电机控制评估。
概览
简介

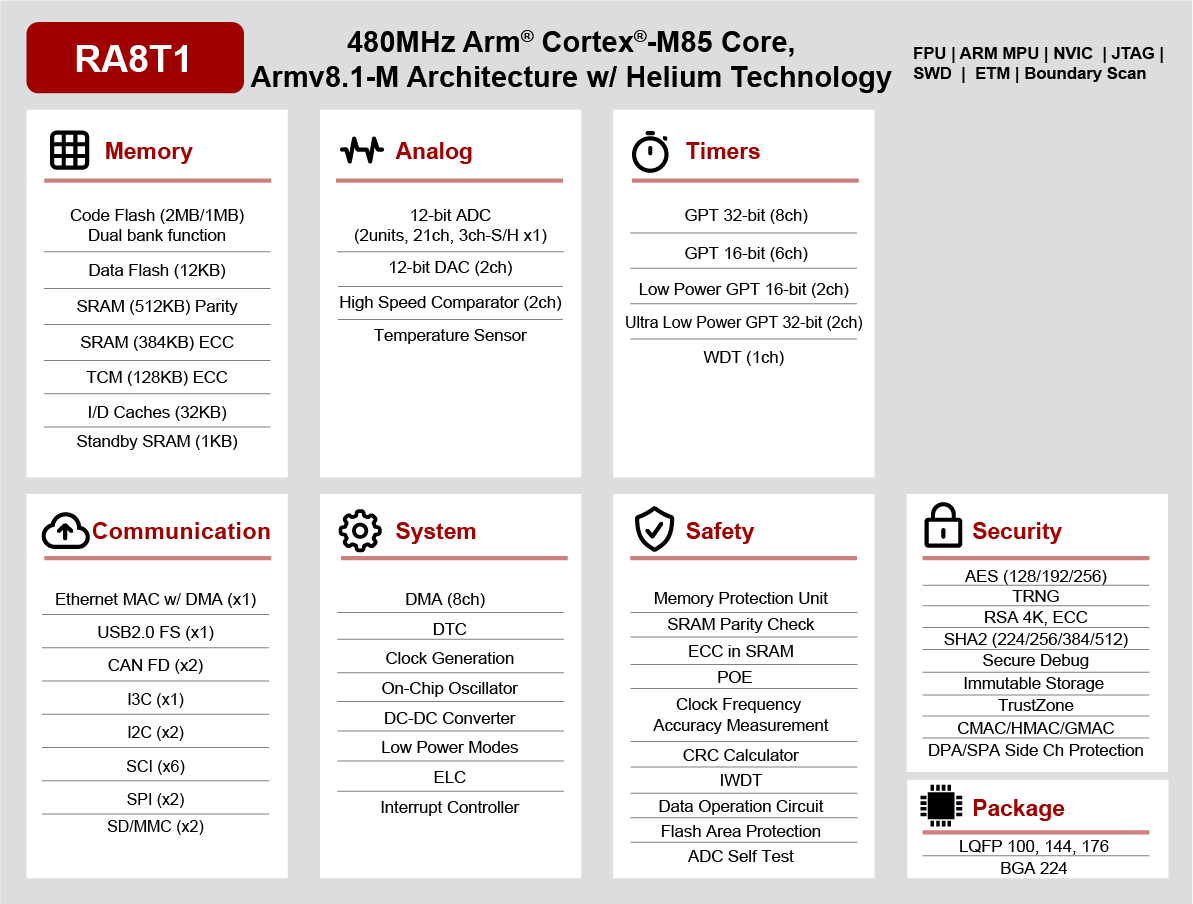

RA8T1 系列 32 位微控制器 (MCU) 基于高达 480MHz 的 Arm® Cortex®-M85 内核，采用 Helium™ 技术和 TrustZone®，并提供针对电机或逆变器控制进行优化的外设功能。 RA8T1 系列不仅集成了高达 2MB 的大容量闪存、1MB SRAM（包括 TCM）、PWM 定时器、模拟功能、多种连接功能，还支持高级安全特性和安全功能。 RA8T1 系列通过其高性能和丰富的集成功能，在用户系统上实现高级电机控制或附加功能。 RA8T1 系列支持灵活配置软件包 (FSP) 和合作伙伴生态系统，以及电机控制评估套件、软件和工具。
特性
- 480MHz Arm Cortex-M85，采用 Helium 技术和 TrustZone
- 1MB - 2MB 双区闪存和 1MB SRAM，包括 TCM
- 12KB 数据闪存和 1KB 休眠用 SRAM
- 32KB I/D 高速缓存
- 14 通道 PWM 定时器和 4 通道低功耗定时器
- 12 位模数转换器，具有 3 通道取样和保持功能
- 12 位数模转换器和高速模拟比较器
- 带 DMA 控制器的以太网 MAC
- USB2.0 全速设备/主机
- CAN FD
- SD/MMC 主机接口
- SPI/I2C/I3C 多主机接口
- 串行通信接口（UART、简单 SPI、简单 I2C）
- 瑞萨电子安全 IP (RSIP-E51A)
- 用于第一级引导加载程序 (FSBL) 的不可变 ROM
- 可从 100 引脚封装扩展至 224 引脚封装
产品对比
应用
- 工业自动化（交流驱动、交流伺服、AGV/AMR）
- 楼宇自动化（HVAC、压缩机、太阳能逆变器）
- 智能家居（空调、洗衣机/烘干机、冰箱、吸尘器）
- 农业（电动工具、割草机）
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RA 可扩展性强的配置软件包 (FSP) FSP 是一款增强型软件包，旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
|
Software Package | 瑞萨电子 |
| SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
|
Emulator | SEGGER |
| IAR Embedded Workbench for Arm IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
|
IDE and Coding Tool | IAR Systems |
| Arm® Keil® MDK Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
|
IDE and Coding Tool | Arm® Keil® MDK Arm® |
| QE for Motor: Development Assistance Tool for Motor Applications The development assistance tool that supports the development of motor software for MCUs. It allows to configure motor middleware and drivers easily, and tune and analyze motors with Renesas Motor Workbench. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
|
Solution Toolkit | 瑞萨电子 |
| e² studio - RA 产品家族信息 基于 Eclipse 的瑞萨集成开发环境（IDE）。
|
IDE and Coding Tool | 瑞萨电子 |
| RA Smart Configurator The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
|
Solution Toolkit | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| 瑞萨闪存编程器（编程图形用户界面） 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU 瑞萨电子 Synergy 平台、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、瑞萨电子 USB PD 系列、电机驱动器/制动器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | 瑞萨电子 |
| SEGGER emWin GUI Library for Renesas RA Products SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
|
Imaging | SEGGER |
|
13 items
|
||
样例程序
开发板与套件
用于 RA8T1 单片机组的 MCB-RA8T1 CPU 板
本产品是配备RA8T1 的电机控制CPU板。 使用 RA8T1 的电机控制可以通过与支持的逆变器板结合使用轻松实现。RA8T1 MCU 可以单独使用此板进行评估。
通过使用支持的通信板，可以将CPU板与PC电气隔离，以进行安全的电机控制评估和调试。
- 支持的逆变器板（套件）
MCI-LV-1 (P/N:...
特色文件:
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
PLP |
Carrier Type |
CPU |
Operating Freq (Max) (MHz) |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
ECC SRAM |
Lead Count (#) |
Pkg. Type |
Pkg. Dimensions (mm) |
Pitch (mm) |
I/O Ports |
Supply Voltage (V) |
Temp. Range |
External Memory Bus (bit) |
Floating Point Unit |
DMAC or DTC |
External Interrupt Pins (#) |
USB FS (host ch/device ch) |
USB HS (host ch/device ch) |
Ethernet (ch) |
CAN (ch) |
CAN-FD (ch) |
SCI or UART (ch) |
SPI (ch) |
I2C (#) |
I3C (ch) |
LIN (#) |
SSI (ch) |
QSPI Interface (#) |
OSPI (ch) |
SDHI (ch) |
Capacitive Touch Sensing Unit (ch) |
Graphics LCD Controller |
Camera I/F (Parallel) |
Segment LCD Controller |
Wireless |
IrDA |
PWM Output (pin#) |
32-Bit Timer (ch) |
16-bit High Res Timer (ch) |
16-bit Enhanced Timer (ch) |
16-Bit Timer (ch) (#) |
8-Bit Timer (ch) |
Asynchronous General Purpose Timer (ch) |
Watchdog Timer (ch) |
24-Bit Sigma-Delta A/D Converter (ch) |
16-Bit A/D Converter (ch) |
14-Bit A/D Converter (ch) |
12-Bit A/D Converter (ch) |
10-Bit A/D Converter (ch) |
12-Bit D/A Converter (ch) |
8-Bit D/A Converter (ch) |
High-Speed Analog Comparator (ch) |
Low-Power Analog Comparator (ch) |
PGA (ch) |
OPAMP (ch) (#) |
Temperature Sensor (ch) (#) |
RTC |
LVD or PVD |
Security & Encryption |
Power-On Reset |
Sub-clock (32.768 kHz) |
On-chip Oscillator |
Debug Interface |
Replacement Product |
Replacement Remark |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
购买 / 样片 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M85 | 480 | 2048 | 12 | 1024 | 是 | 224 | BGA | 13 x 13 x 1.47 | 0.8 | 174 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16,32 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 0 | 0 | 0 | 2 | 0 | No | No | No | No | 否 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 21 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | 否 | 是 | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | ||||
| 探讨中 | Full Tray (Tray) | Arm Cortex-M85 | 480 | 2048 | 12 | 1024 | 是 | 224 | BGA | 13 x 13 x 1.47 | 0.8 | 174 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16,32 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 0 | 0 | 0 | 2 | 0 | No | No | No | No | 否 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 21 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | 否 | 是 | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | 是 | 是 | 是 | JTAG/SWD | 3 | 12.81 | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M85 | 480 | 1024 | 12 | 1024 | 是 | 224 | BGA | 13 x 13 x 1.47 | 0.8 | 174 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16,32 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 0 | 0 | 0 | 2 | 0 | No | No | No | No | 否 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 21 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | 否 | 是 | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M85 | 400 | 2048 | 12 | 1024 | 是 | 176 | LQFP | 24 x 24 x 1.4 | 0.5 | 128 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 0 | 0 | 0 | 2 | 0 | No | No | No | No | 否 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 20 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | 否 | 是 | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | 是 | 是 | 是 | JTAG/SWD | 3 | 10.66 | 获取样片, | |||
| 探讨中 | Full Tray (Tray) | Arm Cortex-M85 | 400 | 2048 | 12 | 1024 | 是 | 176 | LQFP | 24 x 24 x 1.4 | 0.5 | 128 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 0 | 0 | 0 | 2 | 0 | No | No | No | No | 否 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 20 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | 否 | 是 | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | 是 | 是 | 是 | JTAG/SWD | 3 | 12.21 | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M85 | 400 | 1024 | 12 | 1024 | 是 | 176 | LQFP | 24 x 24 x 1.4 | 0.5 | 128 | 1.68 - 3.6 | Tj = -40 to 125°C | 8,16 | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 0 | 0 | 0 | 2 | 0 | No | No | No | No | 否 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 20 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | 否 | 是 | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | 是 | 是 | 是 | JTAG/SWD | 3 | 9.89 | 获取样片, | |||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M85 | 400 | 2048 | 12 | 1024 | 是 | 144 | LFQFP | 20 x 20 x 1.7 | 0.5 | 106 | 1.68 - 3.6 | Tj = -40 to 125°C | No | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 0 | 0 | 0 | 2 | 0 | No | No | No | No | 否 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 16 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | 否 | 是 | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | 是 | 是 | 是 | JTAG/SWD | 3 | 10.03 | 获取样片, | |||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M85 | 400 | 1024 | 12 | 1024 | 是 | 144 | LFQFP | 20 x 20 x 1.7 | 0.5 | 106 | 1.68 - 3.6 | Tj = -40 to 125°C | No | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 0 | 0 | 0 | 2 | 0 | No | No | No | No | 否 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 16 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | 否 | 是 | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | 是 | 是 | 是 | JTAG/SWD | 3 | 9.259 | 获取样片, | |||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M85 | 360 | 2048 | 12 | 1024 | 是 | 100 | LFQFP | 14 x 14 x 1.4 | 0.5 | 70 | 1.68 - 3.6 | Tj = -40 to 125°C | No | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 0 | 0 | 0 | 2 | 0 | No | No | No | No | 否 | 28 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 11 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | 否 | 是 | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M85 | 360 | 1024 | 12 | 1024 | 是 | 100 | LFQFP | 14 x 14 x 1.4 | 0.5 | 70 | 1.68 - 3.6 | Tj = -40 to 125°C | No | Double/Single/Half | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 0 | 2 | 6 | 2 | 2 | 1 | 0 | 0 | 0 | 0 | 2 | 0 | No | No | No | No | 否 | 25 | 10 | 0 | 0 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 11 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 1 | 否 | 是 | 128-bit Unique ID, AES(128/192/256), Arm TrustZone, DLM, DOTF, ECC/RSA(4K), FSBL, HMAC/GMAC/CMAC, SHA224/SHA256/SHA384/SHA512, SPA/DPA Protection, TRNG, Tamper Detection | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
视频和培训
RA8 Series Evaluation Kits Demo Overview
Watch an unboxing and overview of the RA8 series evaluation kits, including several example projects. The RA8 series kits can help you quickly develop proofs of concept for resource-constrained AIoT edge and endpoint devices.
