RZ/N1S

有效

Microprocessors Optimized for Small PLC and HMI; Reduces Peripheral Components and Adaptable for Gateway, Sensor Hub

立即订购
RZ/N1D Group, RZ/N1S Group, RZ/N1L Group Datasheet Rev.1.30RZ/N1D Group, RZ/N1S Group, RZ/N1L Group User's Manual: System Introduction, Multiplexing, Electrical and Mechanical Information

概览

RZ/N1S housed Cortex®-A7 and a large size of built-in RAM in a small package. Since peripheral parts can be reduced, it can be used for small PLC, HMI, etc. In addition, since it has a proven Renesas R-IN engine (“R-IN engine”) as an accelerator for industrial Ethernet communication, it can be used for protocol gateway, sensor hub, etc.

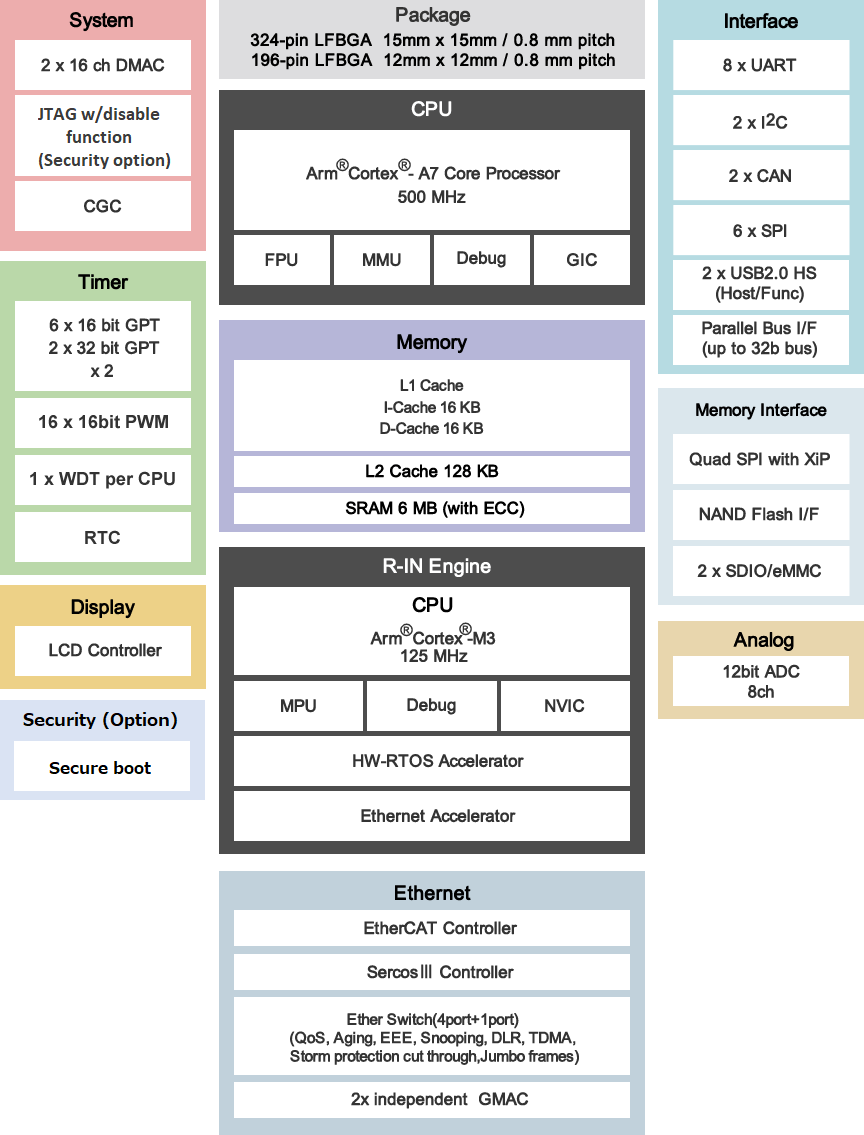

RZ/N1S Block Diagram
RZ/N1S Block Diagram
  • CPU：Cortex-A7 (500MHz), Cortex-M3(125MHz)
  • Voltage: 3V for IO, 1.15V for CPU
  • Package: 196 pin LFBGA (12 x12mm, 0.8 pitch), 324 pin LFBGA (15 x15mm, 0.8 pitch)
  • Memory: SRAM 6MB with ECC
  • Ethernet port: max 5
  • Independent GMAC: max 2 (IEEE1588 Compliant)
  • Security option: Available
  • Ethernet Switch
  • EtherCAT slave controller, SERCOSⅢ slave controller
  • Others: PLL, RTC
