Renesas Starter Kit+ for RZ/T1
The Renesas Starter Kit+ for RZ/T1 is the perfect starter kit for developers who are new to the RZ/T1. The kit includes an LCD display module, J-LINK Lite debugging...

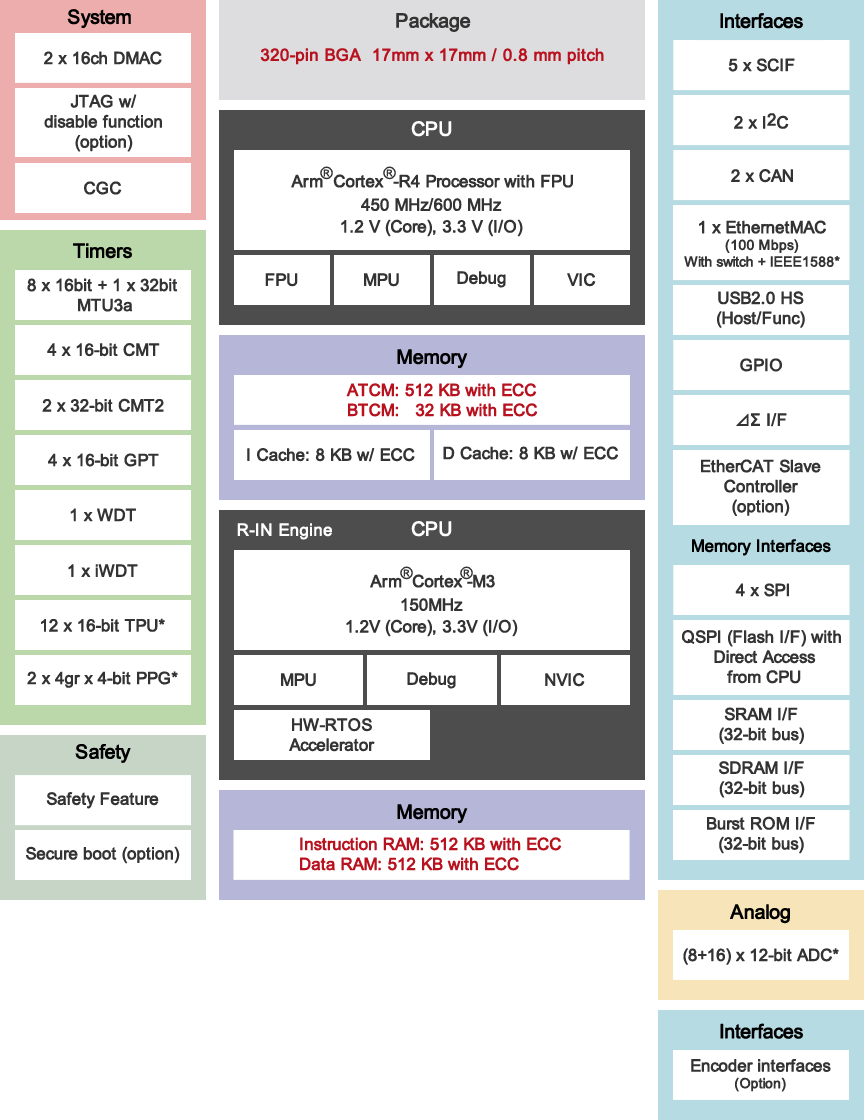

RZ/T1 处理器采用带 FPU 内核的 Arm® Cortex®-R4 处理器,专为实时处理设计,能以高达 600 MHz 的频率高速运行。 此外,无需通过高速缓冲存储器进行访问,内置的紧密耦合存储器可进行明确的实时响应处理,无需通过高速缓冲存储器即可实现从 CPU 的高速访问, 内置的瑞萨电子 R-IN 引擎的 RZ/T1 设备是工业以太网通信的加速器,可通过硬件 RTOS(HW-RTOS)执行工业以太网处理,而不会损失实时性能。RZ/T1 配备了可配置的绝对编码器接口,非常适合精密运动控制应用。 可配置编码器接口支持的行业标准包括 EnDat2.2、BiSS®-C、A-format™、Tamagawa 和 HIPERFACE® DSL。
Software title
|
Software type
|
公司
|
---|---|---|
USB Drivers Device drivers for USB communication using USB interface with built-in microcomputer and USB ASSP
|
USB | 瑞萨电子 |
AP4, Applilet Peripheral I/O driver generator compatible with third-party compilers and GNU compiler (for RZ, V850, RX, RL78, and 78K)
|
Code Generator | 瑞萨电子 |
Code Generator Plug-in Automatic driver generation tool for internal peripheral I/O modules through GUI settings [Standard features for Renesas IDE "e² studio" and CS+] [Support MCU/MPU: RL78, V850, 78K, RX]
|
Code Generator | 瑞萨电子 |
e² studio - information for RZ Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
4 items
|
The Renesas Starter Kit+ for RZ/T1 is the perfect starter kit for developers who are new to the RZ/T1. The kit includes an LCD display module, J-LINK Lite debugging...
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
本视频介绍瑞萨电子基于单MPU芯片RZ/T1搭建的运动控制解决方案套件。
