概览

描述

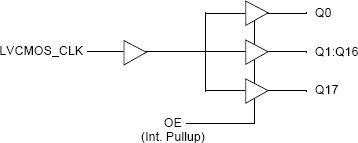

The MPC942 is a 1:18 low voltage clock distribution chip with 2.5V or 3.3V LVCMOS output capabilities. The device is offered in two versions; the MPC942C has an LVCMOS input clock while the MPC942P has a LVPECL input clock. The 18 outputs are 2.5V or 3.3V LVCMOS compatible and feature the drive strength to drive 50? series or parallel terminated transmission lines. With output-to-output skews of 200ps, the MPC942 is ideal as a clock distribution chip for the most demanding of synchronous systems. The 2.5V outputs also make the device ideal for supplying clocks for a high performance Pentium II? microprocessor based design.

特性

  • LVCMOS/LVTTL Clock Input
  • 2.5V LVCMOS Outputs for Pentium II Microprocessor Support
  • 150ps Maximum Targeted Output-to-Output Skew
  • Maximum Output Frequency of 250MHz @ 3.3 VCC

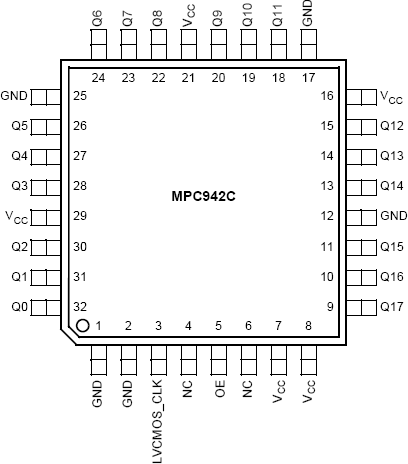

  • 32-Lead TQFP Packaging
  • Single 3.3V or 2.5V Supply

产品对比

应用

文档

设计和开发

模型

ECAD 模块

点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

Diagram of ECAD Models

模型

类型 文档标题 日期
模型 - IBIS ZIP 8 KB
1 item
