封装信息
| Lead Count (#) | 8 |
| Pkg. Code | pkg_7528 |

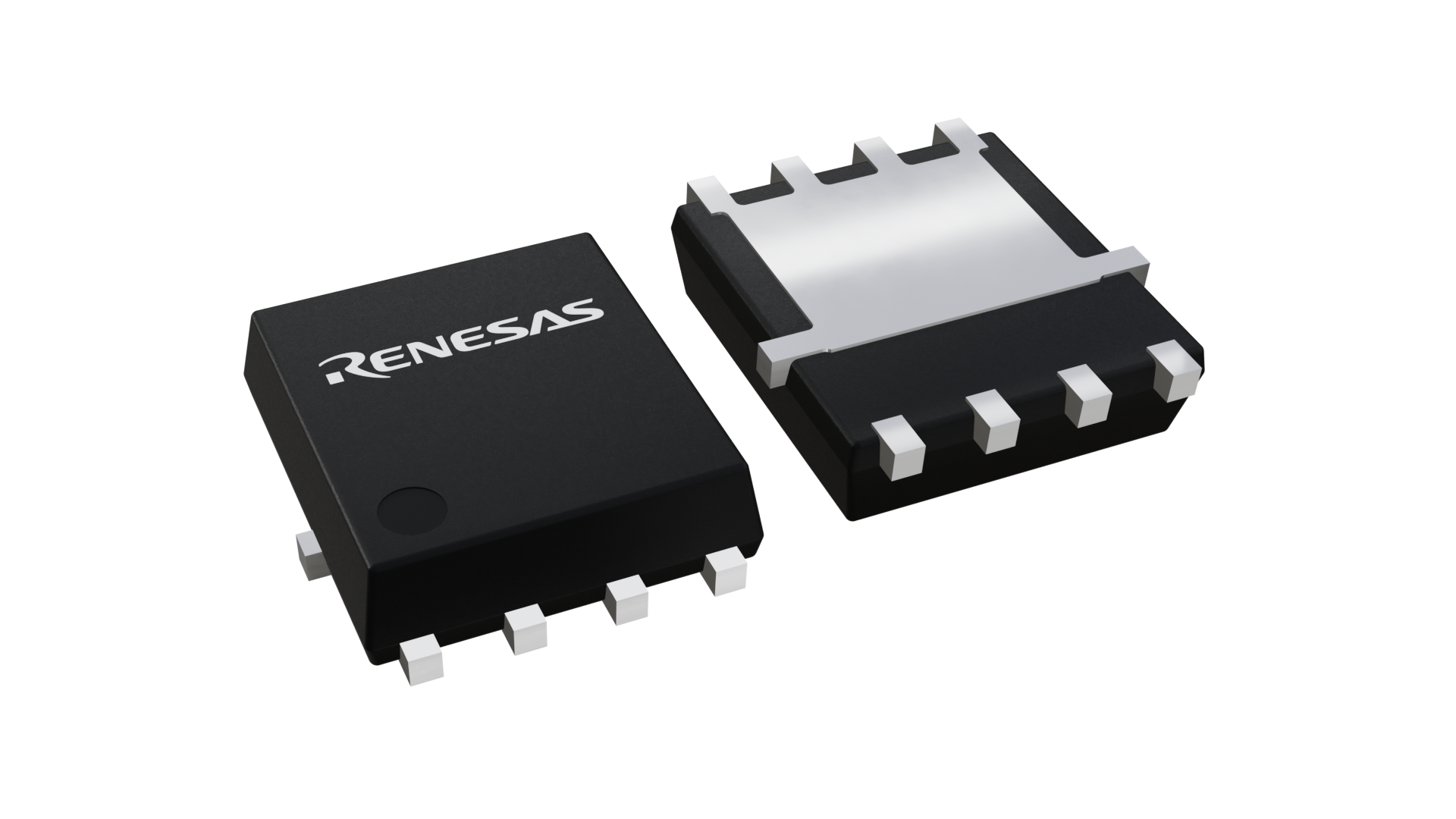

| Pkg. Type | HSON |
| Pkg. Dimensions (mm) | 5.4 x 5 x 1.45 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8541.29.0040 |
| RoHS (NP35N04YLG-E1-AY) | 英语日文 |
产品属性
| Lead Count (#) | 8 |
| Carrier Type | Embossed Tape |
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
| Country of Assembly | Japan, Malaysia |
| Country of Wafer Fabrication | Japan |
| Price (USD) | 0.80555 |
| Budgetary Price (100u) (USD) | 0.707 |
| Budgetary Price (1ku) (USD) | 0.628 |
| Budgetary Price (1u) (USD) | 0.754 |
| Channels (#) | 1 |
| Ciss (Typical) (pF) | 1900 |
| ID (A) | 35 |
| Lead Compliant | No |
| Length (mm) | 5 |
| MOQ | 2500 |
| Mounting Type | Surface Mount |
| Nch/Pch | Nch |
| Pch (W) | 77 |
| Pkg. Dimensions (mm) | 5 x 5 x 1.45 |
| Pkg. Type | HSON |
| Qg typ (nC) | 34 |
| Qualification Level | Automotive |
| RDS (ON) (Max) @10V or 8V (mohm) | 9.7 |
| RDS (ON) (Typical) @ 10V / 8V (mohm) | 7.8 |
| Series Name | NP Series |
| Standard Pkg. Type | Power SON-8 5x6 |
| Tape & Reel | No |
| Thickness (mm) | 1.45 |
| VDSS (Max) (V) | 40 |
| VGSS (V) | 20 |
| Vgs (off) (Max) (V) | 2.5 |
| Width (mm) | 5 |
有关 NP35N04YLG 的资源
描述
The NP35N04YLG is N-channel MOS Field Effect Transistor designed for high current switching applications.
