概览

TP65H70G4PS 650V 72mΩ 氮化镓 （GaN） FET 是使用我们的 Gen IV 平台构建的常闭器件。 它结合了最先进的高压 GaN HEMT 和低压硅 MOSFET 技术，提供卓越的可靠性和性能。

瑞萨电子的 GaN 功率产品通过更低的栅极电荷、更低的交越损耗和更小的反向恢复电荷，提供比硅更高的效率。

TP65H070G4PS 采用行业标准 TO-220 封装，具有通用源封装配置。

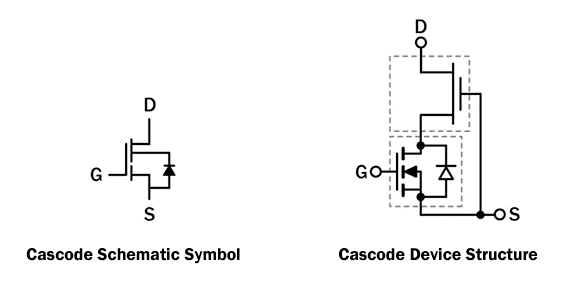

TP65H070G4PS Typical Diagram

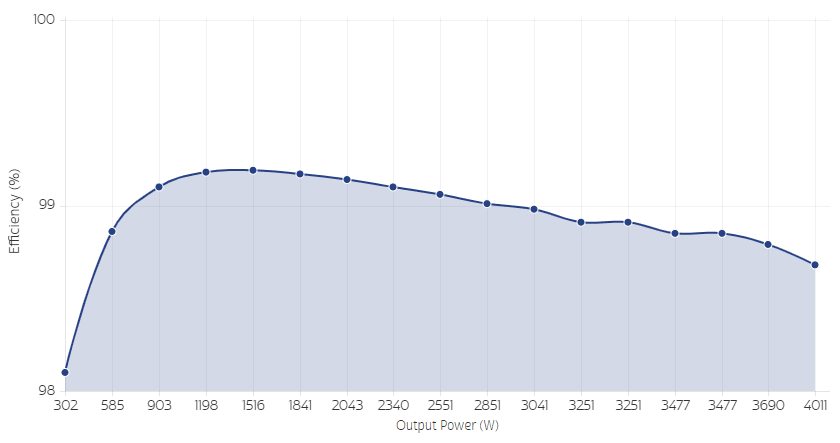

TP65H070G4PS Efficiency

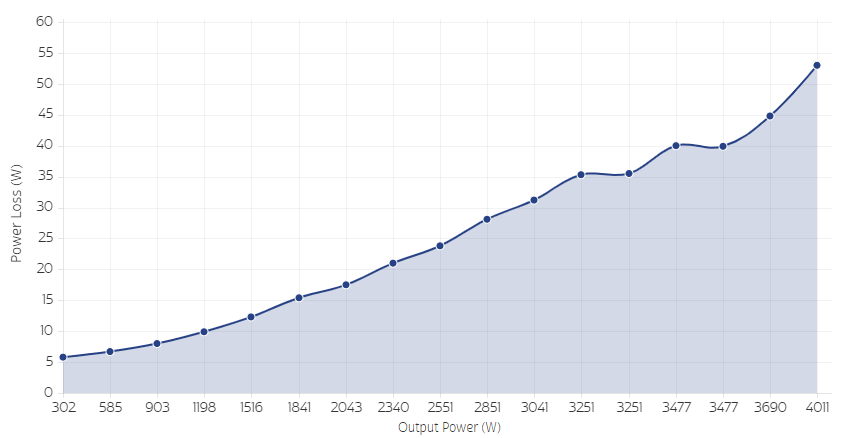

TP65H070G4PS Power Loss
TP65H070G4PS Typical Diagram
TP65H070G4PS Efficiency
TP65H070G4PS Power Loss
  • 符合 JEDEC 标准的 GaN 技术
  • Dynamic RDS（on）eff 经过生产测试
  • 坚固的设计，定义
    • 固有寿命测试
    • 宽栅极安全裕度
    • 瞬态过压能力
  • 非常低的 QRR
  • 减少分频损耗
  • 支持 AC-DC 和 DC-DC 设计
    • 提高功率密度
    • 减小系统尺寸和重量
    • 总体降低系统成本
  • 在硬开关和软开关电路中实现更高的效率
  • 使用常用栅极驱动器易于驱动
  • 符合 RoHS 标准和无卤素包装
