概览

RAA211835 是一款 DC/DC 异步降压（Buck）稳压器，支持 4.5V 至 75V 输入电压范围和可调输出电压。 它可以提供高达 3A 的连续输出电流，并具有出色的负载和线性调整率性能。

RAA211835 采用峰值电流模式控制架构。 其 PWM 开关频率是可编程的，可以在瞬态响应和效率之间实现最佳平衡。 它还支持 PFM 操作，以最大限度地提高轻负载效率，此外还支持外部偏置 LDO 输入，以进一步降低整个负载范围内的功率耗散。 该稳压器还有一个内部环路补偿电路，以减少外部元件数量和 BOM 成本。

RAA211835 提供实用的功能，如：内部或可编程软启动和电源良好指示器。 为确保安全运行，RAA211835 还提供保护功能，例如：逐周期峰值和谷值电流限制、输入电压 UVLO、输出电压欠压（短路）保护和热关断保护。

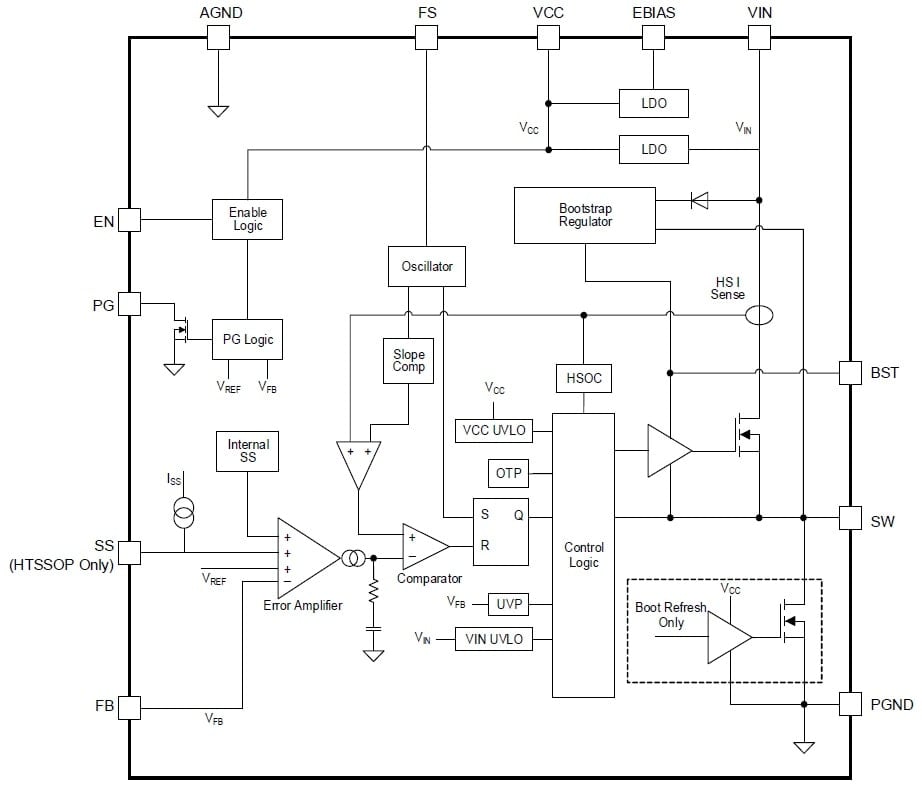

RAA211835 Block Diagram

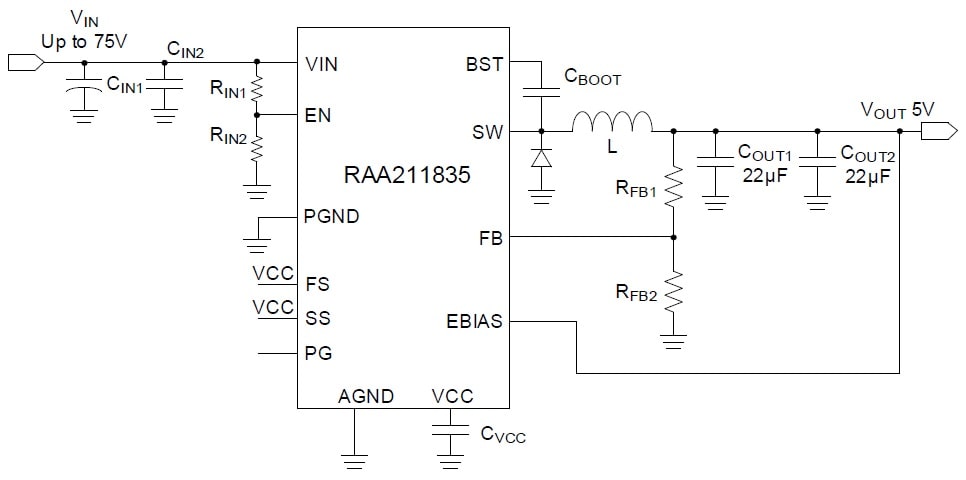

RAA211835 Typical Application Circuit

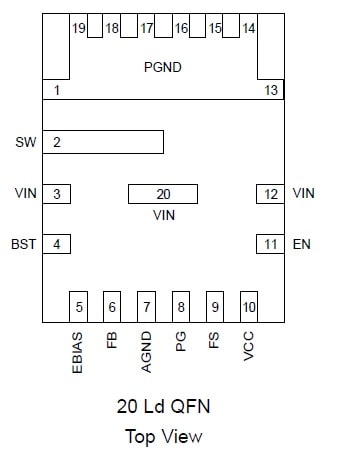

RAA211835 20 Ld QFN Pin Assignment

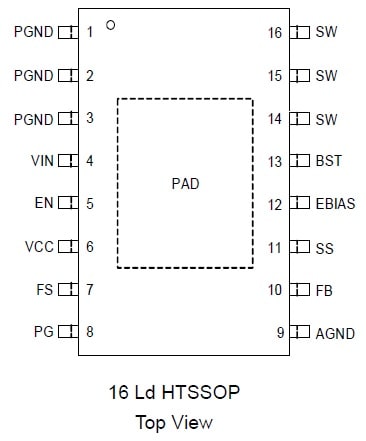

RAA211835 16 Ld HTSSOP Pin Assignment
RAA211835 Block Diagram
RAA211835 Typical Application Circuit
RAA211835 20 Ld QFN Pin Assignment
RAA211835 16 Ld HTSSOP Pin Assignment
  • 宽输入电压工作电压范围：4.5V 至 75V
  • 可调输出电压范围为 0.8V 至 90% 的输入电压
  • 高达 3A 的连续输出电流
  • 默认 400kHz，或 200kHz 至 800kHz 的可调开关频率
  • -40°C 至 125°C 时负载调节精度为 ±1%，25°C 时负载调节精度为 ±0.5%
  • 90μA 典型静态电流
  • 内部补偿，QFN 固定 0.5ms SS 和 HTSSOP 可调 SS
  • 可在轻负载条件下进行 PFM 操作，带有集成的外部偏置 LDO 和电源良好指示器
  • 逐周期峰值和谷值电流限制、输入电压欠压锁定、输出电压欠压（短路）保护和热关断功能

应用

  • 高达 75V 的分布式电源和通用 POL
  • 电信基站电源
  • 电动工具
  • 监测
  • 便携式移动/机器人设备
  • 工业电力系统
