特性
- Wide input voltage range 4V to 20V
- Output current up to 150mA
- Low 3.6μA shutdown current
- Accurate output voltage (-1.75%/+2.5% over-temperature)
- Low dropout voltage: 240mV typical at 150mA load
- Excellent line and load regulation
- Stable with 1μF minimum MLCC output capacitor
- Integrated fault protections including thermal
- shutdown and current limit
- Available in the compact and cost-effective 2.9mm x 1.63mm TSOT23 package

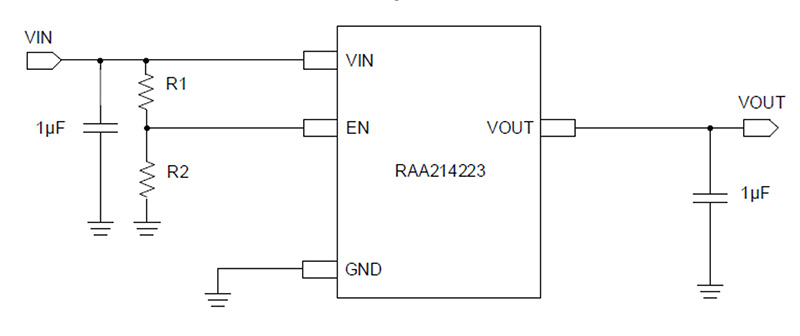

描述
The RAA214223 is a low-dropout linear voltage regulator that operates with a wide input voltage range from 4V to 20V, and the device provides up to 150mA of output current at a fixed output voltage of 3.3V.
Featuring a wide input voltage range with excellent line and load regulation, the device also has integrated fault protection that includes over-temperature shutdown (OTSD) and short-circuit current limit.
The output voltage of the device is fixed at 3.3V, and the device does well with regulating both the over-temperature and the operating range of the input voltage and load. It is also stable with a multilayer ceramic capacitor (MLCC) output capacitor as low as 1μF.
The RAA214223 is available in the 5-pin TSOT23 package.
产品参数
| 属性 | 值 |
|---|---|
| Input Voltage (Min) (V) | 4 |
| Input Voltage (Max) (V) | 20 |
| Output Voltage (Min) (V) | 3.24 |
| Output Voltage (Max) (V) | 3.38 |
| Output Current 1 (Max) (A) | 0.15 |
| Drop Out Voltage (Typical) | 240 @ 150mA |
| Fixed Output Voltage Option | Yes |
| PSRR (db) | 65 |
| Quiescent Current | 100µA |
| Noise (10Hz to 100kHz) (μVrms) | 428 |
| Noise (100Hz to 100kHz) (μVrms) | 428 |
| Qualification Level | Standard |
封装选项
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) |
|---|---|---|
| TSOT | 2.9 x 1.6 x 0.00 | 5 |
应用
- Battery-powered equipment
- MCU power supply
- Electric meters
- USB devices
- Laptop computers and tablets
- Portable modules and appliances
