特性
- High-side driver
- Low on-state resistance
- Small package; TO252-3
- Short circuit protection, over-temperature protection with current limitation control
- Built-in auto flashing operation with only one external capacitor
- Built-in double frequency flashing in low-load conditions
- Active clamp operation at inductive load switch off
- RoHS compliant
- Product Spec.
- Nch/Pch: Nch
- Automotive: YES
- Package Type.: TO252-3
- Type: High side
- Channels: 1
- RON (mohm) typ. @ Tj = 25 °C: 16
- RON (mohm) max. @ Tj = 150 °C: 48
- Vcc (V) min.: 9
- Vcc (V) max.: 28
- Tch (°C) min. :-40
- Tch (°C): 150
- Mounting: SMD
描述

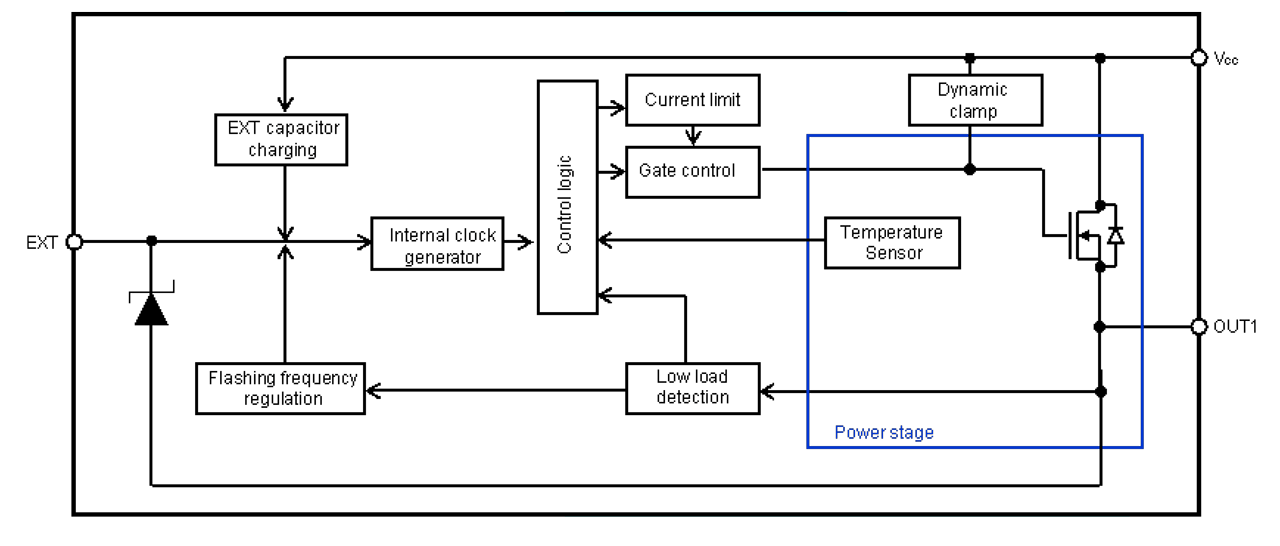

The RAA290002 is designed for a 2 Wheeler Flasher driver with double-frequency flashing in low-load current conditions.
产品参数
| 属性 | 值 |
|---|---|
| Function | Motorcycle Flasher Driver |
| RON (mohm) typ. @ Tj = 25 °C (mohm) | 16 |
| Channels per device (#) | 1 |
封装选项
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) |
|---|---|---|
| MP-3ZP | 6 x 6 x 2.65 | 3 |
