封装信息
| Pkg. Code | pkg_11787 |
| Lead Count (#) | 44 |

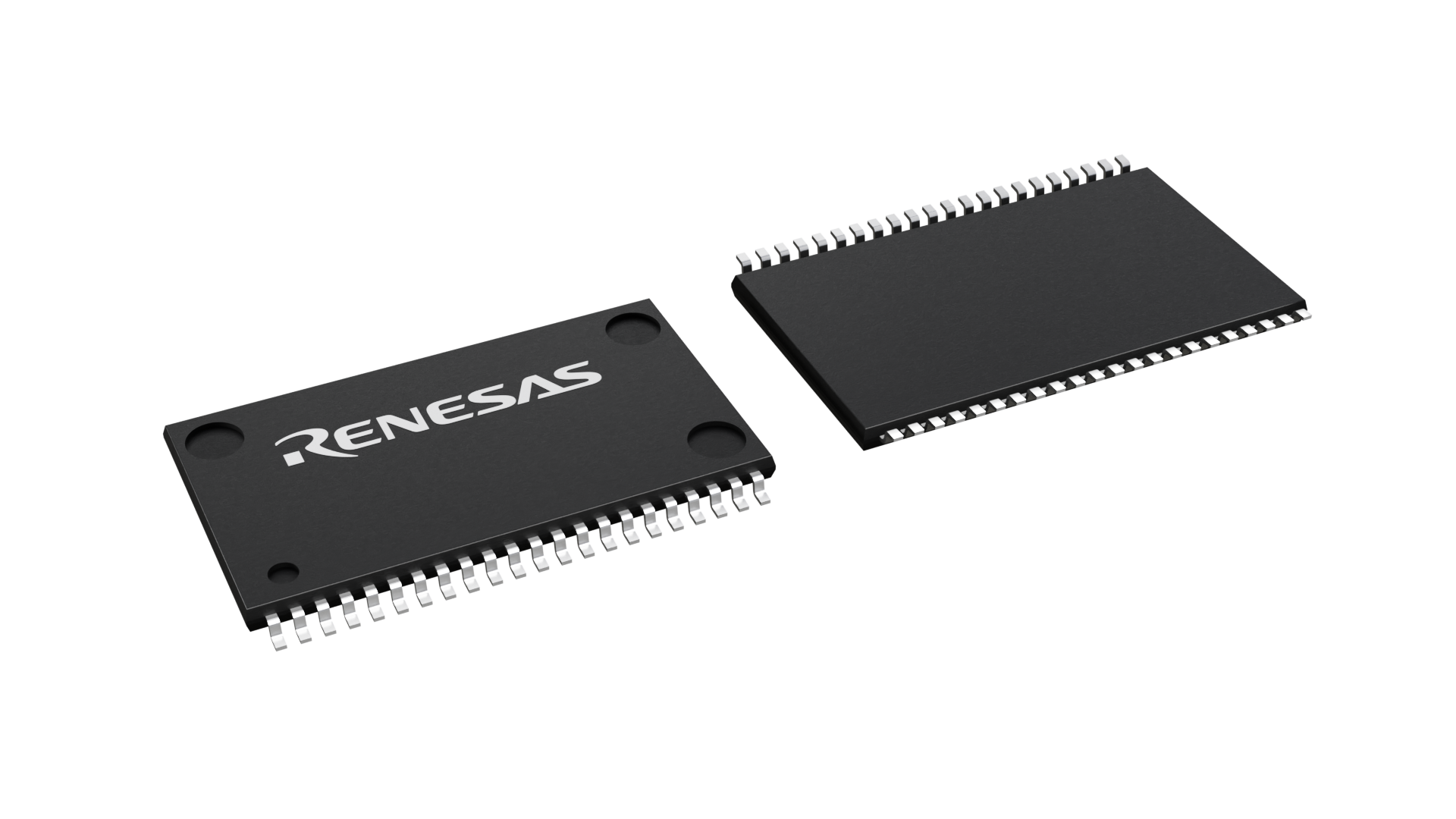

| Pkg. Type | TSOP(44) |
| Pkg. Dimensions (mm) | 18.41 x 10.16 x 1.2 |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| ECCN (US) | 3A991 |
| HTS (US) | 8542.32.0041 |
| RoHS (RMLV0416EGSB-4S2#AA1) | 英语日文 |
| Pb (Lead) Free | Yes |
产品属性
| Carrier Type | Tray |
| Moisture Sensitivity Level (MSL) | 3 |
| Price (USD) | 1ku | 3.11296 |
| Access Time (ns) | 45 |
| Density (Kb) | 4000 |
| Lead Compliant | Yes |
| Lead Count (#) | 44 |
| Length (mm) | 18 |
| Longevity | 2032 12月 |
| MOQ | 1 |
| Memory Capacity (kbit) | 4000 |
| Memory Density | 4M |
| Organization | 256K x 16 |
| Organization (bit) | x 16 |
| Organization (kword) | 256 |
| Pb (Lead) Free | Yes |
| Pkg. Dimensions (mm) | 18 x 10 x 1.2 |
| Pkg. Type | TSOP(44) |
| Remarks | Dual Chip Select (CS1#, CS2) |
| Replacement Remark | Back-end site change etc |
| Supply Voltage (V) | 2.7 - 3.6 |
| Tape & Reel | No |
| Temp. Range | -40 to +85°C |
| Thickness (mm) | 1.2 |
| Width (mm) | 10 |
描述
The RMLV0416E Series is a family of 4-Mbit static RAMs organized 262, 144-word × 16-bit, fabricated by Renesas’s high-performance Advanced LPSRAM technologies. The RMLV0416E Series has realized higher density, higher performance and low power consumption. The RMLV0416E Series offers low power standby power dissipation;therefore, it is suitable for battery backup systems. It is offered in 44-pin TSOP (II) or 48-ball fine pitch ball grid array.
