描述
The RRP58000 is a low-quiescent current, adjustable output voltage low-dropout regulator capable of sourcing up to 50mA to a load.
The LDO has a wide input voltage range of up to 80V. The output voltage is adjustable with external feedback resistors anywhere from 1.24V to 15V. The LDOs feature a ±2.5% output voltage accuracy (over line, load, and temperature), input UVLO with hysteresis, enable control, internal current limit, and over-temperature shutdown protection with hysteresis.

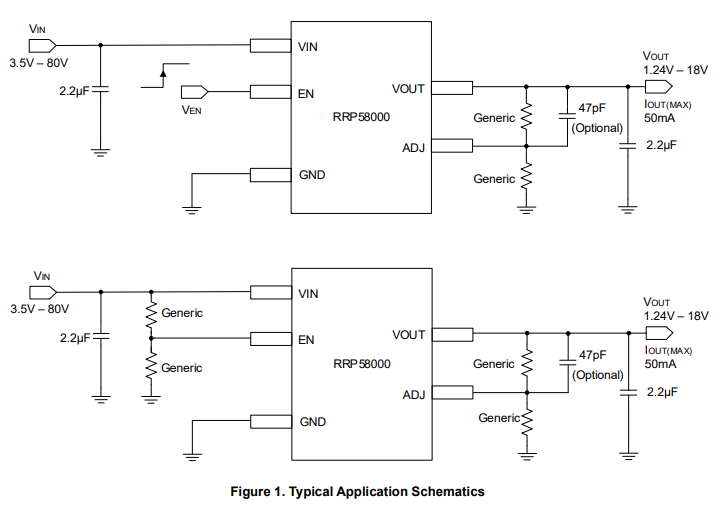

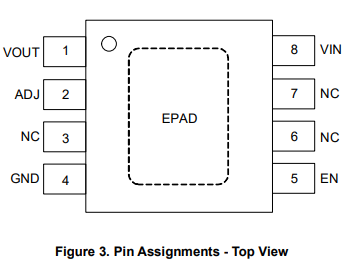

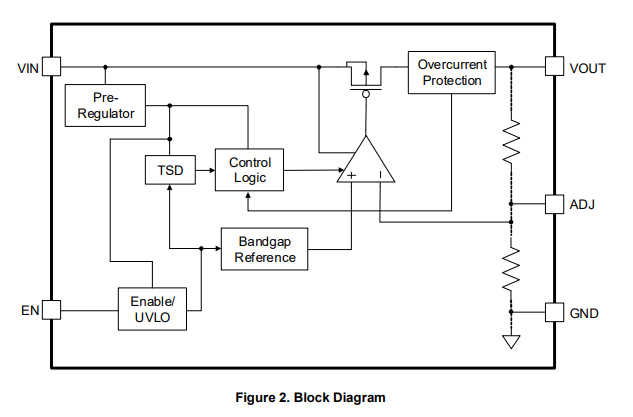

特性
- Wide input voltage range: up to 80V
- Adjustable output voltage (1.24V-15V)
- Typical low-quiescent current: 5.8µA at no load
- Max output current: 50mA
- Excellent line and load regulation over temperature with output voltage accuracy: ±2.5%
- Typical shutdown current: ≤0.2µA
- Stable with 2.2µF minimum ceramic output capacitor
- Typical dropout voltage: ≤0.8V at 50mA
- Overcurrent and over-temperature protection
- Junction temperature range: -40°C to 125°C
产品对比
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| iSim:PE 离线模拟工具 iSim Personal Edition（iSim:PE ）可加快设计周期并降低项目早期风险，确定可用于当前和下一代设计的部件。
|
Simulator | 瑞萨电子 |
1 item
|
||
开发板与套件
演示
RRP58000 Demonstration Board 8-Ld HMSOP with Low-dropout Linear Regulator (LDO)
The RTKA58000DR0000BU demonstration board is a simple platform for evaluating the RRP58000 low-dropout regulator (LDO). It provides a view of the HMSOP 8-lead package. The board contains all the necessary circuitry for characterizing critical performance parameters.
RRP58000 is an LDO featuring a...
