封装信息
| CAD 模型: | View CAD Model |
| Pkg. Type: | PQFN88 |
| Pkg. Code: | |
| Lead Count (#): | |
| Pkg. Dimensions (mm): | 8 x 8 |
| Pitch (mm): |
环境和出口类别
| Moisture Sensitivity Level (MSL) | 3 |
| ECCN (US) | EAR99 |
| HTS (US) | 8541.29.0095 |
| Pb (Lead) Free |
产品属性
| Pkg. Type | PQFN88 |
| Carrier Type | Tape & Reel |
| Moisture Sensitivity Level (MSL) | 3 |
| Mounting Type | Surface Mount |
| Temp. Range (°C) | -55 to +150°C |
| Country of Assembly | CHINA |
| Country of Wafer Fabrication | JAPAN |
| Blocking Capability | Uni-Directional Switch |
| Ciss (Typical) (pF) | 588 |
| Coss (Typical) (pF) | 64 |
| FET Type | N-Channel |
| Id max @ 25°C (A) | 29 |
| Pkg. Dimensions (mm) | 8 x 8 |
| Qg typ (nC) | 11 |
| Qoss (nC) | 64 |
| Qualification Level | Standard |
| Quality Level | Standard |
| RDSON (Typ) (mΩ) | 72 |
| RDSON (max) (mΩ) | 85 |
| Ron * Qoss (FOM) | 4608 |
| V(TR)DSS max (V) | 800 |
| Vds min (V) | 650 |
| Vth typ (V) | 4 |
| trr (Typical) (nS) | 47 |
有关 TP65H070G4LSGEA 的资源
描述

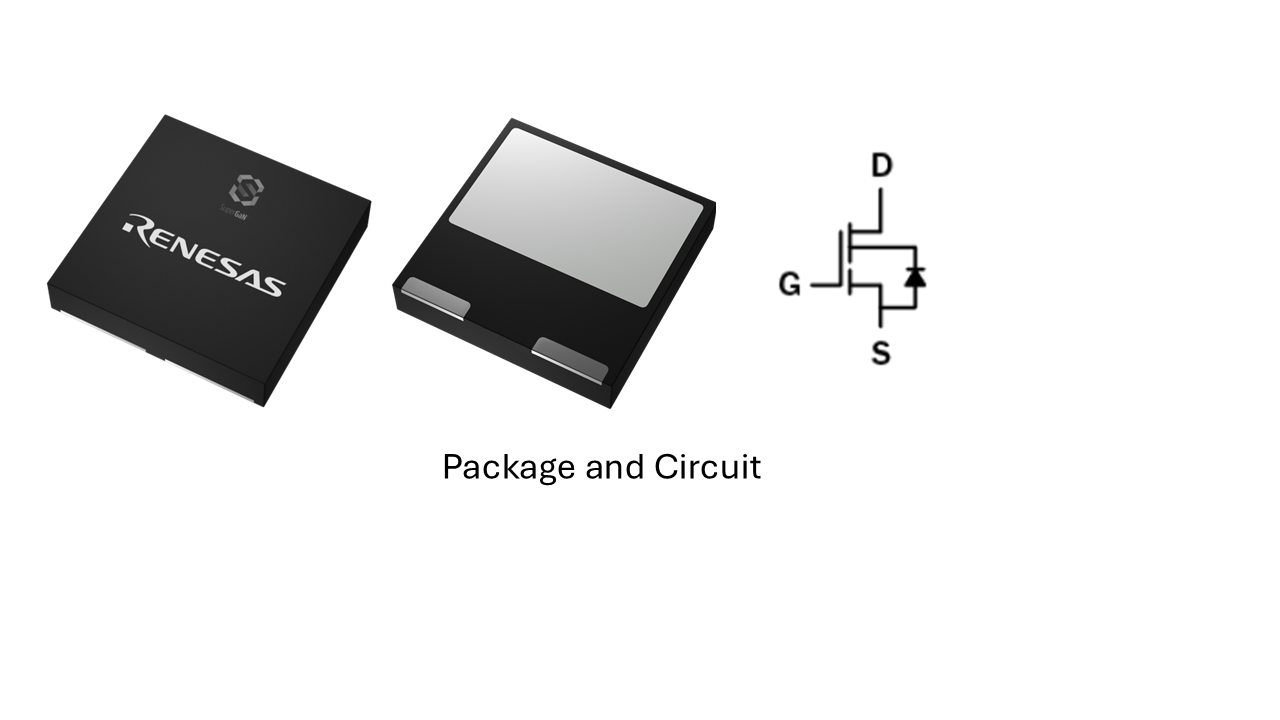

The TP65H070G4LSGEA 650V, 70mΩ, Gallium Nitride (GaN) FET is a normally-off device using Renesas' Gen IV SuperGaN® platform. It integrates state-of-the-art high-voltage GaN High Electron Mobility Transistor (HEMT) and low-voltage silicon MOSFET technologies, offering superior reliability and performance. Renesas GaN delivers higher efficiency than silicon by reducing gate charge, crossover loss, and reverse recovery charge. The TP65H070G4LSGEA is available in a PQFN88 3-pin performance package with a common-source configuration.
