特性
- High-temperature operation (Tch = 175 °C MAX.)
- Built-in charge pump circuit
- Low on-state resistance
- RDS(ON) = 80 mW MAX. (VIN = VIH, IO = 1.5A, Tch = 25 °C)
- Built-in protection circuit
- Current limitation
- Over-temperature protection
- Active clamp operation at inductive load switch off
- Built-in diagnostic function
- Package: SOP 8

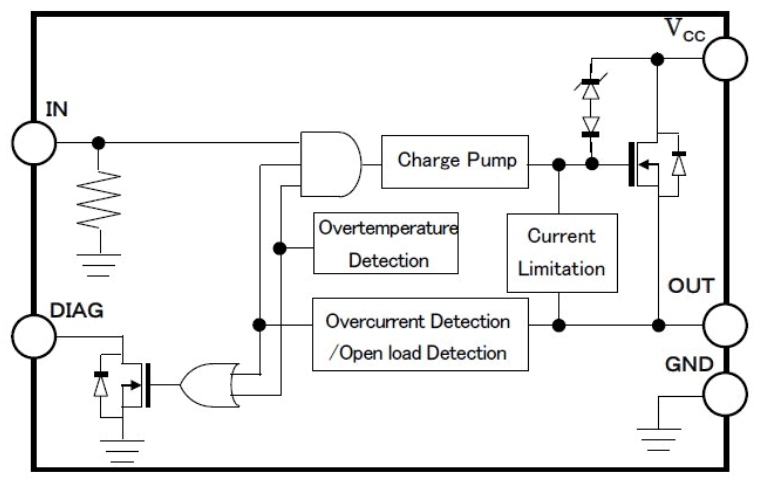

UPD166035GR Block Diagram
描述
The µPD166035 is an N-channel high-side driver with a built-in charge pump and embedded protection function. When device over-temperature or overcurrent is generated in output MOS, the protection function operates to prevent destruction and degradation of the product, and also outputs a self-diagnostic signal.
产品参数
| 属性 | 值 |
|---|---|
| Function | Robust & Safety |
| RON (mohm) typ. @ Tj = 25 °C (mohm) | 80 |
| Channels per device (#) | 1 |
封装选项
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) |
|---|---|---|
| SOP-8 | 5.37 x 4.4 x 1.8 | 8 |
