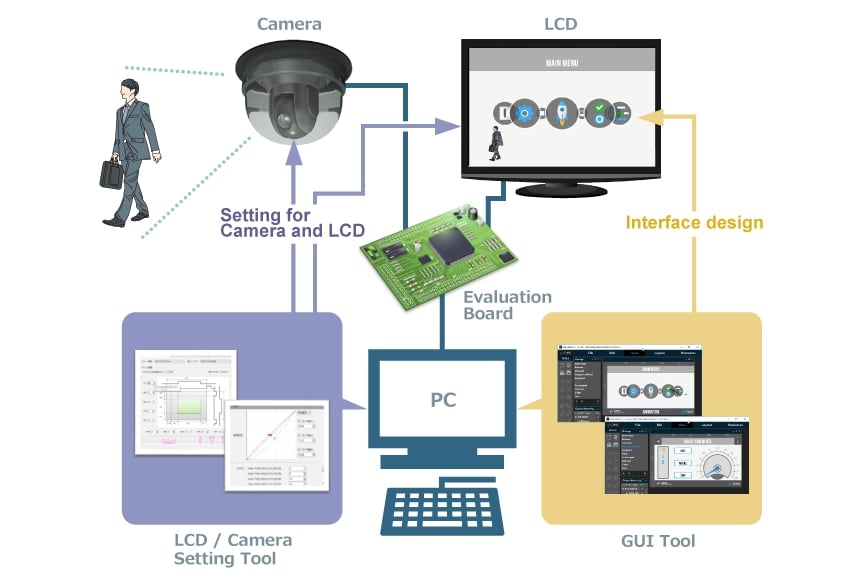

The RZ/A Software Package for RZ/A microprocessors provides a software development kit to support HMI (Camera, Display, and GUI), recognition processing, and more. Includes device drivers, middleware, and sample programs for the RZ/A1LU, RZ/A1H, RZ/A2M, RZ/A3UL, and RZ/A3M microprocessor series.
目标设备
设计和开发
Functions and Details
| RZ/A3M | RZ/A3UL | RZ/A2M | RZ/A1 (*1) | RZ/A1H, RZ/A1LU | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| RTOS | FreeRTOS | AzureRTOS (ThreadX) | FreeRTOS | AzureRTOS (ThreadX) | FreeRTOS | Azure RTOS (ThreadX) | FreeRTOS | FreeRTOS | FreeRTOS | Azure RTOS (ThreadX) | |
| Supported Board | EK-RZ/A3M | EK-RZ/A3M | RZ/A3UL-Evaluation-Board-Kit | RZ/A3UL-Evaluation-Board-Kit | RZ/A2M Evaluation Board Kit | GR-MANGO | GR-MANGO | Renesas Starter Kit+ for RZ/A1H | Stream It! - RZ | GR-PEACH | Renesas Starter Kit+ for RZ/A1H Stream It! - RZ |
| Camera | — | lens (UVC) | lens | lens (UVC) | lens | lens | lens (UVC) | lens | lens | lens | — |
| Display | lens | lens | lens | lens (GUIX) | lens | lens | lens (GUIX) | lens | lens | lens | lens (GUIX) |
| 2D Graphics | lens (D/ave2D) | lens (D/ave2D) | — | — | lens | — | — | lens | lens | lens | — |
| Ethernet | — | — | lens (FreeRTOS+TCP) | lens (NetX Duo) | lens (FreeRTOS+TCP) | — | lens (NetX Duo) | lens (lwIP) | lens (lwIP) | lens (lwIP) | lens (NetX Duo) |
| Wi-Fi | — | — | — | — | lens (*2) | — | — | — | — | — | — |
| USB | lens | lens (USBX) | lens | lens (USBX) | lens | lens | lens (USBX) | lens | lens | lens | lens (USBX) |
| SD Memory Card/SDIO | lens | lens | lens | lens | lens (*3) | lens (*3) | lens | — | — | — | lens (*4) |
| Filesystem | lens (FreeRTOS+FAT) | lens (FileX) | lens (FreeRTOS+FAT) | lens (FileX) | lens (FatFS) | lens (FatFS) | lens (FileX) | lens (FatFS) | lens (FatFS) | lens (FatFS) | lens (FileX) |
| Details | Learn more | Learn more | Learn more | Learn more | Learn more | Learn more | Learn more | Learn more | Learn more | Learn more | Learn more |
lens Supported, or equivalent functionality is supported | — Unsupported |
*1: RZ/A1: RZ/A1H, RZ/A1M, RZ/A1L, RZ/A1LU, RZ/A1LC
*2: To use the Wi-Fi function, need to connect Silex SX-SDMAC via SDIO or Digilent Pmod EPS32 module via UART.
*3: If UHS-l mode support is needed, please contact us. SD Host/Ancillary Product License Agreement (SD HALA) is required to develop SD host-related products.
*4: If SD support is needed, please contact us. SD Host/Ancillary Product License Agreement (SD HALA) is required to develop SD host-related products.
