This RZ/A1H FreeRTOS™ software development kit helps speed up time to market.
- RZ/A1H Group RZ/A1H Software Package Quick Start Guide (PDF)
- RZ/A1H Group Software Package Application Note (PDF)
Download: RZ/A1H Group RZ/A1H Software Package (ZIP)
For the AzureRTOS software development kit, please refer to here.

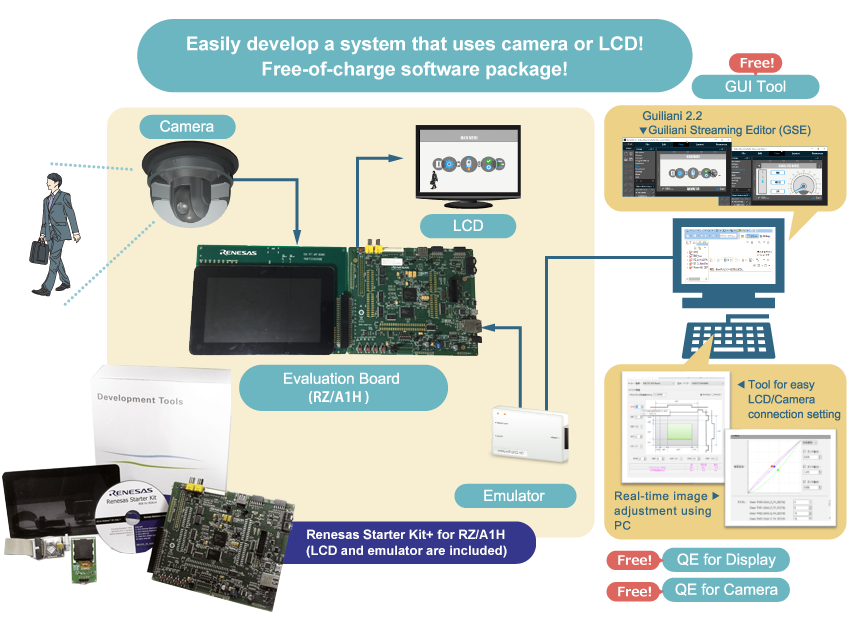

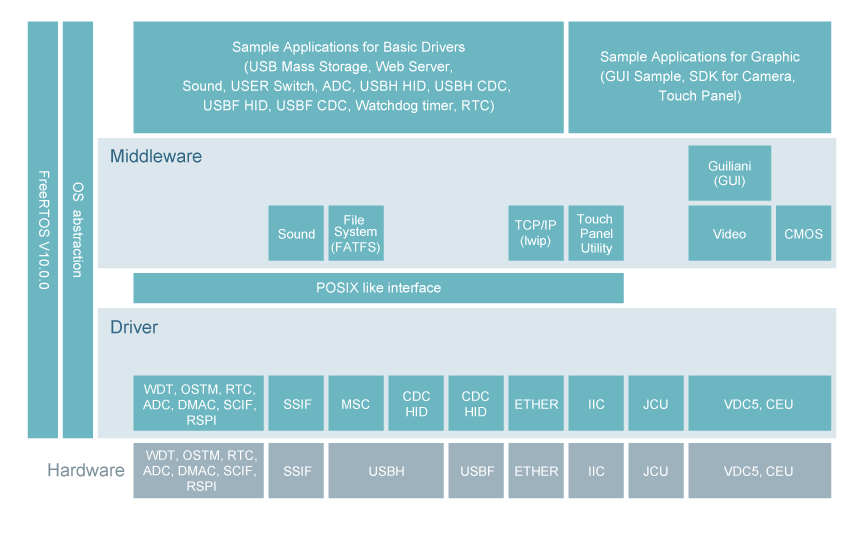

RZ/A1H Software Package is an HMI software development kit for the RZ/A1H that provides consistent support for camera input, LCD output, and image adjustment. It consists of device drivers, middleware, and sample programs for the RZ/A1H in a single package.
* Renesas Starter Kit+ for RZ/A1H must be purchased separately
特性
- Contains sample programs for drivers and application sample programs that can be used for development, so you can start using the peripheral functions of the RZ/A1H immediately.
- Example for interoperation between RZ/A1H peripherals/StreamIt! on-board peripherals with the C++ HMI Framework "Guiliani" by TES Electronics Solutions. “Guiliani” and RZ/A1H Software Package allows rapid implementations of smooth, intuitive and high-performance GUIs that can interact with RZ/A1H extensive peripherals free-of-charge. For details on Guiliani, please refer to https://www.renesas.com/software-tool/tes-guiliani
- Use with QE for Display (e² studio plug-in) to easily make image quality and LCD timing adjustments using a GUI.
- Use with QE for Camera (e² studio plug-in) to easily set Camera module and Camera timing adjustments using a GUI.
发布信息
Latest ver.: V1.70
Released: Feb. 27, 2026
Details of upgrade (see release notes: RZ/A1H Group RZ/A1H Software Package (PDF))
Operating environment
Software package for GR-PEACH
目标设备
设计和开发
Additional Details
Partner Tools
| Partner Tools | Description | Details/Where to get |
|---|---|---|
| H.264 Video playback [Techno Mathematical] | H.264 WVGA@30fps playback with RZ/A internal RAM. Performs playback with less than 2MB RAM. | Contact |
Operating Environment
| Integrated development environment | e2 studio |
|---|---|
| Compiler | GNU Arm Embedded Toolchain |
| Supported board | Renesas Starter Kit+ for RZ/A1H (For GR-PEACH) |
| Emulator | J-Link LITE (included with the board, this J-Link LITE can not be used for any other boards.) |
| Development support tool | QE for Display QE for Camera |
RZ/A1H Software Package for GR-PEACH
As easier RZ/A1H development environment, RZ/A1H Software Package for GR-PEACH is available. User program can be download by drag and drop, you can start rapid prototyping without an in-circuit emulator.
*GR-PEACH and related boards must be purchased separately
- RZ/A1H Software Package for GR-PEACH Quick Start Guide (PDF)
- RZ/A1H Group Software Package Application Note (PDF)
Download: RZ/A1H Software Package for GR-PEACH (ZIP)
For RZ/A1LU Group products, please refer to RZ/A1LU Software Package.
(Remark) FreeRTOS™ is a trademark of Amazon Web Services, Inc.
