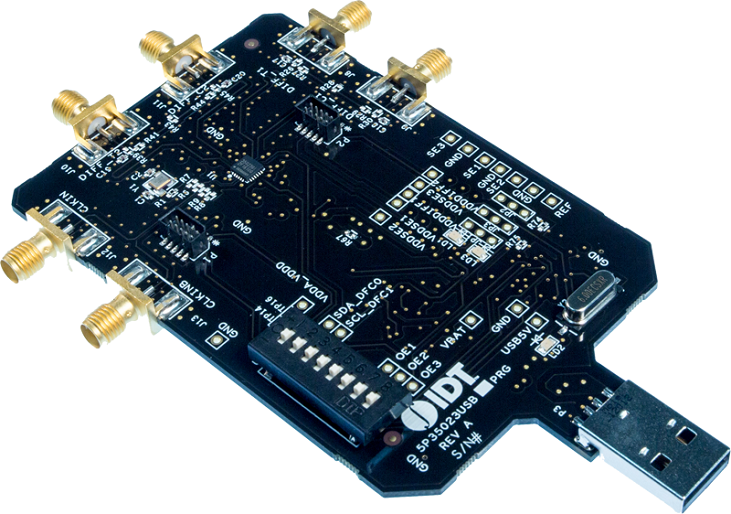

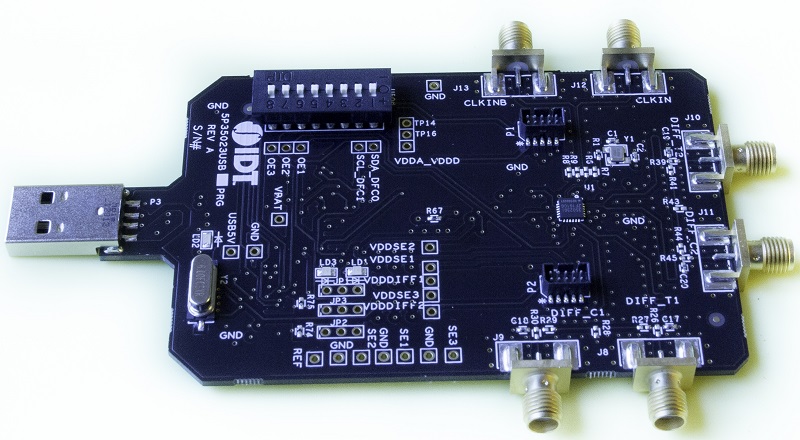

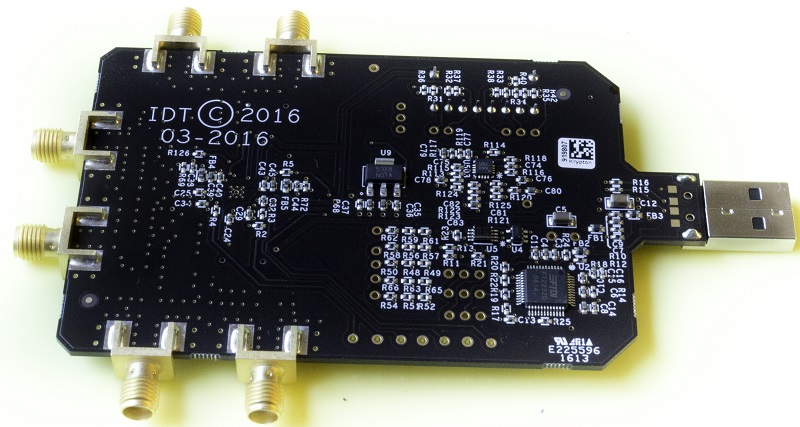

The VersaClock® 3S-5P3502x programmer board is made to ease the programming of blank 5P35021 and 5P35023 devices. With the on-board USB interface, the Renesas Timing Commander™ graphical user interface (GUI) is used to communicate with the blank device in the socket for configuration and programming.
特性
- Program VersaClock 3S – 5P3502x blank parts in the socket

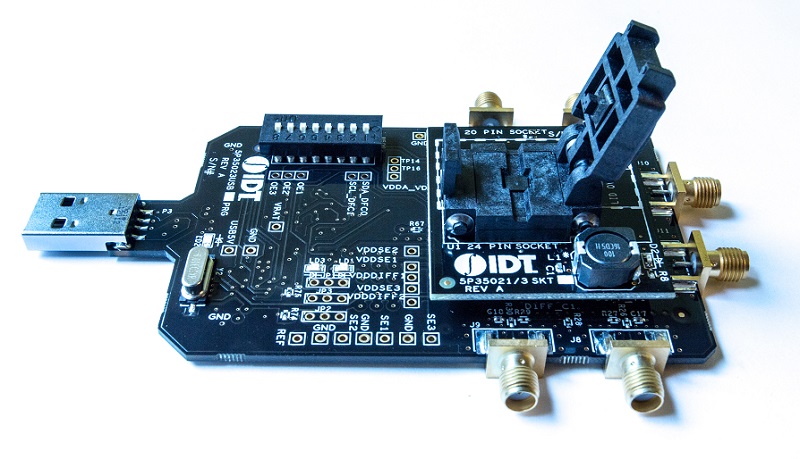

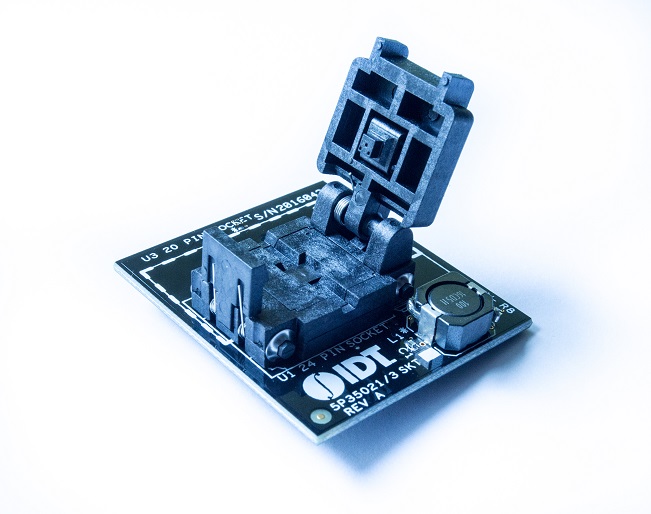

- Removable socket board

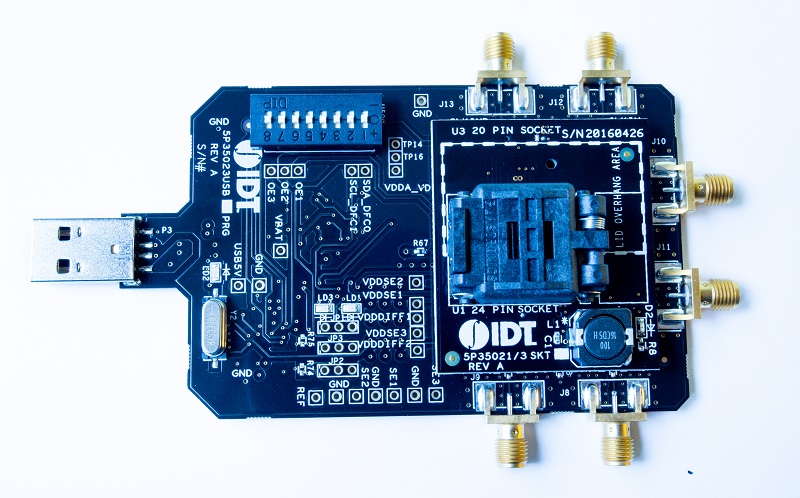

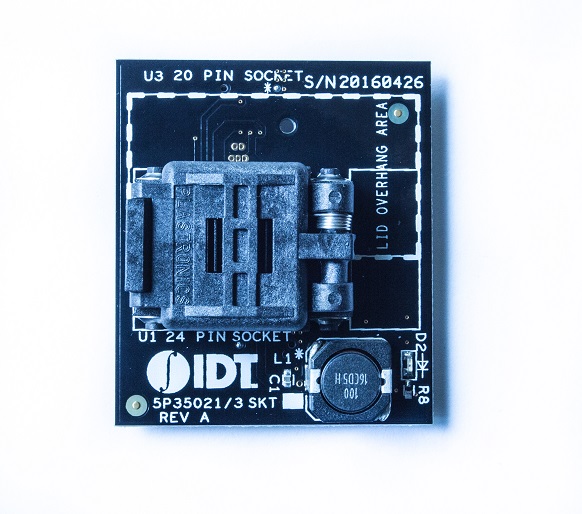

- EVK5P35021PROG is a VersaClock 3S USB programmer board with a QFN20 socket board for the 5P35021 device
- EVK5P35023PROG is a VersaClock 3S USB programmer board with a QFN24 socket board for the 5P35023 device
- Programmer board is powered by USB port
- Programmer board uses Renesas Timing CommanderTM GUI to program the blank parts
- USB port is the communication channel between the GUI and the VersaClock 3S–5P3502x device in the socket
应用
设计和开发
支持
视频和培训
Description
