概览
描述

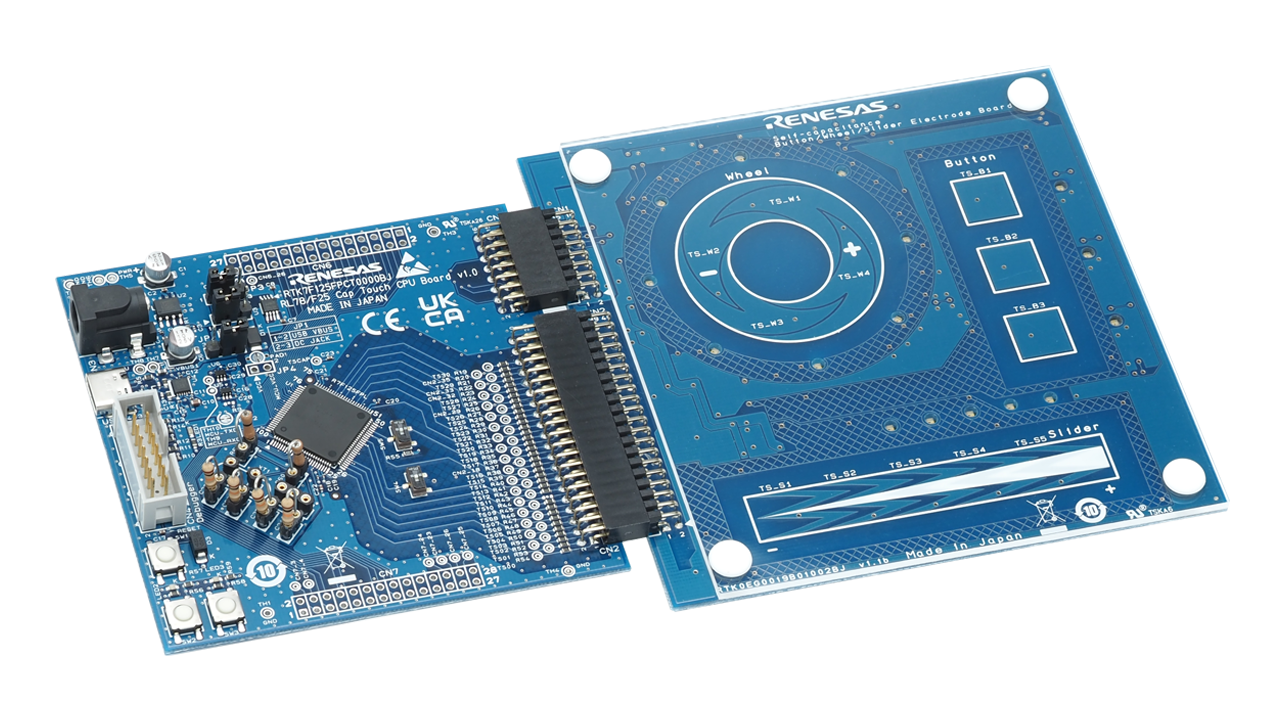

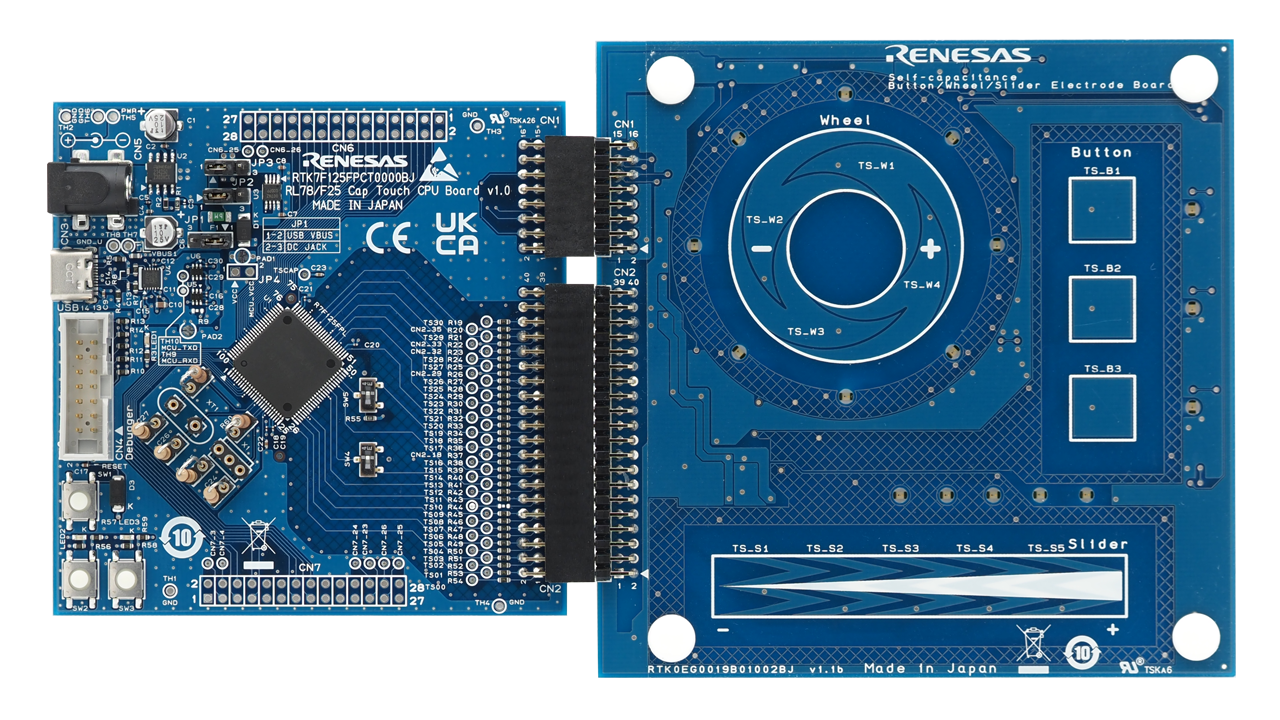

RL78/F25 电容式触摸评估系统（RSSK-RL78F25）使用户能够轻松评估瑞萨电子提供的触摸解决方案。 您可以使用套件中的电路板和软件即刻开始评估，开箱即用。
特性
- 用于评估各种触摸功能（按钮、滑块、滚轮）
- 简化原型产品设计
- 在设计电路板或软件时用作参考
- 使用 QE for Capacitive Touch 轻松调整灵敏度
- 初学者友好的使用GUI的触摸界面开发工具，易于使用
- 界面直观、操作简单
- 自动输出调整后的源代码
- 板上实装 RL78/F25 MCU（R7F125FPL3AFB-C）
- 电容式触摸传感器（CTSU2SLa）终端 31 通道可用
- 电路板电源电压可选择 7 至 12V（由 DC 插孔提供）或 5V（由 USB 提供）
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 手册 - 开发工具 |
PDF
818 KB
日本語
The RL78/F25 Capacitive Touch Evaluation System (RSSK-RL78F25 / RTK7F125FPST0000BJ) is a kit for evaluating the capacitive touch sensor (CTSU2SLa) of the Renesas RL78/F25 MCUs. This manual provides an overview of the RL78/F25 Capacitive Touch Evaluation System’s hardware.
|
|
| PCB 设计文件 | RSSK-RL78F25 - Design Package
The design files for the RSSK-RL78F25 Capacitive Touch Evaluation System include schematics, BOMs, PCB layout files, and Gerber artwork for both the RL78/F25 CPU evaluation board and the self-capacitance electrode board.
|
|
| 应用说明 | PDF 957 KB 日本語 | |
| 应用说明 |
PDF
6.87 MB
日本語
Functional safety functions are becoming an important on system design as automatic electronic control systems continue to expand to a wide range of applications. This APN describes the software for capacitive touch sensor(CTSU) functional safety self test.
|
|
| 工具新闻 - 发布公告 | PDF 176 KB 日本語 | |
| 应用说明 |
PDF
1.58 MB
日本語
AI 生成的摘要:
The CTSU module integrates capacitive touch sensing functions for RL78 microcontrollers, supporting multiple peripheral types with distinct features. It enables various measurement modes such as self-capacitance, mutual capacitance, and current measurement, with advanced functions including sensor correction, initial offset adjustment, multi-frequency measurements, shield functionality, and automatic judgment. Measurements can be triggered by software or external events, with results obtained via APIs. The module also supports diagnosis, moving average filtering, and temperature correction. Multi-clock measurements reduce noise, and calibration functions ensure accurate sensor readings. The document details API usage, hardware/software requirements, and operational modes, providing comprehensive guidance for integrating capacitive touch sensing in embedded systems.
|
|
| 应用说明 |
PDF
956 KB
日本語
AI 生成的摘要:
The TOUCH Module integrates capacitive touch detection using the CTSU hardware, supporting buttons, sliders, and wheels with configurable settings via QE for Capacitive Touch. It processes periodic capacitance measurements to determine touch states, employing baseline calibration, drift correction, hysteresis, and debouncing to ensure accurate touch detection and reduce noise. The module supports both self-capacitance and mutual-capacitance buttons, with majority judgment modes for reliable input. It provides APIs for initialization, scanning, data retrieval, sensitivity adjustment, and drift control, enabling flexible integration into RL78 microcontroller applications.
|
|
| 工具新闻 - 发布公告 |
PDF
155 KB
日本語
This is the Tool News announcing the revision upgrade to QE for Capacitive Touch V4.2.0, Development Assistance Tool for Capacitive Touch Sensors.
QE for Capacitive Touch is a tool for assisting in the development of embedded systems that include the use of capacitive touch keys.
This tool simplifies the initial settings of the touch user interface and the tuning of the sensitivity.
The main revisions are improvements to the sensor drive pulse frequency determined by automatic tuning (CTSU2) and support for the new device "RA0L1 Group, RL78/F22, RL78/F25, and RL78/L23".
|
|
| 应用说明 |
PDF
842 KB
日本語
The Renesas board support package SIS module (r_bsp) forms the foundation of any project that uses Software Integration System (SIS) modules. The r_bsp is easily configurable and provides all the code needed to get the MCU and the board from reset to the main() function. This document describes r_bsp conventions and explains how to use it, configure it, and create a BSP for your own board.
|
|
| 应用说明 | PDF 1.34 MB 日本語 | |
| 应用说明 | PDF 4.99 MB 日本語 | |
| 应用说明 |
PDF
8.65 MB
日本語
The Capacitive Touch Evaluation System for the RL78/G23 supports development with CS+, the standalone version of the Smart Configurator, and the standalone version of QE for Capacitive Touch. The standalone QE for Capacitive Touch enables flexible development independent of the device or integrated development environment (IDE). This application note describes the steps for developing capacitive touch applications using the Capacitive Touch Evaluation System.
|
|
| 应用说明 |
PDF
1.50 MB
日本語
AI 生成的摘要:
Capacitive touch sensors measure capacitance changes caused by finger contact using a sensor drive pulse and current measurement. Ripple noise from the power supply or peripheral circuits distorts these measurements by adding noise currents, causing inaccurate touch detection. To ensure high accuracy and reliability, power supply design must minimize ripple noise. The document explains measurement principles, ripple noise effects, and countermeasures including power supply circuit selection, switching circuits, board layout, and touch parameter tuning. It covers RX, RL78, and RA family MCUs embedding CTSU1 and CTSU2 types of capacitive touch sensing units.
|
|
| 应用说明 | PDF 959 KB 日本語 | |
| 应用说明 |
PDF
14.17 MB
日本語
AI 生成的摘要:
The guide explains methods to enhance noise immunity for capacitive touch sensor MCUs by addressing environmental noise issues that affect capacitance measurements. It covers noise types such as radiated RF, conducted noise, electrostatic discharge (ESD), and electrical fast transients (EFT), referencing IEC 61000-4 standards. The document details hardware and software countermeasures, including board design, multi-frequency measurement, filtering techniques, and protection circuits. It targets RX, RA, RL78 MCU families and Renesas Synergy devices embedding the CTSU module, providing practical design guidelines and evaluation results to ensure stable capacitive touch operation under noisy conditions.
|
|
| 应用说明 |
PDF
2.18 MB
日本語
AI 生成的摘要:
The software filters for capacitive touch systems include FIR, IIR, single-pole IIR, and median filters, each with detailed specifications, usage examples, and API descriptions. The document covers embedding these filters into existing projects for RA2L1, RX130, and RL78/G16 microcontroller groups, detailing operation conditions, software configuration, and filter parameter adjustments. It also provides development environment and hardware setup information to support capacitive touch evaluation systems.
|
|
| 应用说明 | PDF 2.75 MB 日本語 , English | |
| 应用说明 | PDF 2.41 MB 日本語 , English | |
| 应用说明 | PDF 5.97 MB 日本語 , English | |
19 项目
|
||
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| C Compiler Package for RL78 Family [CC-RL] C Compiler Package for RL78 Family [IDE: CS+, e² studio]
|
Compiler/Assembler | 瑞萨电子 |
| e² studio - information for RL78 Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
5 项目
|
||
样例程序
样例程序
筛选
|
||
|---|---|---|
| 类型 | 文档标题 | 日期 日期 |
| 示例代码 | RL78 Family CTSU Module Software Integration System Rev.2.30 - Sample Code
应用:
人机界面（HMI）
Compiler:
CC-RL, ICCRL78
Function:
HMI, RL78 Software Integration System, Software Package
IDE:
e2 studio, IAR EWRL78
|
|
| 示例代码 | RL78 Family TOUCH Module Software Integration System Rev.2.30 - Sample Code
应用:
人机界面（HMI）
Compiler:
CC-RL, ICCRL78
Function:
HMI, RL78 Software Integration System, Software Package
IDE:
e2 studio, IAR EWRL78
|
|
| 示例代码 | RL78 Family Board Support Package Module Using Software Integration System Rev.1.92 - Sample Code
[Toolchains=CC-RL|V1.16.00;LLVM for Renesas RL78|17.0.1.202506;ICCRL|5.20.1]
ZIP
3.89 MB
应用:
工业, 消费电子产品
Compiler:
CC-RL, ICCRL78, LLVM for Renesas RL78
Function:
BSP, Clock, Driver or Library
IDE:
e2 studio, IAR EWRL78
|
|
| 示例代码 | RL78/F25 Capacitive Touch Evaluation System Sample Code
[Toolchains=CC-RL|V1.15.00]
ZIP
7.69 MB
日本語
应用:
人机界面（HMI）, 家电
Compiler:
CC-RL
Function:
Evaluation Kit, HMI
IDE:
e2 studio
|
|
| 示例代码 | RL78/F25 Group Low power consumption Smart Wakeup Solution
[Toolchains=CC-RL|V1.15.00]
ZIP
5.93 MB
日本語
应用:
人机界面（HMI）, 家电
Compiler:
CC-RL
Function:
Evaluation Kit, HMI
IDE:
e2 studio
|
|
| 示例代码 | RL78 Family Using the standalone version of QE to Develop Capacitive Touch Applications Rev.2.00
[Toolchains=CC-RL|V1.15.01]
ZIP
27.34 MB
日本語
应用:
人机界面（HMI）
Compiler:
CC-RL
Function:
Application Example, HMI
IDE:
CS+ for CC
This is an example of a touch application developed using CS+ and the standalone version of QE for Capacitive Touch. Two types of projects are provided: a simple implementation example and an applied example, both of which can be immediately tested on the capacitive touch evaluation system. These can be used as reference materials to understand the development procedure in conjunction with the application note.
|
|
| 示例代码 | Capacitive Sensor MCU Capacitive Touch Software Filter Sample Program
[Software=RX Driver Package|V2.20;RA Flexible Software Package|v5.3.0],[Toolchains=CC-RL|V1.13.00;CC-RX|V3.06.00;GNU Arm Embedded|13.2.1.arm-13-7]
ZIP
16.10 MB
日本語
应用:
消费电子产品
Compiler:
CC-RL, CC-RX, GNU ARM Embedded
Function:
Application Example, HMI
IDE:
e2 studio
|
|
7 项目
|
||
产品选项
| 器件号 | 状态 | 库存 | 预算价格（美元） | Sampleable |
|---|---|---|---|---|
| RTK7F125FPST0000BJ | Active | 有库存 | 1u | $176.47 | N/A |
视频和培训
QE for Capacitive Touch from Renesas enables the development of touch sensors by simply following a guide on a GUI, thus contributing to shortening the development period for touch sensor functions that take advantage of the performance of Capacitive Sensing Unit (CTSU2).
- Capacitive Touch Sensor Solutions
- QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors
- Getting Started with QE for Capacitive Touch for RL78 (this video)
- QE for Capacitive Touch Tutorial: Settings for RL78
- QE for Capacitive Touch Tutorial: Tuning for RL78
- QE for Capacitive Touch Tutorial: Serial Monitoring for RL78
