特性
- Extremely low additive phase jitter; supports DB200H requirements
- 3.3V operation; standard industry power supply
- 2 OE pins (1 for each output); easy control of clocks to CPU sockets
- HCSL-compatible input; supports popular devices
- 1MHz to 350MHz operating frequency; covers all popular Ethernet frequencies
- Space saving 3mm × 3mm 16-QFN; minimal board space
描述

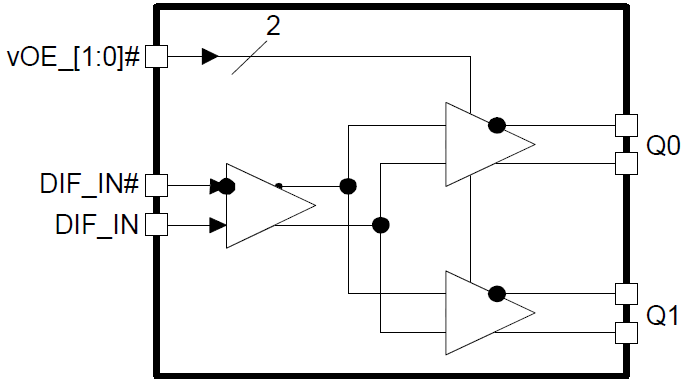

The 9INT31H200 is a 2-output very high-performance HCSL fanout buffer for high-performance interconnect applications. It can be used at speeds up to 350MHz and is compliant with the DB200H specification.
产品参数
| 属性 | 值 |
|---|---|
| Function | Buffer |
| Outputs (#) | 2 |
| Output Type | HCSL |
| Output Freq Range (MHz) | 1 - 350 |
| Input Type | HCSL |
| Output Banks (#) | 4 |
| Output Voltage (V) | 0.8 |
| Output Skew (ps) | 5 |
| Additive Phase Jitter Typ RMS (fs) | 64 |
封装选项

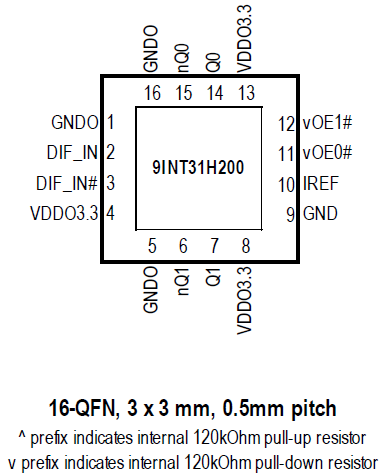

| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
|---|---|---|---|
| VFQFPN | 3.0 x 3.0 x 1.0 | 16 | 0.5 |
应用
- DB200H
- Ethernet
- PCIe
