特性
- Can be used for an analog transceiver for the following interfaces:
- Universal Serial Bus Specification Revision 2.0*1
- Battery Charging Specification Revision 1.2
- Supports multi-port (1, 2, 3, and 4 ports are available)
- Technology is TSMC's 28nm HPC+ (High-Performance Compact Plus) 1p10M
- Supply voltage can be applied - 0.90V for nominal and 1.0V for overdrive of core voltage, 1.8V and 3.3V for I/O voltage
- USB transfer mode is High-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) modes
- A terminal resistance, pull-up resistor, and pull-down resistor are included
- Input reference clock is 48MHz, 30MHz, 24MHz, and 20MHz

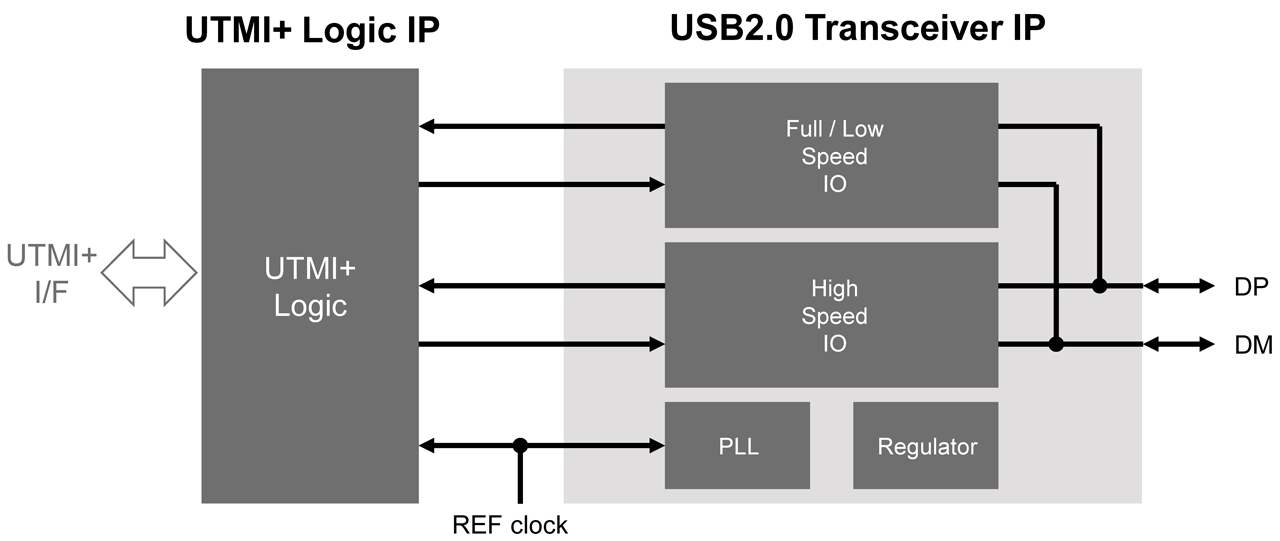

USB 2.0 PHY for Multi-Port Transceiver IP (TSMC 28nm HPC+) Block Diagram
描述
Renesas' USB 2.0 transceiver is a useful analog multi-port transceiver hard macro for UTMI+ (USB 2.0 Transceiver Macrocell Interface +) Level 3. Fabricated using TSMC's 28nm HPC+ (High-Performance Compact Plus) process, this macro can be configured to operate as a USB 2.0 peripheral or USB 2.0 host controller.
*1 Before purchasing or using any Renesas products, please refer to the latest product manual and/or datasheet in advance.
产品参数
| 属性 | 值 |
|---|---|
| Protocol | USB 2.0 |
| Function | PHY, Transceiver |
| Process | TSMC 28nm HPC+ |
| Data Rate (Mbps) | 480, 12, 1.5 |
| Interface | UTMI+ Level 3 |
| Number of Channels | 1, 2, 3, 4 lanes |
| Input Freq (MHz) | 48 - 48, 30 - 30, 24 - 24, 20 - 20 |
| Supply Voltage Range (V) | Core: 0.90 or 1.0V, I/O: 1.8 and 3.3V |
