R-Car V4H 系统评测板套装 / White Hawk
White Hawk 是一款适用于 R-Car V4H 的评估套件,可使用 R-Car V4H 来评估系统并用来开发操作系统、设备驱动器和应用程序。 使用 White Hawk 评估套件可让开发人员高效地执行所需任务,例如评估 R-Car V4H 系统性能,从而大大缩短产品开发的周期...
适用于自动驾驶 Level 2+ /Level 3 等级系统的销量市场

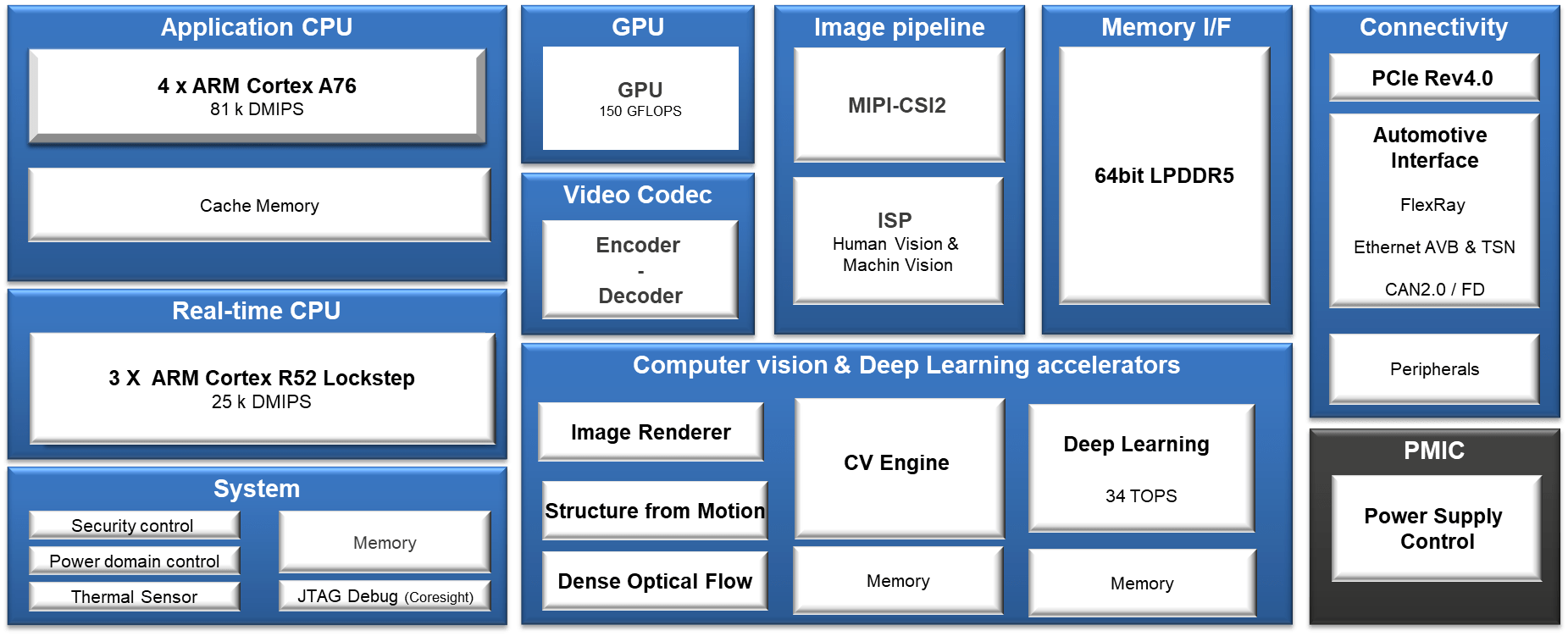

R-Car V4H 片上系统 (SoC) 专为高级驾驶辅助 (ADAS) 和自动驾驶 (AD) 解决方案的中央处理量身定制。 R-Car V4H 拥有高达 34 TOPS(每秒万亿次运算)的深度学习性能,可通过汽车摄像机、雷达和激光雷达对周围的物体进行高速图像识别和处理。
得益于其高集成度的性能,R-Car V4H 允许客户开发具有成本竞争力的单芯片 ADAS 电子控制单元 (ECU)。 这些控制单元可支持适合Level 2+和Level 3 等级的自动驾驶系统,包括完整的 NCAP 2025 功能。 双 V4H 配置实现 Level 3 等级系统所需系统性能的无缝升级和故障降级运行。 R-Car V4H 还支持环视和自动泊车功能,具有优异的 3D 可视化效果实现逼真的渲染效果。
R-Car V4H以外,可从此处下载我们即将推出的具有成本竞争力的产品系列(V4M)的文档。

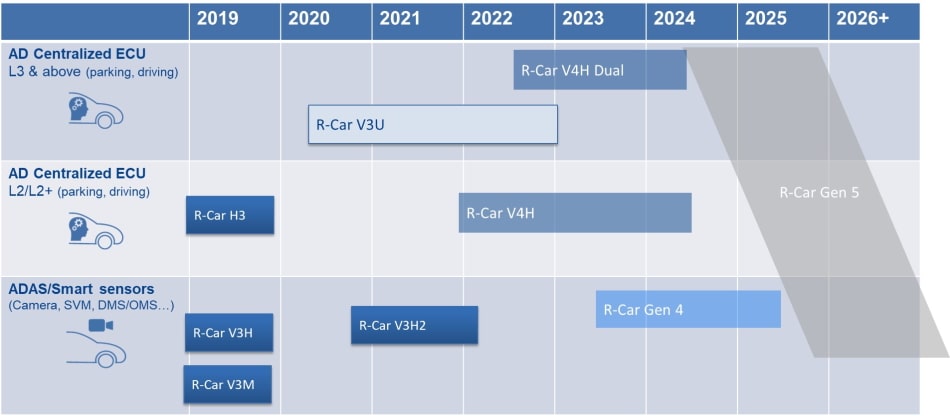

目前处于量产中的 R-Car V3M 和 R-Car V3H 专注于 Level 1和Level 2 等级应用的智能前置摄像头。 R-Car V4H 使用可扩展的架构,可复用第三代 R-Car 产品的软件资源。 这有助于客户在开发Level 2+ 和Level 3 等级系统时能够平稳、快速地扩展到下一代系统。 R-Car V4H 还支持最新的激光雷达、雷达和热成像摄像机技术。
低功耗的一流 R-Car 深度学习技术:16 TOPS / Watt
R-Car V4H 提供高达 34 TPOS 的高效深度学习性能。 它使用超低功耗,仅需被动散热系统,可帮助降低BOM成本。
解决方案满足行业严格的 ASIL B/D 要求
R-Car V4H 开发过程针对所有安全相关的IP提供ASIL-D系统能力。 R-Car V4H 的信号处理部分有望实现实时域的 ASIL-B 及 D 指标。 此外,R-Car V4H 还可以与 RAA271041 前端稳压器和针对汽车应用优化的 RAA271005 PMIC 组合使用。 这使得R-Car V4H和外围存储器能够从车载电池的12V电源中获得高度可靠的供电。这些功能可实现低功耗运行,同时以极低的BOM成本实现ASIL-D目标合规等级以满足系统和随机硬件故障的要求。有助于最大限度地减少硬件和软件开发工作量,同时缩减设计复杂性、成本和上市时间。卓越的可扩展性能可最大化软件复用度以覆盖 ADAS/AD Level 1到Level 3 等级的应用。

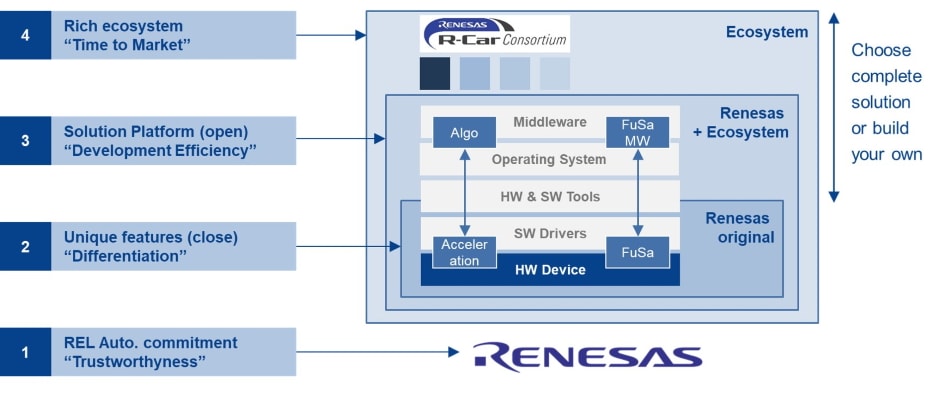

嵌入式软件平台开发为实现“软件定义的汽车”铺平道路
R-Car V4H软件开发工具套件(SDK)也可助力更快、更轻松的启动设备评估和软件开发,包括深度学习算法移植。该SDK带来机器学习开发的全部功能,并对嵌入式系统的性能、电源效率和功能安全进行优化。套件提供完整的仿真模型,瑞萨独立于操作系统的软件平台使“软件定义汽车”的开发更加容易。
Software title
|
Software type
|
公司
|
---|---|---|
带有 GPU 和不带 GPU 的 3D 环绕视图 GPU 版 (R-Car H3 / M3) • 4x 2MP @ 30fps 输入 • 4k @ 60fps 输出 • 碰撞色彩协调 • 动态 3D bowl、动态混合区 • 车辆透视(历史视图) • 检测功能 IMR 版 (R-Car V3H / V3M) • 4x 2MP 30fps 输入
|
Software Package | Cogent Embedded Inc. |
Automotive SoC Consulting Service R-Car Online Consultation is a service where you can receive various consultations regarding R-Car V3H and R-Car V3M. We propose various solutions according to the customer’s situation, such as consultation for customers who are considering R-Car for the first time, learning of image recognition and deep learning using R-Car, and construction of evaluation environment. With this development consulting service for automotive SoC, we will shorten the introduction time of customers and solve problems at an early stage.
|
Software Package | Hitachi Industry & Control Solutions, Ltd. |
适用于 R-Car V3H 和 R-Car V3M 的 ISP 解决方案 R-Car V3x ISP 解决方案、ISP 渠道 • 原始数据校正 • 镜头校正 • 降噪 • 颜色插值 • 演示 • 曝光控制 • 白平衡 • 色彩校正 • 色彩空间转换:RGB 或 YUV 输出 PC 调谐工具 • 实时调谐 • 离线调谐
|
Software Package | Cogent Embedded Inc. |
使用 OpenCL 和 SYCL 的 R-Car 硬件 专为瑞萨 R-Car 开发人员打造的 Codeplay 解决方案。 ComputeSuite for R-Car™ 让开发人员能够利用 OpenCL 和 SYCL 对 R-Car 硬件上的应用程序进行加速。
|
Software Package | Codeplay Software |
RT-RK - Expertise on Renesas' Computer Vision and CNN Consulting and services on computer vision and machine learning to optimize the performance of Tier 1 and OEM algorithm on Renesas products
|
Software Package | RT-RK |
SVNet, Deep Learning Embedded Software by STRADVISION SVNet is a deep learning and camera-based embedded perception software for ADAS and Autonomous Vehicles use cases. There are millions of vehicles powered by SVNet from Level 2 ADAS to Level 4 Autonomous Vehicles in the production pipeline in Germany and China.
|
Software Package | StradVision, Inc. |
RoX 虚拟平台 RoX 虚拟平台允许用户在硬件可用之前开始开发活动,从而加速下一代车辆的车载软件开发。
|
Simulator | 瑞萨电子 |
RoX 虚拟平台 RoX 虚拟平台允许用户在硬件可用之前开始开发活动,从而加速下一代车辆的车载软件开发。
|
Simulator | 瑞萨电子 |
多设备分布式处理软件 该软件将应用程序的功能分散配置到多个SoC和微控制器内部的CPU和HWIP中,以最大限度地发挥硬件的性能。
|
Solution Toolkit | 瑞萨电子 |
R-Car NAS(神经结构搜索) 该工具可自动设计在R-Car上高效运行的深度学习模型
|
Model-Based Development | 瑞萨电子 |
R-Car DNN Compiler DNN编译器可自动应用深度学习模型中的R-Car V4H程序优化
|
Compiler/Assembler | 瑞萨电子 |
R-Car DNN Simulator 深度学习模型R-Car程序快速模拟器
|
Simulator | 瑞萨电子 |
RoX AI Workbench 支持通过网页浏览器对 AI 模型和瑞萨 R-Car SoC 平台应用进行远程开发、测试和评估。
|
Software Package | 瑞萨电子 |
Hybrid Compiler (HyCo) 跨越不同SoCs世代的通用接口
|
Compiler/Assembler | 瑞萨电子 |
RH850 基于模型的开发环境 [Embedded Target for RH850 Virtual Platform] Embedded Target for RH850 Virtual Platform是一种开发环境,允许用户从Simulink®模型生成目标设备的外设代码,可在Simulink和虚拟环境中执行协同验证vHILS(Virtual Hardware In the Loop Simulation)。
|
Model-Based Development | 瑞萨电子 |
RoX 软件开发套件 RoX SDK是一个易于启动和易于使用的R-Car SoC开发框架。
|
Software Package | 瑞萨电子 |
