Y-G-HYBRID-PLC-RF

有效

Hybrid PLC and Sub-GHz Communication Evaluation Kit

立即订购
Hybrid PLC and Sub-GHz Communication Evaluation Kit User's Manual

概览

This product is an evaluation kit for developing software and evaluating systems compatible with Renesas' Power Line Communication (PLC) modem IC R9A06G037 and Renesas’ Sub-GHz wireless IC RAA604S00. This kit can be configured to support many configurations, PLC only R9A06G037, Hybrid (PLC & RF) R9A06G037& RAA604S00, RF only (RX651 & RAA604S00 or R9A06G061 & RAA604S00). This kit is therefore intended as an evaluation system for G3-PLC (inc. Hybrid), PRIME1.4 (inc. MultiPHY), and Wi-SUN. This product is a complete evaluation platform that includes the analog front end and control MCU required for AC-based PLC and Sub-GHz wireless communication.

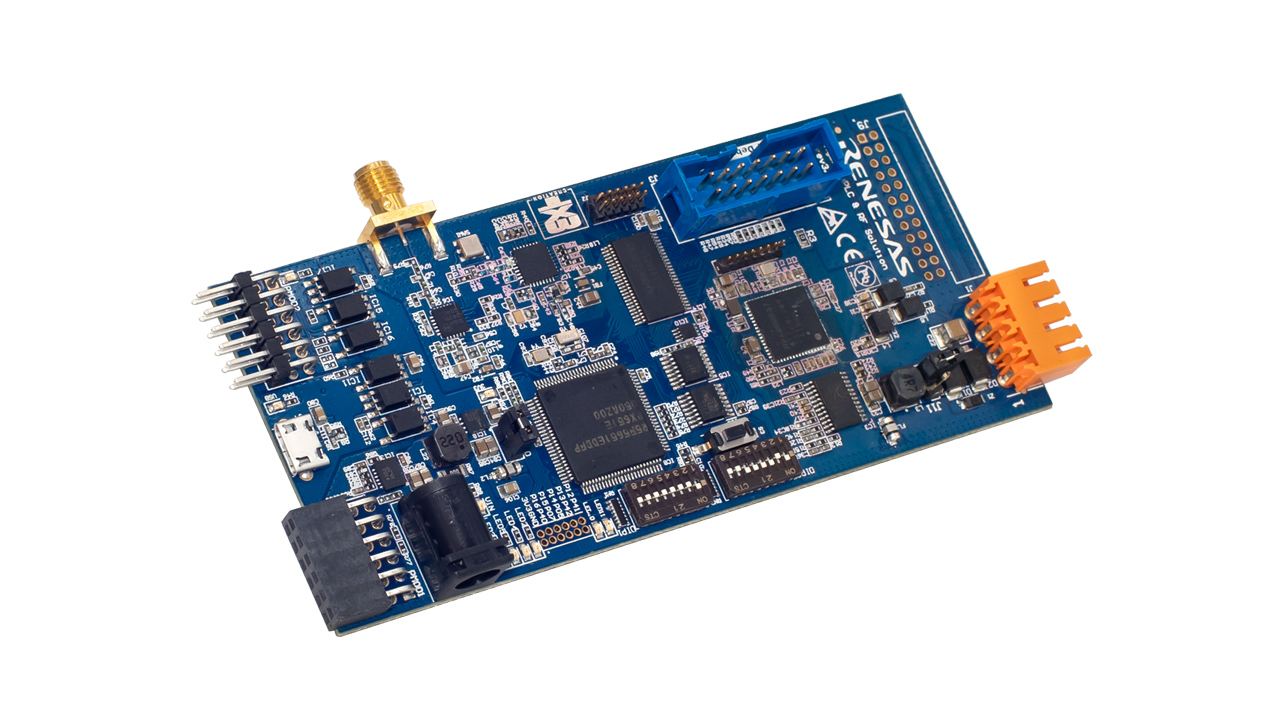

Hybrid PLC and Sub-GHz Communication Evaluation Board

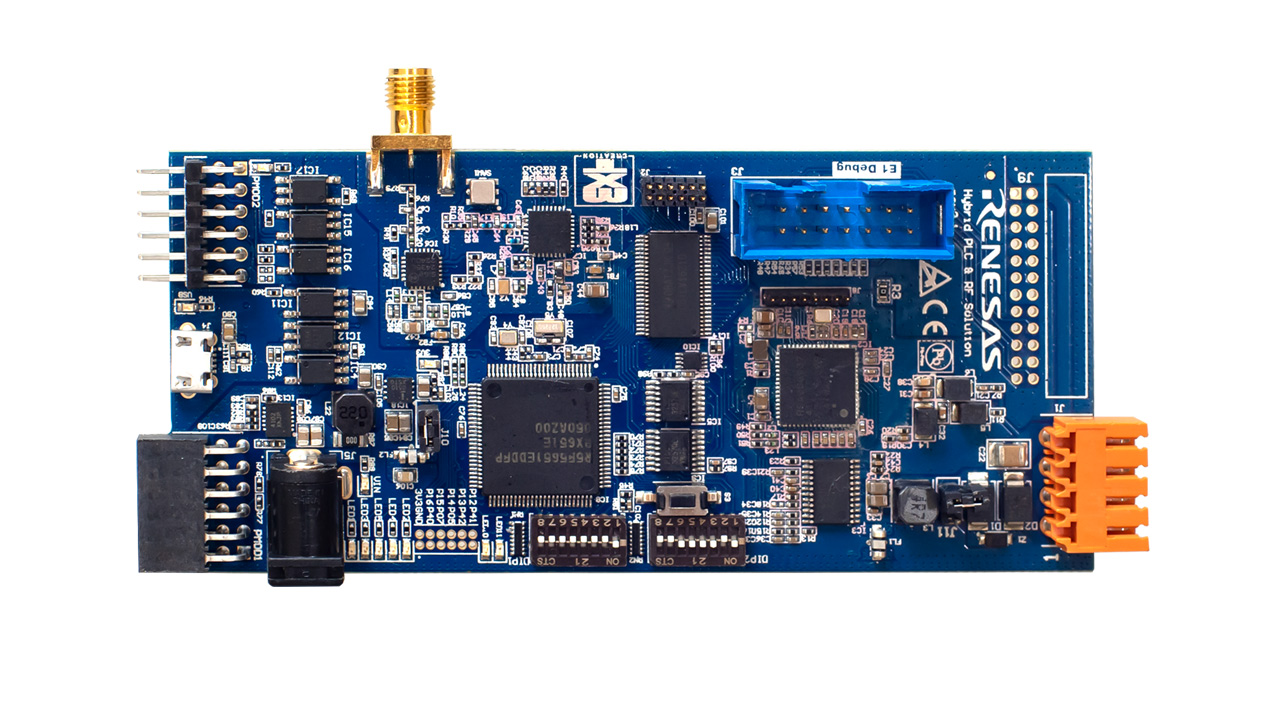

Hybrid PLC and Sub-GHz Communication Evaluation Board - Top

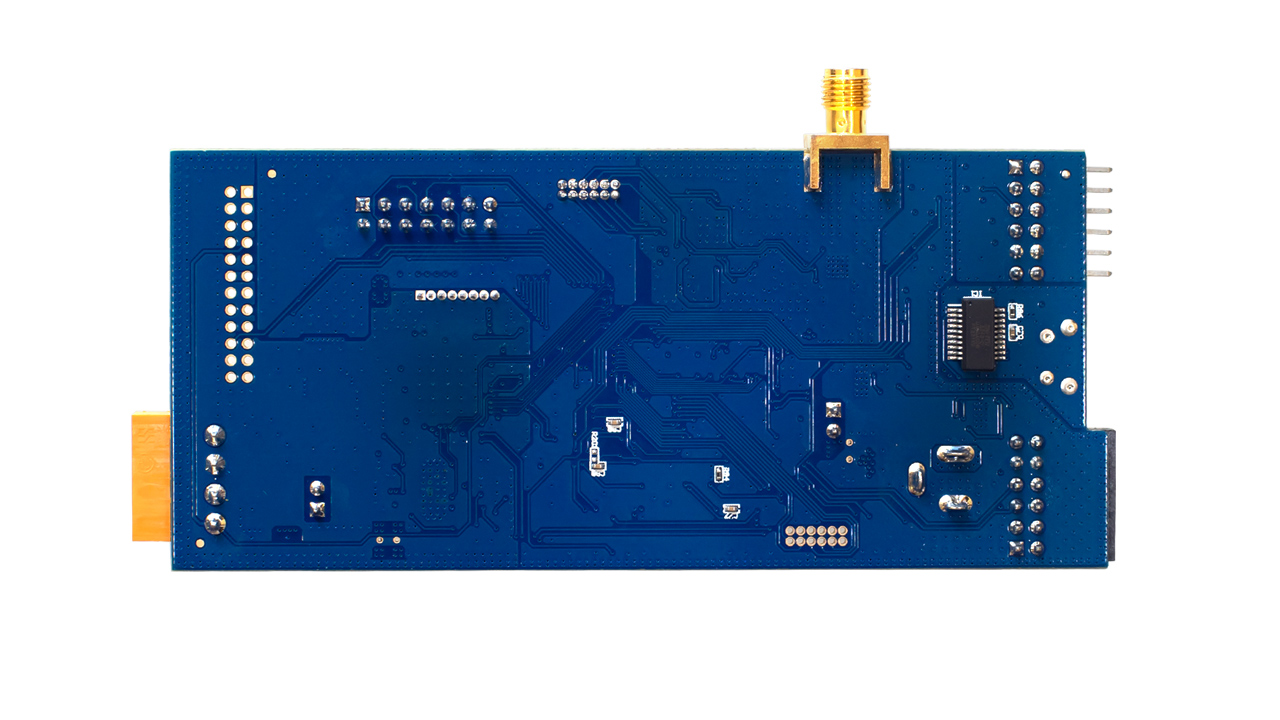

Hybrid PLC and Sub-GHz Communication Evaluation Board - Bottom
Hybrid PLC and Sub-GHz Communication Evaluation Board
Hybrid PLC and Sub-GHz Communication Evaluation Board - Top
Hybrid PLC and Sub-GHz Communication Evaluation Board - Bottom
  • Supported MCU and Modem IC:
    • MCU group: RX651
    • Part number of MCU mounted on board: R5F5651EDDFP
    • PLC modem IC: R9A06G061
    • Part number of PLC modem IC mounted board: R9A06G037GNP#AA0
    • Sub-GHz RF modem IC: RAA604S00
    • Part number of RF modem IC mounted board: RAA604S002GNP
  • The kit contains the following:
    • Y-G-HYBRID-PLC-RF communication board
    • Y-G-HYBRID-PLC-RF line coupler board boxed
    • USB Micro-B cable
    • 15V, 1.2A, 18W, international plug-in power supply (optional – dependent on order code)
    • RF antenna 868MHz - 928MHz SMA male
    • Y-G-HYBRID-PLC-RF communication board to Y-G-HYBRID-PLC-RF line coupler box connector cable
    • 2-pin Euro plug to Figure 8 (C7) power cable Euro to IEC 60320 C7
  • Supported standards/frequencies:
    • G3-PLC (inc. Hybrid):
      • PLC: CENELEC A / CENELEC B / ARIB / FCC
      • RF: IEEE 802.15.4 SUN FSK
    • PRIME1.4 (inc MultiPHY):
      • PLC: CENELEC A / CENELEC B / ARIB / FCC
      • RF: IEEE 802.15.4 SUN FSK
    • Wi-SUN:
      • Wi-SUN FAN profile (IEEE 802.15.4 SUN FSK)
  • Dimensions:
    • Y-G-HYBRID-PLC-RF communication board
      • Board dimensions: 60 mm (width) x 120 mm (length) x 14 mm (thickness)
    • Y-G-HYBRID-PLC-RF line coupler board boxed
      • Box dimensions: 68 mm (width) x 123 mm (length) x 37 mm (depth)
