概览

TP65H050G4BS 650V 50mΩ 氮化镓 （GaN） FET 是使用我们的 GenIV 平台构建的常闭器件。 它将最先进的高压 GaN HEMT 与低压硅 MOSFET 相结合，以提供卓越的可靠性和性能。

瑞萨电子的 GaN 功率产品通过更低的栅极电荷、更低的交越损耗和更小的反向恢复电荷，提供比硅更高的效率。

TP65H050G4BS 采用行业标准的 SMD TO-263 封装，具有通用的源封装配置。

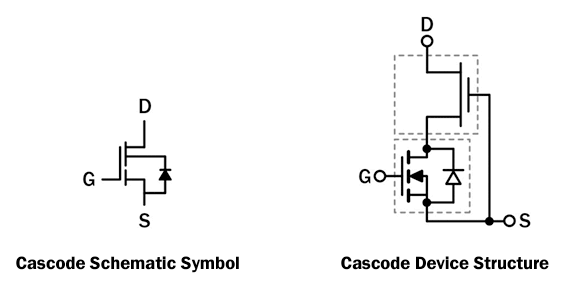

TP65H050G4BS Typical Diagram

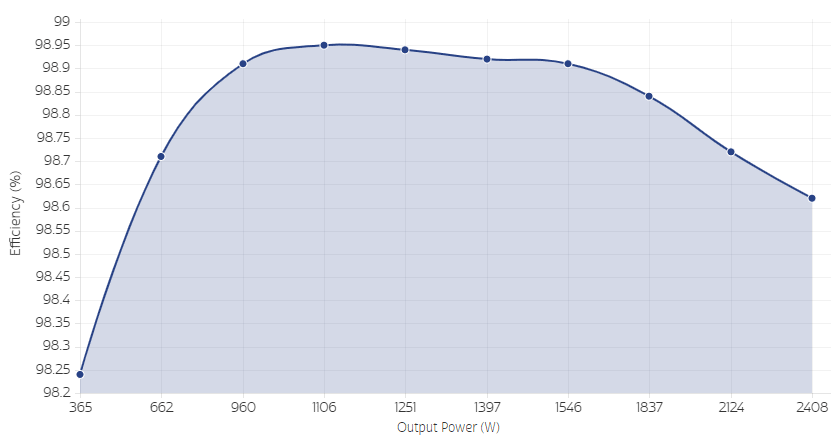

TP65H050G4BS Efficiency

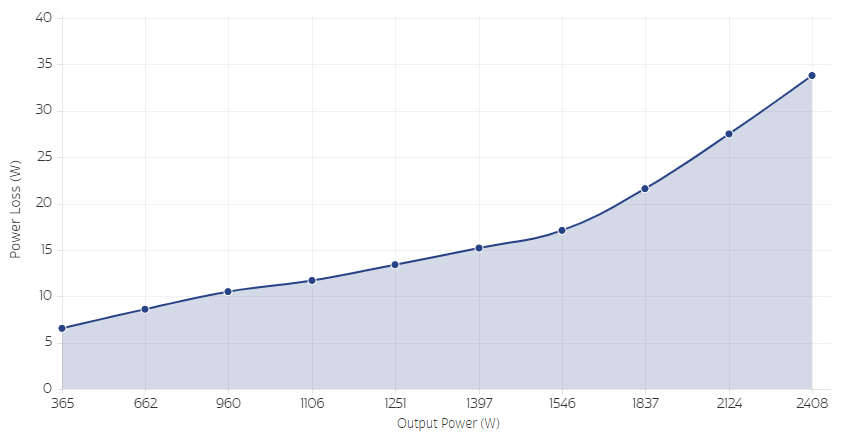

TP65H050G4BS Power Loss
TP65H050G4BS Typical Diagram
TP65H050G4BS Efficiency
TP65H050G4BS Power Loss
  • 符合 JEDEC 标准的 GaN 技术
  • Dynamic RDS（on）eff 经过生产测试
  • 坚固的设计，定义
    • 固有寿命测试
    • 宽栅极安全裕度
    • 瞬态过压能力
  • 增强的浪涌电流能力
  • 非常低的 QRR
  • 减少分频损耗
  • 支持 AC-DC 无桥图腾柱 PFC 设计
    • 提高功率密度
    • 减小系统尺寸和重量
    • 总体降低系统成本
  • 在硬开关和软开关电路中实现更高的效率
  • 使用常用栅极驱动器易于驱动
  • GSD 引脚布局改善了高速设计
  • 符合 RoHS 标准和无卤素包装

应用

  • 数据通信
  • 博大实业
  • 光伏逆变器
  • 伺服电机
