RZ/V2L Block Diagram

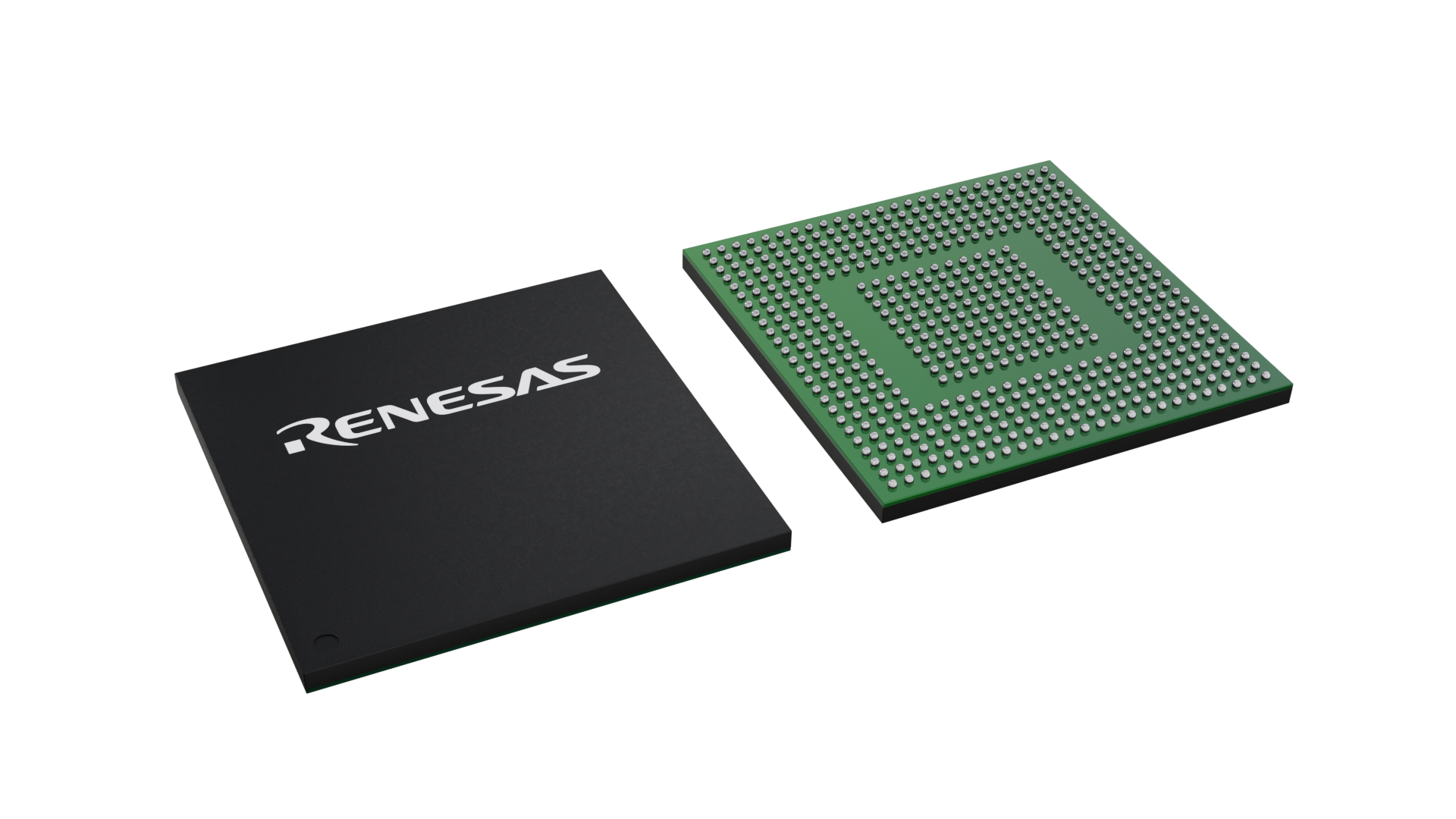

3D illustration featuring top and bottom of LFBGA IC chip package with 551 leads.
RZ/V2L Block Diagram
3D illustration featuring top and bottom of LFBGA IC chip package with 551 leads.

R9A07G054L14GBG#BC0

有效
配备瑞萨电子独创的 AI 加速器“DRP-AI”、1.2GHz 双核 Arm Cortex-A55 CPU、3D 图形和视频编解码器引擎的通用微处理器
RZ/V2L Group DatasheetRZ/V2L Group User's Manual: HardwareRZ/V2L Easy Download Guide实现视觉人工智能的图像处理Embedded AI-Accelerator DRP-AI有关 RZ/V2L 的所有信息

封装信息

CAD 模型: View CAD Model
Pkg. Type: LFBGA
Pkg. Code: pkg_20051
Lead Count (#): 551
Pkg. Dimensions (mm): 21 x 21 x 1.4
Pitch (mm): 0.8

环境和出口类别

Moisture Sensitivity Level (MSL) 3
ECCN (US) 3A991.a.2
HTS (US) 8542.31.0050
RoHS (R9A07G054L14GBG#BC0) 英语日文
Pb (Lead) Free Yes

产品属性

Carrier Type Full Carton (Tray)
Family Name RZ
Series Name RZ/V
Group Name V2L
CPU Architecture Arm
Main CPU Cortex-A55 x 1 + Cortex-M33 x 1
Sub CPU Cortex-M33
Floating Point Unit Double/Single/Half
Bit Length 64
Program Memory (KB) 0
Data Flash (KB) 0
RAM (KB) 128
ECC SRAM Yes
Lead Count (#) 551
Pitch (mm) 0.8
Pkg. Dimensions (mm) 21 x 21 x 1.4
Number of Supply Voltage(s) (#) 5
Supply Voltage (V) 2.97 - 3.63
I/O Ports 123
DMAC or DTC DMAC
DMA (ch) 16
Temperature Sensor (ch) (#) 1
Power-On Reset No
Watchdog Timer (ch) 3
External Memory Bus (bit) 16
DRAM I/F DDR3L-1333, DDR4-1600 (16-bit)
NPU Yes
3D GPU Arm Mali-G31
Accelerator DRP-AI
MOQ 480
Temp. Range (°C) Tj = -40 to +125
External Interrupt Pins (#) 8
LVD or PVD No
Operating Freq (Max) (MHz) 1200
Operating Freq of Sub CPU (Max) 200
Sub-clock (32.768 kHz) No
On-chip Oscillator No
Ethernet speed 10M/100M/1G
Ethernet (ch) 2
EtherCat (ch) (#) 0
USB Ports (#) 2
USB FS (host ch/device ch) ( 2 / 1 )
USB HS (host ch/device ch) ( 2 / 1 )
USB SS (host ch/device ch) ( 0 / 0 )
PCI Express (generation and ch) No
SCI or UART (ch) 2
SPI (ch) 3
QSPI (ch) 0
OSPI (ch) 1
I2C (#) 4
I3C (ch) 0
CAN (ch) 0
CAN-FD (ch) 2
Wireless No
IrDA No
LIN (#) 0
SDHI (ch) 2
High Resolution Output Timer No
PWM Output (pin#) 0
32-Bit Timer (ch) 1
16-Bit Timer (ch) (#) 8
8-Bit Timer (ch) 0
Standby operable timer No
Asynchronous General Purpose Timer / Interval Timer (ch) 0
RTC No
16-Bit A/D Converter (ch) 0
14-Bit A/D Converter (ch) 0
12-Bit A/D Converter (ch) 8
10-Bit A/D Converter (ch) 0
24-Bit Sigma-Delta A/D Converter (ch) 0
16-Bit D/A Converter (ch) 0
12-Bit D/A Converter (ch) 0
10-Bit D/A Converter (ch) (#) 0
8-Bit D/A Converter (ch) 0
Analog Comparator (ch) 0
OPAMP (ch) (#) 0
PGA (ch) 0
Capacitive Touch Sensing Unit (ch) 0
Graphics LCD Controller No
MIPI Interfaces (DSI) (ch) 1
MIPI Interfaces (CSI) (ch) 1
Camera I/F (Parallel) No
Image Codec H.264 enc/dec
2D Drawing Engine No
Segment LCD Controller No
SSI (ch) 4
Security & Encryption No
Debug Interface JTAG/SWD
Moisture Sensitivity Level (MSL) 3
Country of Assembly TAIWAN
Country of Wafer Fabrication KOREA
12-Bit Timer (ch) 0
32-Bit High Res Timer (ch) 0
ADC 12-bit x 8-ch
Asynchronous General Purpose Timer (ch) 0
Bit Size 64
CPU Cortex-A55 x 1 + Cortex-M33 x 1
DMA Yes
DTC (ch) 0
Delta-Sigma A/D Converter No
Ethernet 10/100M/1G x 2 ch
Family Name RZ
Group Name V2L
High-Speed Analog Comparator (ch) 0
Human Machine Interface Display Function, Video In
Lead Compliant Yes
Length (mm) 21
Longevity 2037 7月
Low-Power Analog Comparator (ch) 0
MIPI Interfaces (DSI/CSI) DSI/CSI-2
Pb (Lead) Free Yes
Pkg. Type LFBGA
Price (USD) $23.9174
Suggested Kits RZ/V2L-EVKIT
Tape & Reel No
Thickness (mm) 1.4
Timer 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 8-ch
USB USB2.0 x 2 ch (1H. 1H/F/OTG)
USBFS (ch) 1
USBHS (ch) 1
Width (mm) 21

描述

RZ/V2L配备 Arm® Cortex®-A55 (1.2 GHz) CPU 和内置 AI 加速器“DRP-AI”，以提供更好的机器视觉处理性能，这是瑞萨电子的独创技术。 “DRP-AI” 由 DRP 和 AI-MAC 组成。 它还配备一个 16 位的 DDR3L/DDR4 接口，具备内置 Arm Mali-G31 的 3D 图形引擎和视频编解码器 (H.264)。

DRP-AI 的卓越功率效率使其无需采取散热措施（如散热器或冷却风扇）。 人工智能不仅可以在消费类电子产品和工业设备中经济高效实施，还可以在零售点 (POS) 终端等广泛的应用中实施。 此外，DRP-AI 还提供实时人工智能推理和图像处理功能，具有支持摄像头所必需的功能，如颜色校正和降噪。 这使得客户无需外部图像信号处理器 (ISP)，即可实施基于人工智能的视觉应用。

RZ/V2L 还与 RZ/G2L 封装和引脚兼容。 这使得 RZ/G2L 用户可轻松升级至 RZ/V2L，以获得额外的人工智能功能，而无需修改系统配置，从而保持低迁移成本。
