概览
描述
特性
- Dedicated View for Easy Settings of LCD Panel Timing
- Easy Slider-Based Adjustment of Image Quality Settings
- Check the Settings on the Actual Display
- Generate a Header File Which Reflects the Settings for Use in Projects
- Learn More
发布信息
| Product Name | Latest Ver. | Released | Target Device(Note1) | Details | Download(Note2) | Operating Environment |
|---|---|---|---|---|---|---|
| QE for Display[RZ] | V3.1.1 | 2020/04/07 | RZ Family | See Release Note | Download | Operating Environment |
| QE for Display[RX,RA] | V3.6.0 | 2025/07/01 | RA Family | See Release Note | Download | |
| RX Family | ||||||
| QE for Display[RX] Standalone Version | V3.4.0 | 2024/10/22 | RX Family |
Note
- For detailed support devices, refer to "Target Devices".
- For the plug-in version of QE for Display[RZ] and QE for Display[RX,RA], refer to "Installing this Product".
目标设备
下载
精选
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 软件和工具 - 软件 | ZIP 201.86 MB 日本語 | |
| 软件和工具 - 软件 | ZIP 2.71 MB 日本語 | |
| 软件和工具 - 其他 | ZIP 3.60 MB 日本語 | |
| 软件和工具 - 其他 | ZIP 1.69 MB 日本語 | |
4 项目
|
||
设计和开发
样例程序
样例程序
筛选
|
||
|---|---|---|
| 类型 | 文档标题 | 日期 日期 |
| 示例代码 |
[Software=RZ FreeRTOS Software Package|v3.40],[Toolchains=GNU Arm Embedded|V12.2.Rel1;IAR Compiler for Arm|v.9.40.2]
ZIP
176.70 MB
应用:
工业, 消费电子产品
Compiler:
GNU ARM Embedded, ICCARM
Function:
Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
IDE:
e2 studio, IAR EWARM
|
|
| 示例代码 |
[Software=RX Driver Package|V1.47],[Toolchains=CC-RX|V3.07.00;GNURX|8.3.0.202411;ICCRX|5.10.1]
ZIP
2.45 MB
Compiler:
CC-RX, GNURX, ICCRX
Function:
Driver or Library
IDE:
CS+ for CC, e2 studio, IAR EWRX
|
|
| 示例代码 | ZIP 6.39 MB 日本語 | |
| 示例代码 | ZIP 55.98 MB 日本語 | |
| 示例代码 | ZIP 2.93 MB 日本語 IDE: e2 studio | |
5 项目
|
||
相关评估板和套件
评估
EK-RA6M3G
有效
RA6M3 MCU 群组的图形评估套件
EK-RA6M3G 评估套件可通过灵活配置软件包 (FSP) 和 e2 studio 开发环境，帮助用户对RA6M3 MCU 群组的特性进行无缝评估，并对嵌入系统应用程序进行开发。用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实。
EK-RA6M3G套件包括两块板：EK-RA6M3板，该板具有带片上图形LCD控制器的RA6M3 MCU，以及图形扩展板，该板具有带电容式触摸功能的4.3英寸TFT彩色液晶屏。
入门
运行快速入门示例项目
- EK-RA6M3G...
评估
EK-RA8D1
有效
RA8D1 MCU 群组评估套件
EK-RA8D1 评估套件可通过瑞萨电子的灵活软件包 (FSP) 和 e2 studio IDE，帮助用户轻松评估 RA8D1 MCU 产品组的特性，并开发嵌入式系统应用程序。 用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实。
EK-RA8D1 套件由三块板组成：EK-RA8D1 板采用 RA8D1 MCU 和片上图形 LCD 控制器，MIPI 图形扩展板采用 4.5 英寸 TFT 彩色 LCD (480 x 854)，带电容式触摸覆盖层，而摄像头扩展板则采用 300 万像素 CMOS 图像传感器。
入门
运行快速入门示例项目
- EK-RA8D1...
入门
Renesas Starter Kit+ for RX65N-2MB
The Renesas Starter Kit+ for RX65N-2MB is the perfect starter kit for developers who are new to the RX65N (Code Flash 2MB, Pin Count 176-pin). The kit includes an LCD display module, on-chip debugging emulator, and integrated development environment so you can start evaluating the RX65N...
评估
RX65N Envision Kit
The Envision Kit allows quick and easy evaluation of the RX65N microcontrollers group, which is an excellent choice for your next low cost HMI (Human Machine Interface) project. Moreover the RX65N Envision Kit allows you to experience, through pre-installed demos, firmware updating using the new...
入门
Renesas Starter Kit+ for RX72N
Renesas Starter Kit+ for RX72N is the perfect starter kit for getting started with RX72N (code flash 4MB, pin number 224-pin). LCD display module and on-chip debugging emulator are attached. The integrated development environment is provided on Renesas Web, so you can start evaluating the RX72N...
评估
RX72N Envision 套件
配备 32 位微机 RX 系列旗舰 RX72N，可使用 LCD 创建 GUI，还可进行语音输入/输出等 HMI 开发和 Wi-Fi/BLE、以太网等的物联网设备开发。 安装预装演示和仿真器电路后，您即可立即体验开发过程。
演示固件
通过预装的固件更新功能，可将固件写入 microSD 卡进行更新。 此外，最新版本的固件和源代码发布在 GitHub 站点上。
远程测试该板卡
该板卡已上线云上实验室（Lab on the Cloud)，使用我们的 PC 图形界面，无需实体板卡，便可在虚拟实验室中立即开始配置和测试设计。
评估
EK-RA8P1
有效
RA8P1 MCU 群组评估套件
EK-RA8P1 评估套件旨在用户能够轻松评估 RA8P1 MCU 功能，并使用瑞萨电子的灵活配置软件包 （FSP） 和 e2 studio IDE 开发嵌入式系统应用程序。 用户可以利用丰富的板载功能和选择常用的生态系统附加组件来实现广泛的应用程序，包括人工智能 （AI） 和物联网 （IoT）。 为用户提供了一套示例项目包可供下载，能快速评估关键外设性能，从而加速概念验证开发进程。
该套件包含一个 7.0 英寸、1024x600 并行接口 LCD 板和一个 5百万像素摄像头模块。 套件中预装了展示 RA8P1 卓越性能的演示。 将 LCD 板和摄像头模块与 EK-RA8P1...
探索
视频和培训
QE for Display[RX,RA] Tutorial: How to Prepare a Project
In this video, we will show you how to create a new project and the procedure for workflow step 1: preparation in QE for Display [RX,RA].
Related Videos
Video List
Additional Details
Features

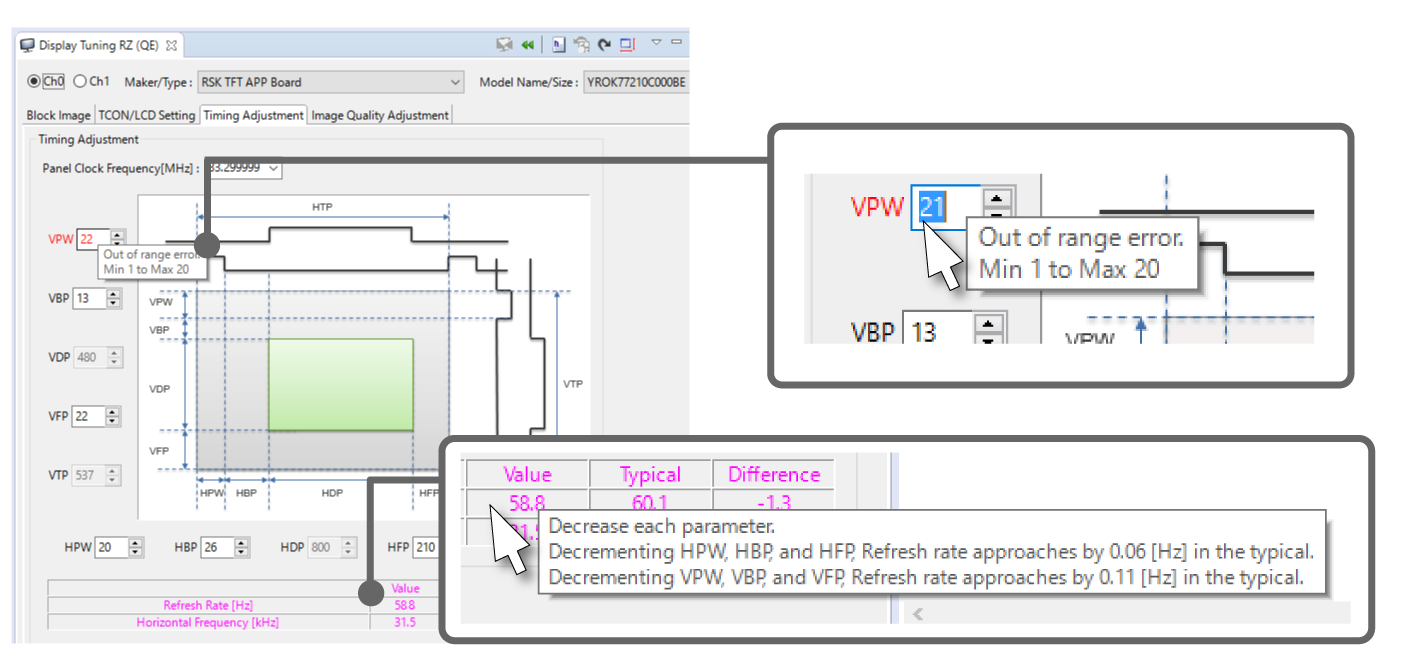

Dedicated View for Easy Settings of LCD Panel Timing
Timing settings which match the refresh rate specification of the display are easy to obtain while checking the results on the actual display. Settings that are not in accord with the requirements of the LCD spec. are marked as being in error, so the user is easily able to identify problems.
(refer to the Note1)
图像

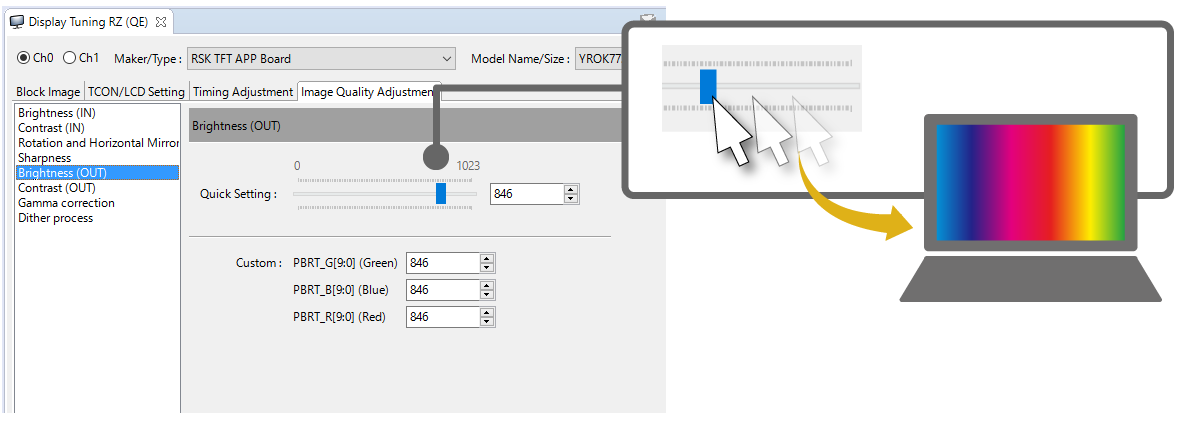

Easy Slider-Based Adjustment of Image Quality Settings
This tool supports various functions for adjusting image quality. You can easily adjust the images while checking the actual display. QE for Display[RZ] supports the adjustment of brightness, contrast, sharpness, gamma correction, and dithering, as well as the rotation and mirroring of images. QE for Display[RX] supports processing to make the settings in a sequence of processing through settings for calibration, brightness, contrast, gamma correction, and then dithering.
(refer to the Note1)
图像

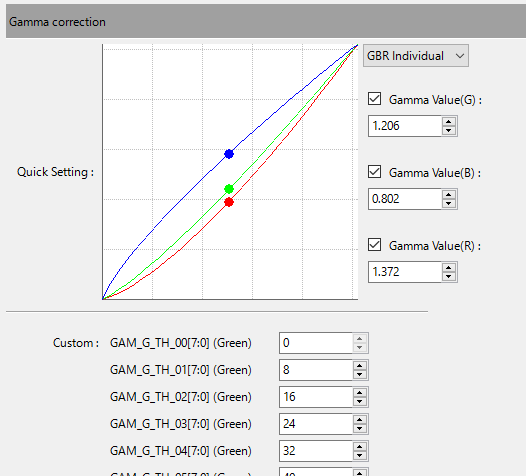

The dedicated GUI makes setting complex gamma correction easy.
图像
Checking the handy block diagram helps you to move around the settings screen without becoming confused.
(refer to the Note1)
图像
Check the Settings on the Actual Display
A single button press writes the current settings to registers, so you can check the results on the actual LCD panel. This tool also has a mode for automatically writing the changes to registers every time a setting is changed.
图像
Generate a Header File Which Reflects the Settings for Use in Projects
When you have finished the settings, the settings corresponding to those in the GUI display are created in a header file for direct incorporation in projects. QE for Display can also operate in conjunction with the Supported Sample Programs.
图像
Note
- The screenshots are from the version for the RZ family.
Support for two types of graphics library and creation of rich GUI windows
The emWin graphics library and AppWizard from SEGGER can be used to create GUIs for the devices of the RX or RA family equipped with a graphics LCD controller (GLCDC). CRI Aeropoint® GUI and Microsoft PowerPoint® can be used to create GUIs for the devices of the RX family equipped with a GLCDC.
Devices of the RX family without a GLCDC can display a GUI on an LCD through a serial connection. To create a GUI in such cases, use the emWin graphics library and AppWizard from SEGGER.
| Device | GLCDC | GUI library/middleware | Supported devices |
|---|---|---|---|
| RA Family | ✓ | emWin | RA6M3, RA8D1, RA8E2, RA8P1 |
| RX Family | ✓ (Note2) | emWin Aeropoint® GUI | RX651 (ROM size: 1.5 MB to 2 MB), RX65N (ROM size: 1.5 MB to 2 MB), RX66N, RX72M (100-pin products not supported), and RX72N |
| — (Note3) | emWin | RX110 RX111 RX113 RX130 RX13T RX140 RX210 RX231 RX23E-A RX23W RX24T RX24U RX261 RX26T RX64M RX651 RX65N RX660 RX66N RX66T RX671 RX71M RX72M RX72N RX72T |
Note
2. RX Family QE for Display [RX] Application Note
3. RX Family QE for Display GUI Display Application Development Guide using Serial Connection LCD
Supported Sample Programs
| Product Name | Sample Program |
|---|---|
| QE for Display[RZ] | RZ/A Software Development Kit RZ/A1H FreeRTOSSoftware Package, RZ/A1LU FreeRTOSSoftware Package, RZ/A2M FreeRTOSSoftware Package |
Supported Driver and Middleware
The FIT modules listed in the table below are available for use with QE for Display[RX] and drivers can be added and pin functions assigned in cooperation with the Smart Configurator. For details, refer to the help information on QE for Display[RX].
| Device | Driver | Version |
|---|---|---|
| RA Family | SEGGER emWin Port Flexible Software Package(FSP) component for RA Family Module name: rm_emwin_port | v6.0.0 |
| Graphics LCD Controller Flexible Software Package(FSP) component for RA Family Module name: r_glcdc | v6.0.0 | |
| RX Family | RX Family emWin v6.34 Module Using Firmware Integration Technology Module name: r_emwin_rx | v1.20 |
| RX Family Aeropoint Module Using Firmware Integration Technology Module name: r_aeropoint_rx | v1.00 | |
| RX Family Graphic LCD Controller Module Using Firmware Integration Technology Module name: r_glcdc_rx | v1.60 | |
| RX Family QE for Display Module Using Firmware Integration Technology Module name: r_qe_display_rx | v1.10 |
