RZ/G Multi-OS Package

软件包

RZ/G Multi-OS Package V3.0.0Renesas RZ/G Flexible Software Package (FSP) Documentation (Web version - HTML)RZ/G FSP Packs v3.1.0Getting Started with Flexible Software Package

概览

download Download Latest Multi-OS Package:

RZ/G Multi-OS Package V3.0.0 (ZIP)

RZ/G Multi-OS Package is the software package consisting of RZ/G Flexible Software Package (FSP) as software package for Renesas MCU with Arm® Cortex-M Core and OpenAMP as standardization API of framework for interprocessor communication for developing multi OS solution.
Please refer to the following document to learn how to use this software package.

The below documents are start-up guides.

For Flexible Software Package (FSP), please refer to the following.

FSP Platform Installer (Includes e² studio IDE, toolchain, and FSP packs):

FSP Standalone Installer (FSP packs for the users who only update the FSP and no e² studio update):

  • Download from the Assets section of the GitHub

The installation instructions can be found here. All the FSP Releases and Patches can be found on GitHub.

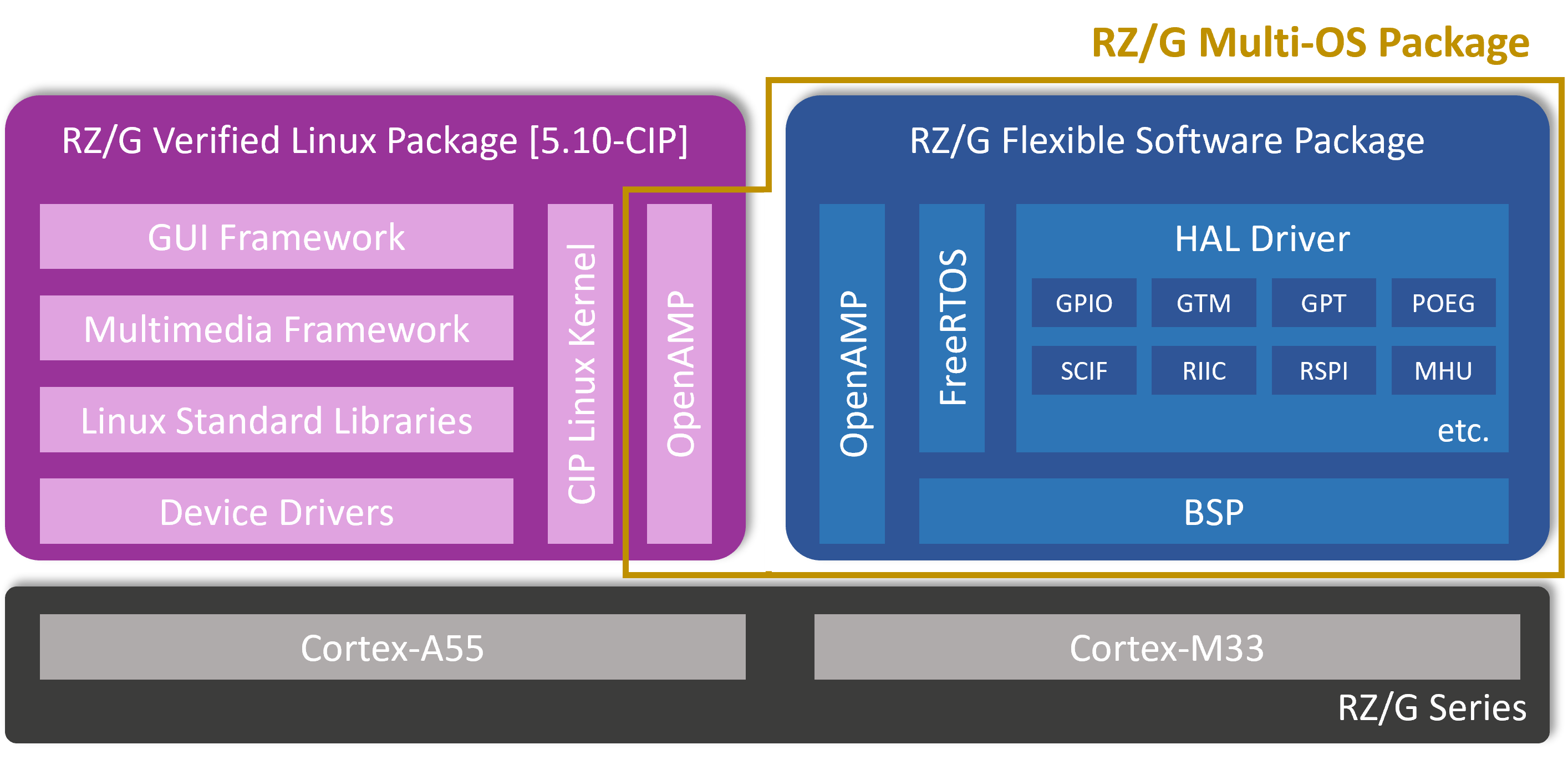

RZG multi-os package system architecture
  • Small memory footprint HAL driver.
  • Configurator / Code generator that can be operated intuitively.
  • Communication between CA55 and CM33 by OpenAMP.

Scheduled release date

  • Dec 31, 2025

Update log

  • Jul 22, 2025 Flexible Software Package v 3.1.0 and Multi-OS Package v 3.0.0
  • Apr 16, 2025 RZ/G Multi-OS Package V2.3.0
  • Apr 26, 2024 RZG Flexible Software Package Documentation
  • Apr 24, 2024 RZ/G MULTI-OS Package V2.0.2
  • Feb 29, 2024 RZ/G FSP Example Projects V2.00
  • Feb 16, 2024 RZ/G FSP(v2.0.1)
  • Feb 16, 2024 RZ/G MULTI OS Package V2.0.1
  • Jan 9, 2024 RZ/G FSP(V2.0) with e2 studio 2024-01 installer for windows
  • Nov 30, 2023 RZ/G FSP Example Projects V1.00
  • Oct 31, 2023 RZ/G2L MULTI OS Package V1.22
  • Apr 28, 2023 RZ/G2L MULTI OS Package V1.21
  • Nov 18, 2022 RZ/G2L MULTI OS Package V1.2
  • Nov 18, 2022 RZ/G2L FSP(V1.2) with e2 studio 2022-04 installer for windows
  • Sep 7, 2022 RZ/G2L Multi-OS Package V1.12
  • May 30, 2022 RZ/G2L Multi-OS Package V1.11
  • Apr 27, 2022 RZ/G2L Multi-OS Package V1.10
  • Apr 27, 2022 RZ/G2L FSP(v1.10) with e2 studio 2022-04 installer for Windows
  • Jan 21, 2022 RZ/G2L Multi-OS Package V1.02
  • Nov 30, 2021 RZ/G2L Multi-OS Package V1.01
  • Jul 30, 2021 RZ/G2L Multi-OS Package V1.00
  • Jul 30, 2021 RZ/G2L FSP(v1.00) with e2 studio 2021-07 installer for Windows

下载

精选
类型 文档标题 日期
软件和工具 - 软件
RZ/G Multi-OS Package V3.0.0
ZIP 28.45 MB
相关文件：
软件和工具 - 软件
RZ/G FSP Packs v3.1.0
EXE 43.80 MB
2 项目

文档

设计和开发

样例程序
类型
文档标题
日期
示例代码
RZ/G FSP Example Projects
ZIP 3.62 MB Function: Application Example
相关文件：
1 项目

视频和培训

How to Check Pin Confliction between RZ FSP Project and Linux Project

This video explains how to check for pin conflicts between the RZ FSP project and the Linux project.

Chapter's Title

00:00 Opening
00:06 Introduction
00:45 Pin Configuration for Linux Project
01:39 Check Pin Confliction Between RZ FSP Project and Linux Project

Related Resources

Video List
How to Check Pin Confliction between RZ FSP Project and Linux Project

新闻和博客

博客
2021年11月18日
Solution for BOM Cost Reduction of the RZ/G2L MPU

Operating Environment

Integrated development environmente2 studio Integrated Development Environment, default toolchain is GCC Arm Embedded
Supported boardsRZ/G2L Evaluation Board Kit
RZ/G3S Evaluation Board Kit
RZ/G3E Evaluation Board Kit
EmulatorSEGGER (J-Link Series) *1
  1. Please do not update J-Link Firmware beyond version 7.96e, as we have only confirmed RZ/V FSP’s correct functionality with v7.96e.

Supported Devices

Multi-OS PackageVerified Linux PackageFlexible Software PackageSupported Devices
V3.0.0V3.0.7 [5.10-CIP]
V4.0.0 [6.1-CIP]		V3.1.0RZ/G2L, RZ/G2LC, RZ/G2U
RZ/G3S, RZ/G3E

RZ/G Flexible Software Package v3.1.0 Supported Driver Software

CategoryFunctionRZ/G2LRZ/G2LCRZ/G2ULRZ/G3SRZ/G3E
OSFreeRTOS
MiddlewareOpenAMP
Sensor modules (rm_comms_i2c, rm_zmod4xxx)
HAL DriverADC (r_adc_c)
Please use below
r_adc_e
CANFD (r_canfd)
CMTW (r_cmtw)
CRC (r_crc)
DMAC (r_dmac_b)
ELC (r_elc)
GPT (r_gpt)
GTM (r_gtm)
I2C Master (r_riic_master)
I2C Slave (r_riic_slave)
I3C (r_i3c_b)
INTC  IRQ (r_intc_irq)
INTC NMI (r_intc_nmi)
INTC TINT (r_intc_tint)
MHU (r_mhu_ns, r_mhu_s, r_mhu_ns_swint_get, r_mhu_ns_swint_set)
Please use below
r_mhu_b_ns, r_mhu_b_s, r_mhu_b_ns_swint_get, r_mhu_b_ns_swint_set
MTU3 (r_mtu3)
PDM (r_pdm)
POEG (r_poeg)
RSPI (r_rspi)
RTC (r_rtc)
SCI (r_sci_uart)
Please use below
r_sci_b_i2c, r_sci_b_spi, r_sci_b_uart
SCIF (r_scif_uart)
SPI (r_spi_b)
TSU (r_tsu_b)
WDT (r_wdt)
xSPI QSPI (r_xspi_qspi)
