PG-FP6

infoAdditional Details

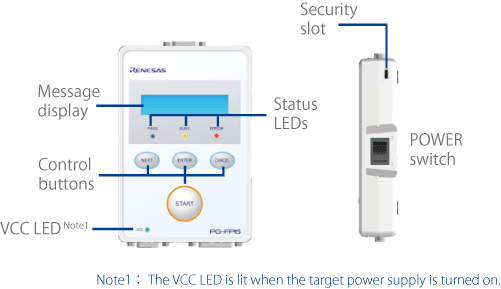

Control panel suitable for stand-alone operation

图像

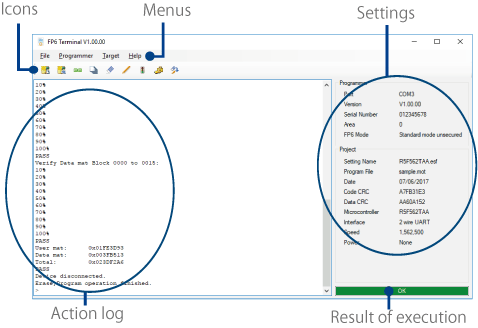

User-friendly GUI (FP6 Terminal)

图像

Security Enhancement against theft of program files and the PG-FP6 main unit

The following three features are added to enhance security against theft of program files and the PG-FP6 main unit.

• Encryption of program files
• Saving of encrypted files in the PG-FP6 main unit
• Simultaneous decryption and writing in the PG-FP6

The program file encryption function can be run by using the encryption utility program (RPE.exe) from the command line. The file is among those installed by the FP6 Terminal installer.

图像

Major Functions

• Stand-alone programming
• PC-controlled programming using dedicated GUI (FP6 Terminal）
• Up to 8 savable programming environments
• Optimized for production line programming (command control or remote control)
• Programming a unique code to a designated area of flash memory
• Function to control PG-FP6 main unit (prohibiting uploading and setup)
• Encryption of program files
• Saving of encrypted files in the PG-FP6 main unit
• Simultaneous decryption and writing in the PG-FP6
• Simultaneous selection of multiple program files
• Gang programming

High Compatibility with the Predecessor

Designed with compatibility with the predecessor PG-FP5 in mind for smooth migration.

• Setup files created with the PG-FP5 can be imported
• Support of PG-FP5-enabled MCUs
  (For the V850 and 78K family, only MCUs with single-power-supply flash memory is supported.)
• The same specifications of control buttons, message display, and status LEDs
• The same specification of connector layout
• Connectable to boards designed by using the PG-FP5
• Pursuing programming GUI compatibility

*Function and performance comparisons with the PG-FP5 (Learn More >>)

Specifications

Notes：

1. Connecting to the host PC has to use a cross cable.
2. The maximum power-supply current is 100 mA when USB bus power is being supplied; however, this depends on the performance of the USB host in terms of the supply of power.
3. The power adapter that comes with the PG-FP6 varies with the region where it is to be used. For the product type names, see Ordering Information.

Components

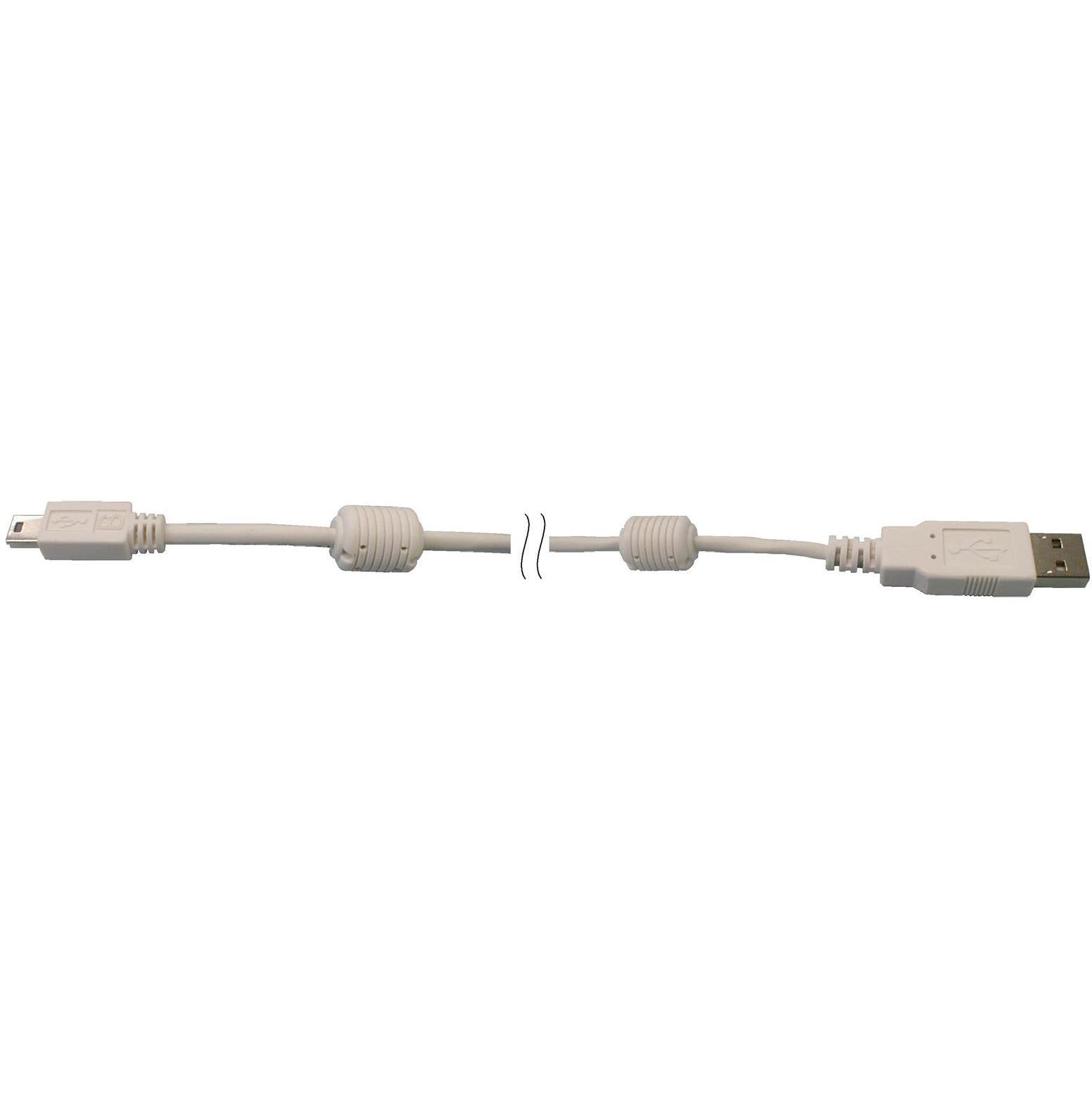

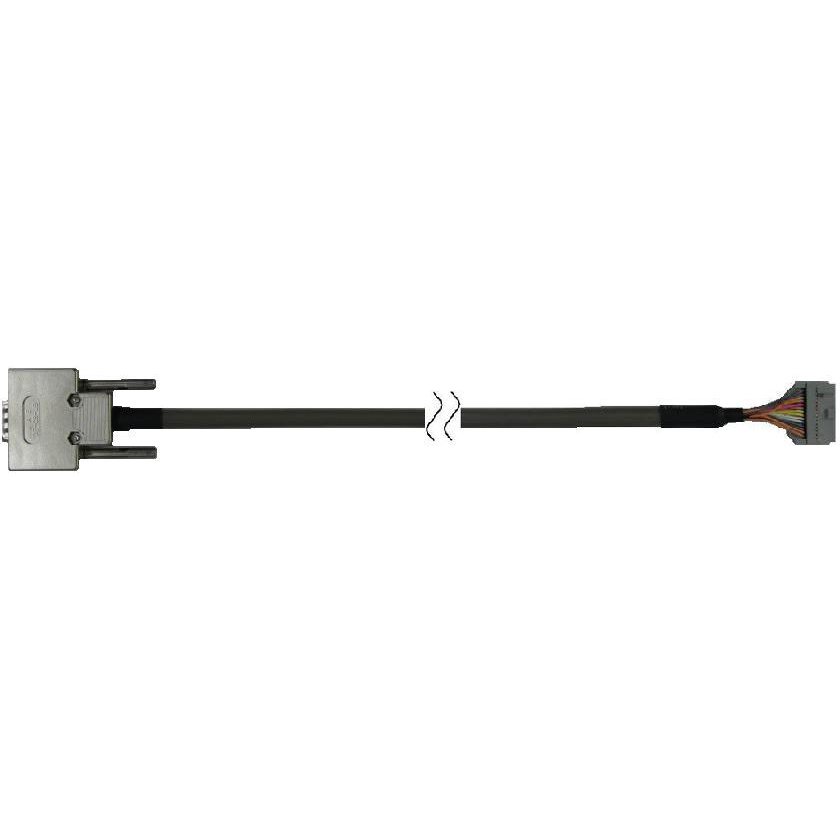

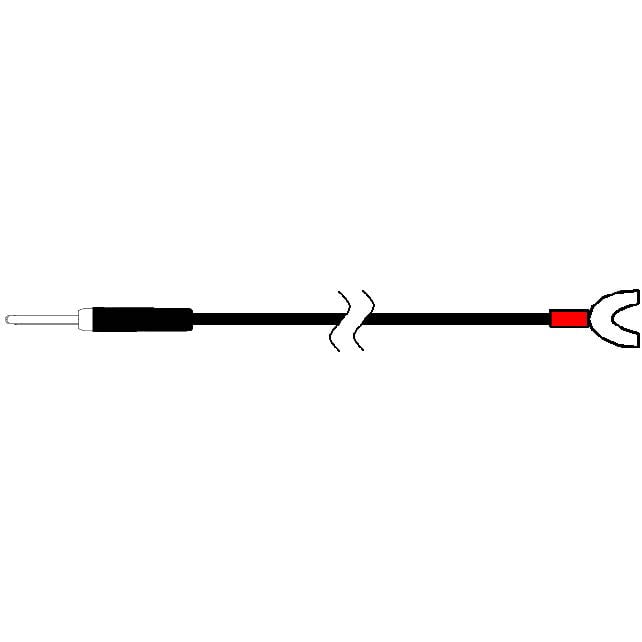

PG-FP6	GND cable	USB cable	Target cable (14-pin)	Power supply adapter
图像	图像	图像	图像	图像

Notes:

1. The regulations with which the PG-FP6 conforms and plug shape vary depending on regions where the order is made.  See Power supply adapter. >>
2. Conversion Adapters or Cables are provided as optional products.  See optional products. >>
3. Programming GUI, FP6 Terminal, is available here for download.

Ordering Information

Notes:

1. Since regulations that apply to the PG-FP6 vary with the region, we cannot ship a product to a region other than that from which the order was made. For example, if you place an order in Japan, you cannot purchase a product intended for Europe and the USA. Please purchase the product from a Renesas Electronics Corporation representative (responsible for sales) or distributor in the region where it is to be used.
2. If you wish to know which model is available in a region not included in the above table, please contact either a Renesas Electronics Corporation representative (responsible for sales) or distributor.
3. The power adapter that comes with the PG-FP6 complies with the regulations that are applicable in the target region. Its plug is also in the shape that is usable in that region.

Power Supply Adapter

The PG-FP6 includes a power supply adapter which conforms with the regulations and plug shapes in the region where the order is made.

Region	Plug Shape				Voltage
Japan	图像 A				AC: 100-240V Note1
Europe	图像 SE	图像 C	图像 BF	图像 A
USA
China
Hong Kong
Chinese Taipei
South Korea
Singapore

Note:

1. This is the range of voltages that the power-supply adapter can support. For the actual voltage through the power-supply cable, check the indication often be at the end of the casing for the plug.

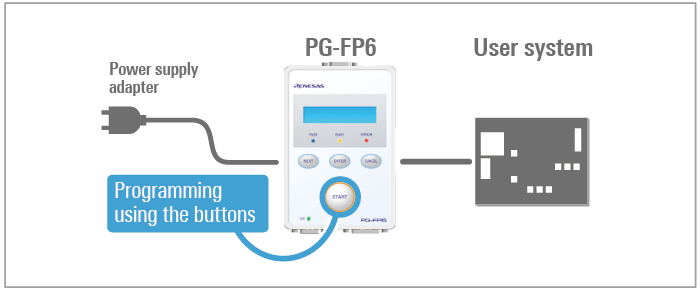

Stand-alone (off-line) programming

图像

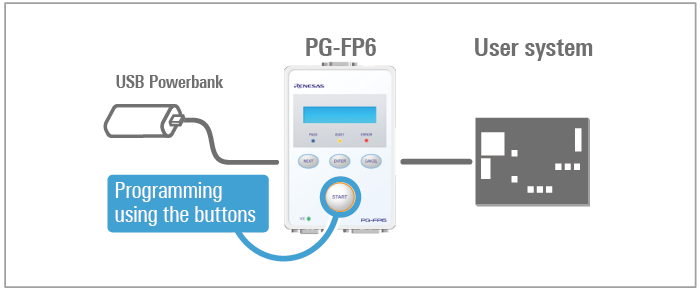

Field programming

图像

Production line programming

图像

PC programming

图像

Following optional products are provided to facilitate the use of the PG-FP6.

• Conversion Adapter
  • 20-Pin Conversion Adapter for the PG-FP6 [RTE0T00001FWRB0000R]
  • 14-Pin to 16-Pin Conversion Adapter for the E1 Emulator  [QB-F14T16-01]
• Converter Cable
  • User-system Interface Cable for the E2 Emulator (20-10 pins) [RTE0T00020KCAC1000J]
• Cable
  • User-system Interface Cable for the E2 Emulator (20-20pins) [RTE0T00020KCAC0000J]

Conversion Adapter

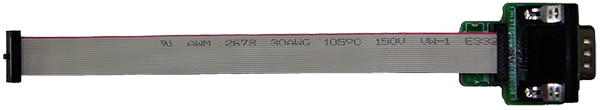

20-Pin Conversion Adapter for the PG-FP6 [RTE0T00001FWRB0000R]

This adapter is used for converting the 15-pin D-sub connector^Note1 to be connectable to the 20-pin CoreSight connector. The adapter comes with a 20-pin CoreSight cable (approximately 150-mm long).

Purpose: Programming RA- or RE-family MCUs on boards which have 20-pin CoreSight connectors.

Note:

1. The target connecter on the PG-FP6.

图像

20-Pin Conversion Adapter for the PG-FP6

14-Pin to 16-Pin Conversion Adapter for the E1 Emulator  [QB-F14T16-01]

QB-F14T16-01 User's Manual (14-Pin to 16-Pin Conversion Adapter for E1 Emulator) (PDF)

This adapter converts the 14-pin, 2.54-mm pitch connector of the target cable to be connectable to the 16-pin, 2.54-mm pitch connector of the PG-FP5 or MINICUBE2.

Purpose: Programming 78K- or V850-family MCUs on boards which have 16-pin connectors.

图像

Converter Cable

User-system Interface Cable for the E2 Emulator (20-10 pins) [RTE0T00020KCAC1000J]

RTE0T00020KCAC1000J User's Manual User-system Interface Cable for the E2 Emulator(20-10 pins) (PDF | English, 日本語)

This cable is used for converting a CoreSight 20-pin connector to fit a CoreSight 10-pin connector, and is available for separate purchase. Use this conversion cable (approximately 150-mm long) along with the 20-pin conversion adapter for the PG-FP6.

Purpose: Programming RA- or RE-family MCUs on boards which have 10-pin CoreSight connectors.

图像

Cable

User-system Interface Cable for the E2 Emulator (20-20pins) [RTE0T00020KCAC0000J]

RTE0T00020KCAC0000J User's Manual User-system Interface Cable for the E2 Emulator (20-20 pins) (PDF | English, 日本語)

This 20-pin CoreSight cable (approximately 150-mm long) is available for separate purchase. This cable also comes with the 20-pin conversion adapter for the PG-FP6.

Purpose: For use when, for example, the cable that comes with the product is damaged.

图像
