概述
描述

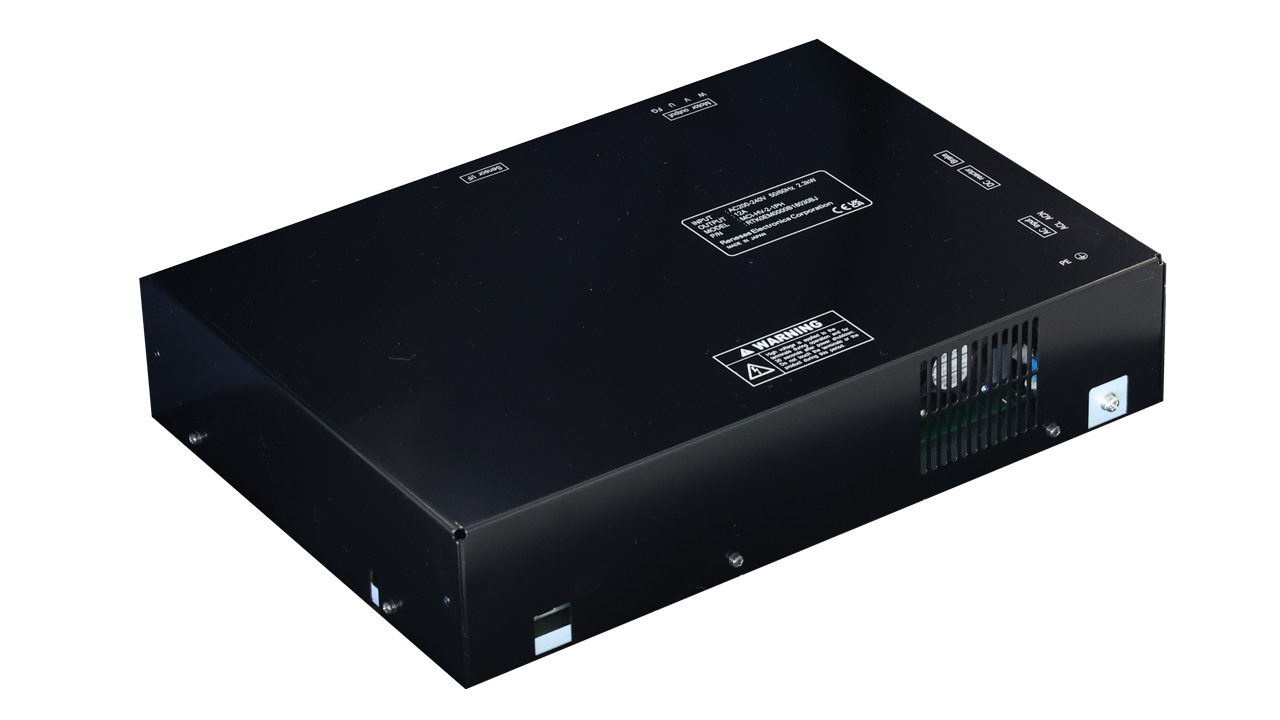

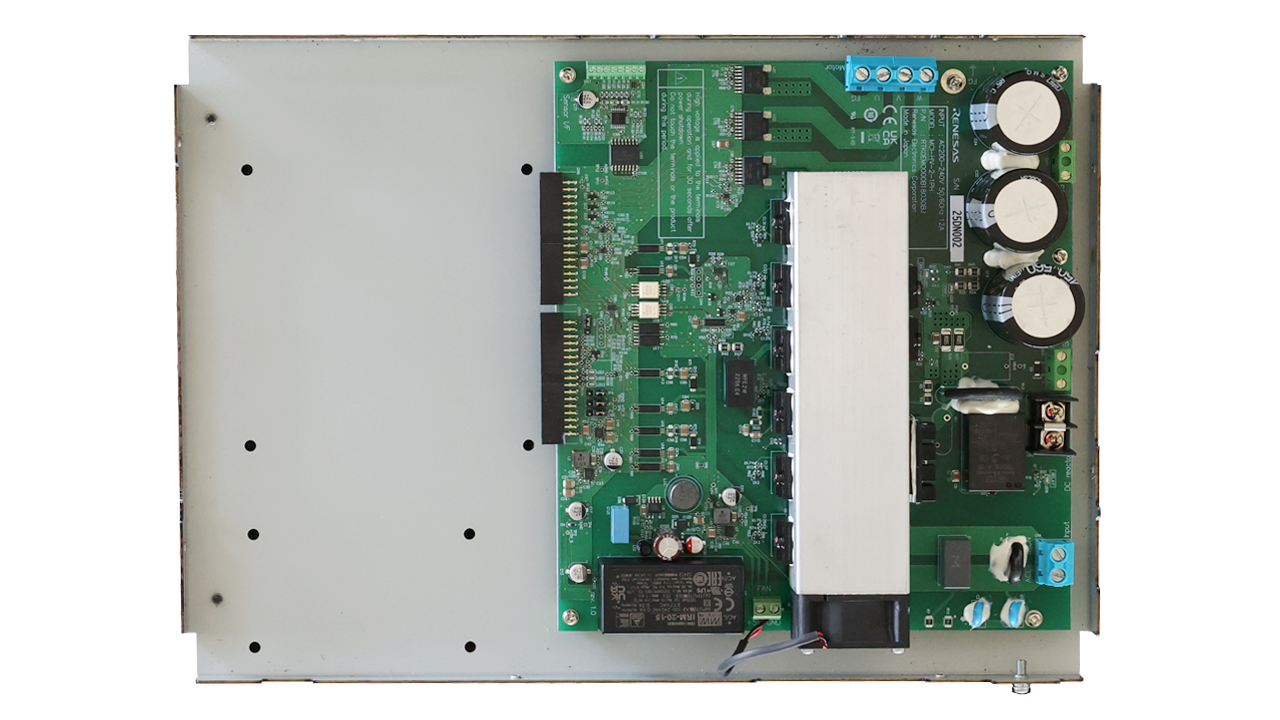

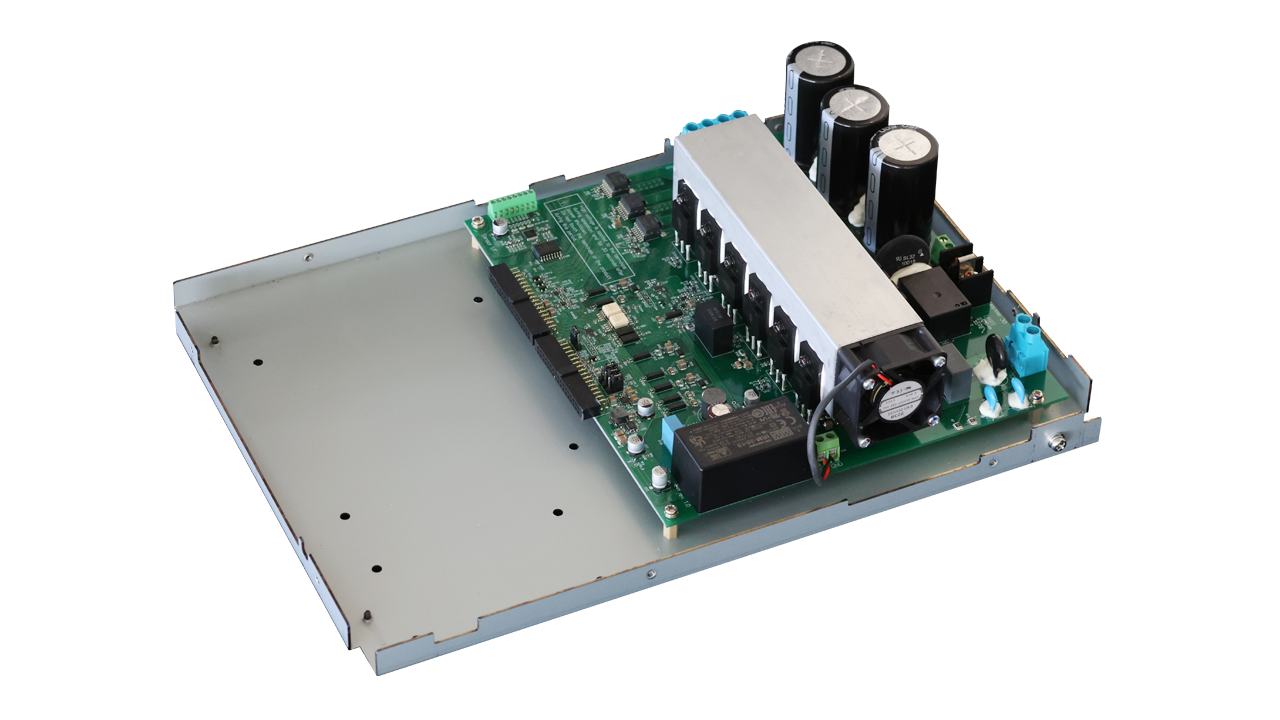

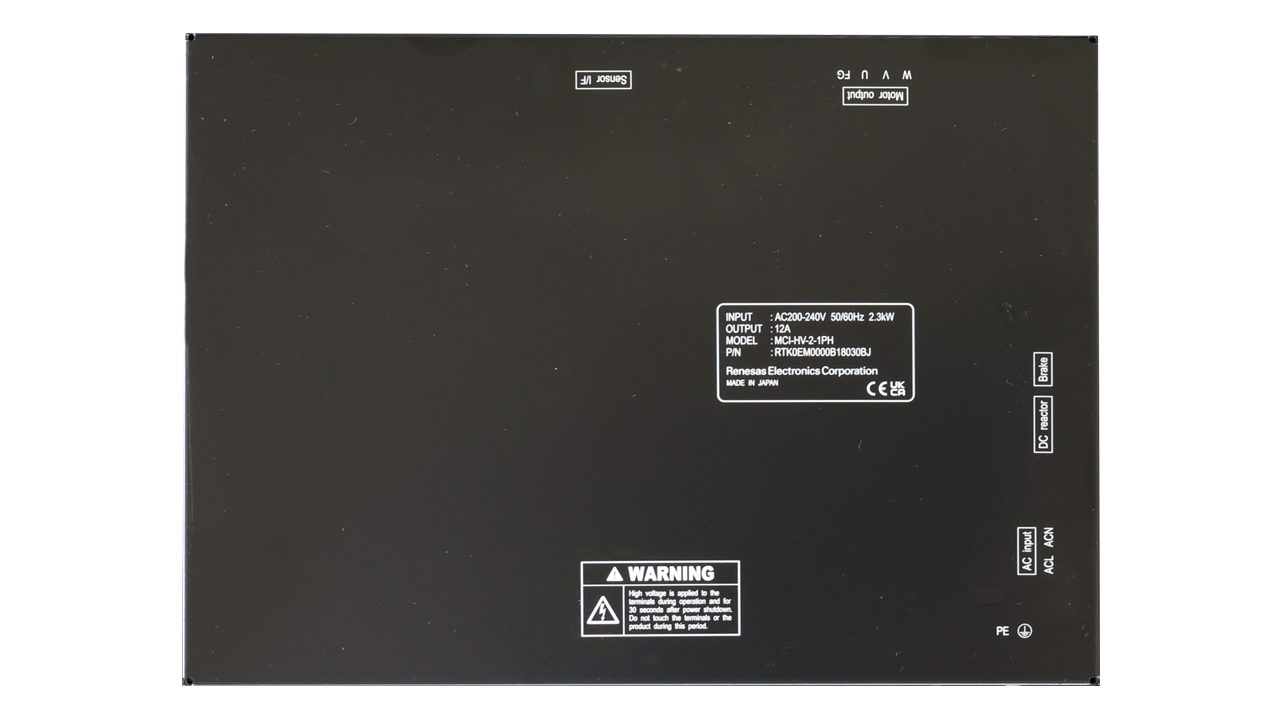

An inverter board that allows users to evaluate motor control with ease using a high-voltage brushless DC (BLDC)/induction motor. By combining with a compatible CPU board, users can immediately start evaluating motor control.
This product supports only 1-phase AC200 - 240V 50Hz/60Hz input voltage.
Supported CPU boards: MCB-RA6T2 and MCB-RX26T-TYPE-A
Supported communication board: MC-COM
特性
- Supports overcurrent detection, overvoltage protection, over-temperature detection.
- Reinforced isolation between high-voltage domain and user interface domain
- Supports 3-phase current inline sensing
- Supports Hall sensor and encoder signal input with reinforced isolation
应用
文档
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 手册 - 开发工具 |
PDF
1.62 MB
日本語
MCI-HV-2-1PH is a motor control evaluation inverter kit. Motor control can be performed easily by using this product with the Renesas CPU board and communication board. This manual includes essential information for using the board, such as specifications, functional block diagrams, layouts, and jumper settings. It also provides details necessary for software design, including function descriptions and pin assignment information for interface connectors.
|
|
| PCB 设计文件 |
ZIP
978 KB
The design files for the MCI-HV-2-1PH include the schematic, BOM lists, and Gerber data for the board layout. These files are essential for board design and manufacturing, enabling a more detailed evaluation of the board.
|
|
| 应用说明 |
PDF
2.26 MB
日本語
This sample program support Renesas CPU boards (MCB-RX26 Type A and MCB-RA6T2) and industrial high voltage inverter boards (MCI-HV-2-1PH )and MCI-HV-2-3PH). It provides the functions such as V/f control, torque boost compensations, Dead-time (voltage error) compensation, sample delay compensation, Control of the relay for connecting the inrush-current prevention resistor, Protection against overvoltage and overcurrent, detection of overheating in the inverter.
|
|
3 项目
|
||
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | 瑞萨电子 |
1 项目
|
||
样例程序
样例程序
筛选
|
||
|---|---|---|
| 类型 | 文档标题 | 日期 日期 |
| 示例代码 | IM V/f Control by High-Voltage Inverter
[Software=RA Flexible Software Package|v6.1.0],[Toolchains=CC-RX|V3.07.00;GNU Arm Embedded|13.2.1.arm-13-7]
ZIP
12.33 MB
日本語
应用:
工业, 电机控制
Compiler:
CC-RX, GNU ARM Embedded
Function:
Application Example
IDE:
e2 studio
This sample program support Renesas CPU boards (MCB-RX26 Type A and MCB-RA6T2) and industrial high voltage inverter boards (MCI-HV-2-1PH )and MCI-HV-2-3PH). It provides the functions such as V/f control, torque boost compensations, Dead-time (voltage error) compensation, sample delay compensation, Control of the relay for connecting the inrush-current prevention resistor, Protection against overvoltage and overcurrent, detection of overheating in the inverter.
|
|
1 项目
|
||
相关评估板和套件
开发板与套件
Renesas Flexible Motor Control Kit for RA6T2 MCU Group
MCK-RA6T2 是一款便于评估使用永磁同步电机（无刷直流电机）的电机控制的开发套件。 通过使用本产品以及可从网站下载的样例程序和QE for Motor，即刻开始使用 RA6T2 进行电机控制评估。
Renesas Flexible Motor Control CPU Board for RA6T2 MCU Group
本产品是一款配备 RA6T2 的 电机控制 CPU 板。 将 RA6T2 与支持的逆变器板结合使用，可轻松使用 RA6T2 控制电机。
使用支持的通信板，将 CPU 板与 PC 电气隔离，以安全地进行电机控制评估和调试。
支持的逆变器板（套件）
- MCI-LV-1（部件编号： RTK0EM0000S04020BJ）
- MCI-HV-1（部件编号： RTK0EM0000B14030BJ）
- MCI-HV-2-3PH（部件编号：... 阅读详情
瑞萨电子 RX14T MCU 灵活电机控制 CPU 板
MCB-RX14T 是一款电机控制 CPU 板，采用 RX14T 48MHz 入门级 32 位 MCU。 通过将 MCB-RX14T CPU 板与支持的逆变器板结合使用，可以轻松实现使用 RX14T 的电机控制解决方案。 此外，将 MCB-RX14T CPU 板与支持的通信板搭配使用，可实现与 PC 的电气隔离，从而确保电机控制评估和调试的安全性。
Renesas Flexible Motor Control CPU Board for RX26T MCU Group
本产品是配备RX26T 的电机控制CPU板。 通过与对应的逆变板组合使用，可以简单地实现使用RX26T的电机控制。
通过将 PC 和 CPU 板进行电气隔离的通信板，实现安全的电机控制评估和调试工作。
- 支持的逆变板（套件）
MCI-LV-1 (P/N: RTK0EM0000S04020BJ) - 支持的通信板
MC-COM (P/N: RTK0EMXC90S00000BJ)
产品选项
| Part Number | Status | Stock | Budgetary Price (USD) | Sampleable |
|---|---|---|---|---|
| RTK0EM0000B18030BJ | Active | Out of Stock | 1u | $941.18 | N/A |
